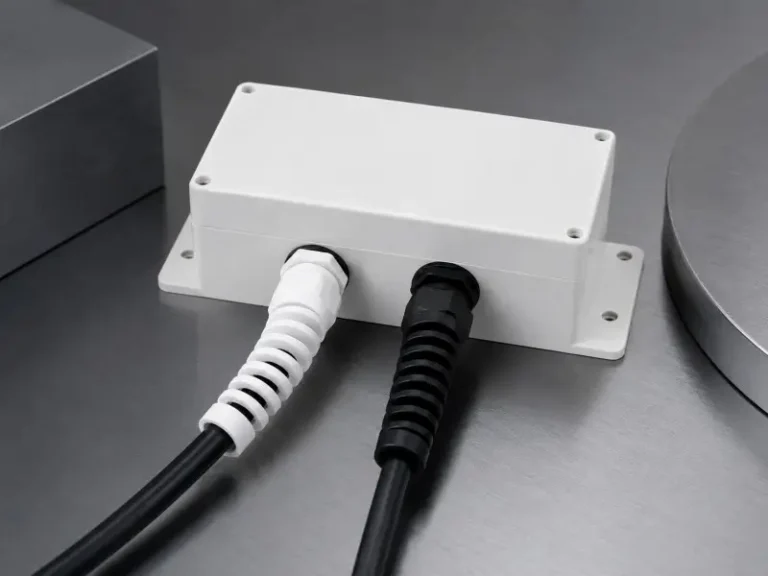

Nylon PA6 Flexible Waterproof Cable Gland
| Thread: | Metric, PG, G(PF), NPT thread |
| Body Material: | PA6 |
| Other Material: | NBR rubber for B.D. parts |
| Protection level: | IP68-10 Bar |
| Working temperature: | Static state:-40℃ to 100℃ Dynamic:-20℃ to 80℃ |
| Certificate | CE IP68 Rohs Reach |
| Model | Thread AG | Cable Range (mm) | Thread O.D (mm) | Length L1 (mm) | Spanner (mm) |
|---|---|---|---|---|---|
| PG7-NFL | PG7 | 3 - 6.5 | 12.5 | 8.5 | 17 / 15 |
| PG7L-NFL | PG7 | 3 - 6.5 | 12.5 | 15 | 17 / 15 |
| PG9-NFL | PG9 | 4 - 8 | 15.2 | 8.5 | 22 / 19 |
| PG9L-NFL | PG9 | 4 - 8 | 15.2 | 15 | 22 / 19 |
| PG11-NFL | PG11 | 6 - 10 | 18.6 | 10 | 24 / 22 |
| PG11L-NFL | PG11 | 6 - 10 | 18.6 | 15 | 24 / 22 |
| PG13.5-NFL | PG13.5 | 7 - 12.5 | 20.4 | 10 | 27 / 24 |
| PG13.5L-NFL | PG13.5 | 7 - 12.5 | 20.4 | 15 | 27 / 24 |
| PG16-NFL | PG16 | 8.5 - 14 | 22.5 | 10.8 | 30 / 27 |
| PG16L-NFL | PG16 | 8.5 - 14 | 22.5 | 15 | 30 / 27 |
| PG19-NFL | PG19 | 8.5 - 14 | 24 | 11 | 30 / 27 |
| PG21-NFL | PG21 | 12.5 - 18 | 28.3 | 12 | 36 / 33 |
| PG21L-NFL | PG21 | 12.5 - 18 | 28.3 | 15 | 36 / 33 |
| PG29-NFL | PG29 | 18 - 25 | 37 | 13 | 46 / 41 |
| PG29L-NFL | PG29 | 18 - 25 | 37 | 15 | 46 / 41 |
| Model | Thread AG | Cable Range (mm) | Thread O.D (mm) | Length L1 (mm) | Spanner (mm) |
|---|---|---|---|---|---|
| M12-NFL | M12 × 1.5 | 3 - 6.5 | 12 | 8.5 | 18 / 15 |
| M12L-NFL | M12 × 1.5 | 3 - 6.5 | 12 | 15 | 18 / 15 |
| M16-NFL | M16 × 1.5 | 4 - 8 | 16 | 10 | 22 / 19 |
| M16L-NFL | M16 × 1.5 | 4 - 8 | 16 | 15 | 22 / 19 |
| M18-NFL | M18 × 1.5 | 6 - 10 | 18 | 10 | 24 / 22 |
| M18L-NFL | M18 × 1.5 | 6 - 10 | 18 | 15 | 24 / 22 |
| M20-NFL | M20 × 1.5 | 7 - 12.5 | 20 | 10 | 27 / 24 |
| M20L-NFL | M20 × 1.5 | 7 - 12.5 | 20 | 15 | 27 / 24 |
| M22-NFL | M22 × 1.5 | 9 - 14 | 22 | 10 | 29 / 27 |
| M25-NFL | M25 × 1.5 | 12.5 - 18 | 25 | 10 | 33 |
| M25L-NFL | M25 × 1.5 | 12.5 - 18 | 25 | 15 | 33 |
| M32-NFL | M32 × 1.5 | 18 - 25 | 32 | 15 | 41 |
| Model | Thread AG | Cable Range (mm) | Thread O.D (mm) | Length L1 (mm) | Spanner (mm) |
|---|---|---|---|---|---|
| G1/4-NFL | G1/4 | 4 - 8 | 13.157 | 9 | 19 |
| G3/8-NFL | G3/8 | 6 - 10 | 16.662 | 10 | 22 |
| G1/2-NFL | G1/2 | 7 - 12.5 | 20.955 | 10 | 27 / 24 |
| G3/4-NFL | G3/4 | 12.5 - 18 | 26.441 | 12 | 33 |
| G1-NFL | G1 | 18 - 25 | 33.200 | 13.5 | 42 / 41 |
| Model | Thread AG | Cable Range (mm) | Thread O.D (mm) | Length L1 (mm) | Spanner (mm) |
|---|---|---|---|---|---|
| NPT1/2-NFL | NPT1/2 | 7 - 12.5 | 20.955 | 10 | 24 |
| NPT3/8-NFL | NPT3/8 | 6 - 10 | 16.662 | 10 | 22 |
| NPT3/4-NFL | NPT3/4 | 12.5 - 18 | 26.441 | 15 | 33 |
| NPT1-NFL | NPT1 | 18 - 25 | 33.500 | 15 | 41 |
