An XLR input connector is the female 3-pin socket on mixers, audio interfaces, and preamps that receives a balanced audio signal. Pin 1 carries ground, Pin 2 the hot (+) signal, and Pin 3 the cold (−) signal. It supplies +48V phantom power to condenser microphones and rejects noise over cable runs beyond 30 m (100 ft).
Shopping for an audio interface and unsure what makes one XLR input better than another? Setting up a mixer and wondering why your condenser mic stays silent? Whether you’re building a home studio or wiring a live stage, the XLR input connector is where every balanced signal enters your gear. Because the input’s preamp quality directly shapes your recordings, understanding XLR input wiring, phantom power, and interface selection is essential for clean, professional sound.
An XLR input connector describes the input-side role of an XLR connector on a mixer, audio interface, preamp, or powered audio device. This page focuses on the input end: signal reception, female socket layout, phantom power, combo jacks, and common input-side troubleshooting.
What Is an XLR Input Connector? Definition & Pinout
An XLR input connector is the female socket on professional audio gear that receives a balanced audio signal. Invented by James H. Cannon at Cannon Electric in the 1950s, the connector takes its name from its design evolution, per Wikipedia’s XLR reference: the original “Cannon X” series gained a Latch (becoming “Cannon XL”), then Rubber insulation around the female contacts — producing the abbreviation XLR.
The XLR connector standardly has three pins:
- Pin 1 (Ground/Shield): prevents electromagnetic interference
- Pin 2 (Hot/Positive): carries the positive-phase audio signal
- Pin 3 (Cold/Negative): carries the inverted-phase audio signal
Because this 3-pin balanced design cancels noise on the receiving end, the XLR input significantly reduces electromagnetic interference (EMI) and radio-frequency interference (RFI) — making it ideal for long cable runs in professional environments. For the complete pinout reference, see our XLR connector pinout guide.
Why Balanced Audio Matters: Common-Mode Rejection

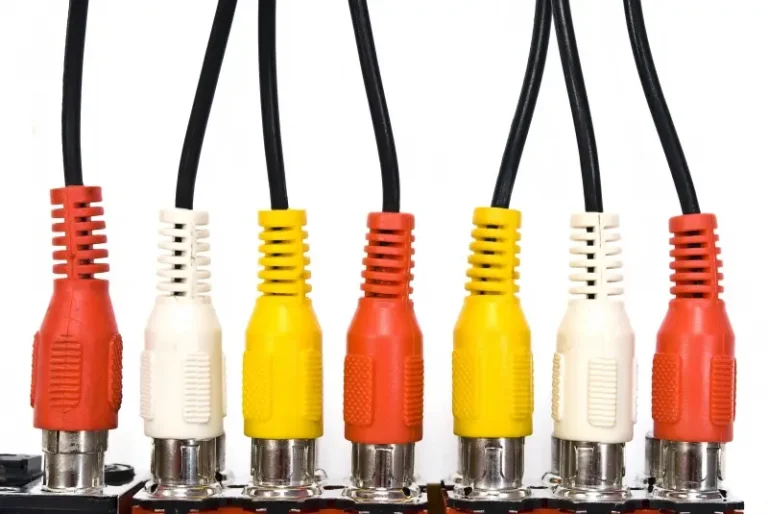

Most consumer audio devices use unbalanced connections — ordinary 3.5 mm or RCA interfaces carrying signal on just two conductors. Although they work fine over short distances, unbalanced cables pick up noise from lighting, power lines, and wireless devices as length increases.
Balanced audio (such as XLR) solves this through common-mode rejection. Because the signal travels as two opposite-phase copies simultaneously, any interference that appears identically on both conductors cancels out when the receiver recombines them. When the cable run exceeds 30 m (100 ft), this is the difference between clean audio and unusable hum.
This is why the XLR input connector is the preferred solution for:
- Live sound reinforcement systems
- Broadcast studios and radio stations
- Professional and home recording studios
- Houses of worship and conference venues
- Film and video production
7 Essential Facts About the XLR Input Connector
Fact 1 — The Industry-Standard Microphone Connector
The XLR input is the de facto standard for connecting microphones to mixers, preamps, and audio interfaces. Because professional condenser, dynamic, and ribbon microphones almost all use XLR outputs, the XLR input is unavoidable in serious audio work. If you’re after professional sound quality, XLR is the standard.
Fact 2 — It Supplies +48V Phantom Power
One of the XLR input’s most underrated features is supplying phantom power — 48V DC and audio sharing the same cable. Because condenser microphones need power to drive their internal circuitry, the XLR input delivers it without a separate power supply. Per LEWITT’s phantom power guide, the DC is applied equally to Pin 2 and Pin 3, making it “invisible” to the audio signal.
💡 Pro tip: Before switching on +48V phantom power, confirm your microphone is compatible. Because most modern dynamic microphones ignore phantom power safely, they’re fine — but because some ribbon microphones can be damaged by +48V, always check the manufacturer’s specification before powering a ribbon mic.
Fact 3 — XLR Comes in Multiple Pin Configurations
Although the classic 3-pin XLR is the most common, the XLR standard covers several variants:
| Type | Pins | Common Use |
|---|---|---|
| XLR3 | 3 pins | Microphones, line-level audio |
| XLR4 | 4 pins | Intercom headsets, some DC power |
| XLR5 | 5 pins | DMX lighting, stereo microphones |
| XLR6 | 6 pins | Dual-channel balanced connections |
| XLR7 | 7 pins | Tube microphones, high-end broadcast |
For most audio applications, you’ll encounter the standard 3-pin XLR input. For full pin-by-pin definitions, see our XLR connector pinout guide.
Fact 4 — Male vs Female XLR
- Male XLR (protruding pins): found on cable outputs and device outputs (e.g. the connector on a microphone body)
- Female XLR (recessed sockets): found on cable inputs and device inputs (e.g. the XLR input on a mixer or audio interface)
Because signal always flows from male pins into female sockets, the rule never varies: the microphone has a male XLR output, the mixer has a female XLR input, and the cable bridges the two. For deeper coverage, see our XLR female connector guide and XLR male connector guide.
Fact 5 — Locking Latch Prevents Accidental Disconnection
Unlike TRS or RCA connectors, XLR has a built-in spring-latch mechanism. Once the latch clicks into place, the connector can’t be accidentally pulled out — because an unintended cable tug during a live performance can suddenly mute a performer, this locking feature is critical on stage. When disconnecting an XLR, press the release button while pulling out.
Fact 6 — XLR Also Carries Digital Audio (AES/EBU)
XLR isn’t only for analog audio. The AES/EBU (AES3) digital audio standard used in professional broadcast and studio gear also runs over balanced XLR cables. Because AES/EBU requires 110-ohm impedance cable, a standard 45–75-ohm microphone cable isn’t ideal — although an ordinary mic cable may work over short distances, it causes signal degradation on long digital runs.
Fact 7 — Cable Quality Matters More Than You Think
Because inferior cables introduce noise, signal loss, and intermittent connections, not all XLR cables are equal. When buying XLR cables, prioritize:
- Oxygen-free copper (OFC) conductors for low resistance and clean signal transfer
- Braided or spiral shielding for maximum interference rejection
- Quality connectors — Neutrik and Amphenol are industry benchmarks; for high-quality OEM and custom assemblies, Verchil manufactures professional XLR connectors and cables at competitive pricing
Established cable brands like Mogami and Canare are trusted in professional audio. Whether you need a single cable or a bulk order, explore Verchil’s XLR connector range for project-specific options.
XLR Input Wiring (IEC 60268-12 Standard)
On a standard 3-pin XLR input, Pin 1 is shield/ground, while Pins 2 and 3 carry the balanced signal pair. For full pinout diagrams and wiring details, see the XLR connector pinout guide.
How to Choose an Audio Interface XLR Input
Because the XLR input’s built-in microphone preamp directly shapes your recordings, its quality is the single most important factor when choosing an audio interface. Compare these parameters:
- Equivalent Input Noise (EIN): lower is better (aim for −128 dBu or lower)
- Gain range: at least 50–60 dB — because quiet ribbon and dynamic microphones need extra gain, insufficient range leaves them too soft
- THD+N (Total Harmonic Distortion + Noise): lower means cleaner, more transparent sound
- Maximum input level: because loud sources can clip a low-headroom input, a high max level protects against distortion
XLR Input Troubleshooting: 4 Common Faults
Fault 1 — Crackling or Intermittent Signal
Cause: Dirty or oxidized contact pins.
Fix: When pins oxidize, spray contact cleaner (DeoxIT) on them and re-seat the cable.
Fault 2 — No Signal at All
Cause: A fractured solder joint or damaged cable.
Fix: Swap in a known-good cable to confirm. Because internal breaks are invisible, use a cable tester to locate the fault.
Fault 3 — Loud Hum or Buzz
Cause: A ground loop between devices, or an unbalanced link in the signal chain.
Fix: Because differing ground potentials drive the hum, ensure all devices share the same ground. When an unbalanced source is involved, use a DI box to convert it to balanced.
Fault 4 — Phase Cancellation in Stereo Recordings
Cause: One cable wired with reversed polarity (Pin 2 and Pin 3 swapped).
Fix: Because reversed polarity cancels signal, test the cable with a polarity checker and re-solder the miswired end.
Frequently Asked Questions
Why is the XLR input connector an industry standard for professional audio?
The XLR input connector dominates the professional audio field for four reasons:
Balanced signal transmission: Electromagnetic interference (EMI) and radio frequency interference (RFI) can be significantly reduced even in long-distance wiring of more than 30 meters.
Lock mechanism: built-in buckle can prevent accidental pull-out during the performance and ensure signal stability.
phantom power support: a single XLR cable can transmit audio signals and 48V DC power at the same time to power a condenser microphone.
Durable: The professional XLR connector can withstand thousands of insertions and is ideal for touring and recording studio environments.
What is phantom power on an XLR input?
Phantom power is typically +48V DC supplied by a mixer, preamp, or audio interface through the XLR input to power condenser microphones and some active DI boxes. The voltage is applied equally to Pin 2 and Pin 3 relative to Pin 1, so the balanced audio input does not treat it as a normal audio signal.
Can phantom power damage a microphone or DI box?
Condenser microphones: usually need phantom power and are designed for it.
Most dynamic microphones: usually tolerate phantom power when the cable and input are correctly wired.
Ribbon microphones: older or vintage ribbon models may be damaged by phantom power, so always check the manufacturer’s specification before enabling +48V.
Active DI boxes: many can run from phantom power.
Passive DI boxes: do not need phantom power.
Best practice: connect the microphone first, then enable phantom power; turn phantom power off before unplugging the cable to avoid loud pops.
Can an XLR microphone connect directly to a computer?
Not directly. Most computers do not provide a native XLR input. The standard solution is a USB audio interface with an XLR microphone input, microphone preamp, and optional +48V phantom power. A USB-XLR adapter can work for simple use, but it usually offers less control and lower audio quality. A USB microphone bypasses XLR completely and is easier to use, but it gives less flexibility for future upgrades.
Why does my XLR input have no signal at all?
Please check the following list item by item:
Is the cable completely inserted? (Confirm that the lock has been stuck in place and make a ‘click’ sound)
Is the correct channel input selected on the mixer/audio interface?
Has the gain/gain fine-tuning knob been turned up?
If a condenser microphone is used: is the phantom power (+48V) turned on?
Replace the known intact cable test to eliminate cable faults
Use the cable tester to check whether there is a solder joint break or a wire break.
If the input works with another cable, the problem is likely in the cable or connector. Use the XLR connector pinout guide for continuity checks, the how to wire an XLR connector guide for wiring repair, and the XLR soldering guide for solder-joint repair.
Input-Side Gender: Why XLR Inputs Are Usually Female
Most XLR inputs on mixers, audio interfaces, and preamps use female sockets because they receive the male XLR plug from the cable. This page treats “input” as the signal-chain role; for the connector-focused male/female comparison, see the XLR female connector guide.
Common XLR Input Formats
Most audio inputs use 3-pin XLR. Other XLR formats exist for intercom, DMX lighting, stereo microphones, or specialty broadcast equipment, but they are not the normal input format on standard mixers and audio interfaces. For full pin-by-pin layouts, see the XLR connector pinout guide.
Conclusion: Why the XLR Input Endures
Decades after its invention, the XLR input connector remains the undisputed standard in professional audio. Because its balanced design, locking latch, phantom power support, and rugged build have no real rival, it stays irreplaceable across recording studios, stages, and broadcast facilities worldwide.
Whether you’re plugging in a condenser microphone for the first time or wiring a 64-channel live mixer, a solid grasp of the XLR input is essential knowledge for anyone serious about sound. Because the input’s preamp quality shapes everything downstream, investing in quality cables and correct wiring pays off across your entire signal chain.
