An XLR female connector is the 3-hole socket end of a balanced audio connection, used as the input on mixers, audio interfaces, and the receiving end of microphone cables. Its recessed sockets accept the male connector’s pins, carrying Pin 1 (Ground), Pin 2 (Hot/+), and Pin 3 (Cold/−). The female design protects live phantom-power contacts from accidental shorts.
Soldering your first microphone cable and unsure which end takes the female connector? Hearing buzz on a balanced line you thought was noise-proof? Whether you record podcasts, mix live sound, or build custom cables, the XLR female connector sits at the heart of every balanced audio signal — yet it’s one of the most misunderstood parts in pro audio. Because the female end serves as the signal gateway into mixers and interfaces, understanding its pinout, soldering, and safety design eliminates most noise problems before they start.
What Is an XLR Female Connector? Definition & Features

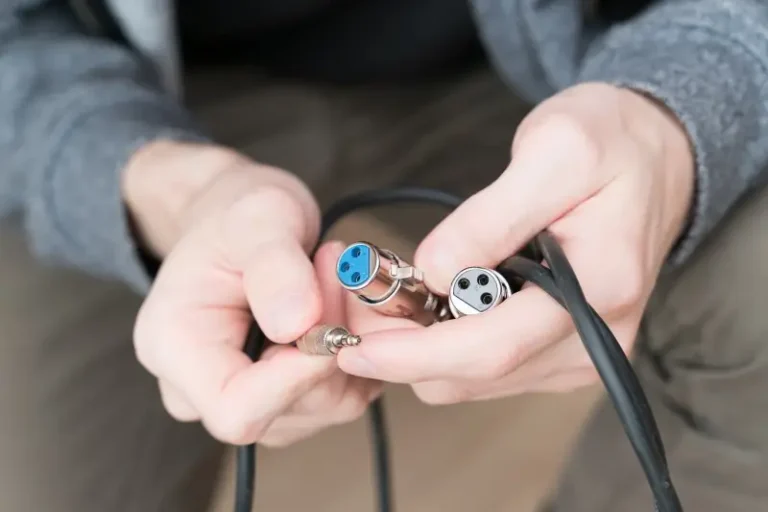

The XLR female connector is the circular, 3-hole socket end of a balanced audio connection — typically found at the receiving end of a cable or the input on audio equipment. Its defining feature is its recessed sockets (not pins), engineered to receive the protruding pins of an XLR male connector.
Because professional audio demands noise immunity that consumer RCA and 3.5 mm connectors cannot provide, XLR connectors use a balanced 3-conductor design: positive (Hot), negative (Cold), and ground. When this balanced signal travels through long cable runs, the design cancels noise and radio frequency interference (RFI) — exactly what professional installations require. For the complete fundamentals, see our XLR connector guide.
Key Identifying Features
Three contacts (standard) — The standard configuration is 3 pins, though 4-pin and 5-pin variants exist for intercom systems and DMX-512 lighting control respectively.
Sockets, not pins — The female version has 3 recessed holes (sockets) that receive the male connector’s pins.
Locking latch — Most XLR female connectors include a button-release latch that locks the male plug in place, preventing accidental disconnection during use.
XLR Female vs Male: Direction, Design & Difference
Because connector gender determines signal direction in every balanced audio chain, understanding the female-vs-male distinction is the foundation of correct cabling. When you trace any audio signal, it always flows out of male pins and into female sockets — a rule that never varies.
| Feature | XLR Female Connector | XLR Male Connector |
|---|---|---|
| Physical Design | 3 recessed sockets (holes) | 3 protruding pins |
| Signal Direction | Receives signal (Input) | Sends signal (Output) |
| Common Location | Mixer/interface inputs, cable end mating to mic | Microphone body, mixer main outputs, cable end mating to input |
| Locking Component | Latch release button | Latch notch / groove |
| Phantom Power Role | Supplies +48V (on mixer/interface side) | Receives +48V (on microphone side) |
| Safety Profile | Recessed contacts resist accidental shorts | Exposed pins require careful handling when live |
For full male-side coverage, see our dedicated XLR male connector guide.
💡 Pro rule of thumb: Because signal always flows out of male pins and into female sockets, your microphone cable must terminate in an XLR female connector to mate with the microphone’s built-in male output. The opposite cable end carries an XLR male connector to plug into the mixer’s female input.
XLR Female Connector Pinout (Pin 1, 2, 3)
Because virtually all professional audio gear follows the AES48 standard, the XLR female connector pinout is universal. Per Clark Wire & Cable’s AES wiring reference, the standard configuration is:
| Pin | Function | Polarity | Wire Color (Convention) |
|---|---|---|---|
| Pin 1 | Ground / Shield | Reference (0V) | Bare shield / drain wire |
| Pin 2 | Hot (+) / Positive | Normal-phase signal | White or red |
| Pin 3 | Cold (−) / Negative | Inverted-phase signal | Black, blue, or white |
⚠️ Reading the pin numbers: Look at the female connector — the pin numbers (1, 2, 3) are stamped directly into the plastic insert next to each socket, on both the front and back. Before soldering, always verify these stamped numbers rather than guessing by position.
Note on female socket orientation: Because the female connector is a mirror image of the male, the socket layout appears reversed when you look at the soldering side. To avoid wiring errors, mate the male and female connectors together in a vise while soldering — this keeps the pin orientation visually consistent.
Anatomy of an XLR Female Connector: 4 Core Parts
If you plan to solder your own cables, understanding these four core components is essential.
1. Housing (Shell) Usually made of die-cast zinc alloy or high-impact plastic, the housing protects the internal solder joints. Because EMI shielding depends on a conductive shell, quality metal housings also block electromagnetic interference.
2. Insert The fixed plastic or rubber core that holds the three conductive sockets in precise alignment, ensuring they mate correctly with the male connector’s pins.
3. Strain Relief / Chuck When the rear bushing is tightened, the internal chuck clamps the cable’s outer jacket. Because cables on stage are pulled and tugged constantly, this strain relief prevents solder joints from fracturing — the single most common cause of cable failure.
4. Boot (Rear Cover) The threaded cover that screws onto the back of the shell, sealing the assembly and adding a second layer of strain relief.
How to Solder an XLR Female Connector: 6-Step Guide
Among the most valuable skills for any audio engineer is the ability to repair or build cables. Once you follow the standard pinout, soldering an XLR female connector is straightforward.
Tools You’ll Need
- Soldering iron (25–40 W) with rosin-core solder (60/40 or lead-free SnAgCu)
- Wire strippers sized for balanced microphone cable
- Helping-hands jig or PCB vise to hold the connector steady
- Quality balanced microphone cable (Canare Star Quad, Mogami W2549, or similar)
- Multimeter for continuity and short testing
Follow the standard pinout from the section above: Pin 1 = Ground, Pin 2 = Hot, Pin 3 = Cold.
Step 1 — Slide the boot and chuck onto the cable FIRST. Before stripping anything, slide the threaded boot and chuck onto the cable. Because the boot cannot pass over a finished solder joint, forgetting this step forces you to desolder and start over — the most common beginner mistake.
Step 2 — Strip the cable. Remove about 25 mm (1 inch) of outer jacket. Untwist the shield braid and twist it into a single strand. Strip 5 mm of insulation from the two internal conductors.
Step 3 — Tin the conductors and sockets. Apply a small amount of solder to each wire end and to each solder cup on the connector. Because pre-tinned joints flow faster, tinning produces stronger connections with less heat exposure.
Step 4 — Solder Pin 1 (Ground). Solder the twisted shield wire to the Pin 1 solder cup.
Step 5 — Solder Pin 2 (Hot) and Pin 3 (Cold). Solder the red (positive) conductor to Pin 2, then the remaining conductor to Pin 3. To avoid melting the insert, keep iron contact under 3 seconds per cup.
Step 6 — Test, then assemble. Before sealing the connector, test with a multimeter for continuity and shorts — confirm no stray copper strands bridge adjacent pins. Once the connection passes, slide the insert into the shell, align the guide groove, and tighten the boot.
“How to Solder a Female XLR Connector” (published August 2023) — demonstrates the exact Pin 1/2/3 soldering sequence for the female connector covered in this guide.
Why the XLR Female Connector Is Always the Input
You might wonder why the industry universally defines the female connector as the input (receiver) and the male as the output. The answer comes down to phantom power safety.
Because condenser microphones require +48V phantom power, that DC voltage must travel from the mixer or interface to the microphone. Since the equipment supplies power through its output, that output must present recessed female sockets rather than exposed male pins.
Here’s why this matters for safety: Because the female connector hides its contacts inside recessed sockets, a live +48V contact cannot easily short against a metal surface or be touched by hand. If the powered output end instead exposed bare male pins, any accidental contact with a grounded surface would short the phantom power supply — potentially damaging the mixer, interface, or microphone.
This is the elegant logic behind XLR’s gendering: the powered side is always protected, and the protected side is always powered. For deeper phantom power coverage, see our XLR connector guide.
Mini XLR Female Connectors (TA3F / TA4F)
The Mini XLR female connector (also called TA3F for 3-pin or TA4F for 4-pin) is a miniaturized version of the standard connector, widely used where space is limited.
Because wireless bodypack transmitters and lavalier microphones cannot fit a full-size XLR, mini XLR became the standard for:
- Wireless bodypack transmitters (Shure, Sennheiser, Audio-Technica systems)
- Lavalier and headset microphones that connect to bodypacks
- Compact field recorders and camera-mounted audio devices
- In-ear monitor packs for live performers
⚠️ Critical compatibility note: Although the mini XLR shares the same pinout logic as standard XLR, its physically smaller body is not interchangeable with standard XLR connectors. Before buying a replacement cable, confirm whether your device uses TA3F (3-pin) or TA4F (4-pin) — the two are also incompatible with each other.
Note on wiring variation: Because different manufacturers wire the bodypack mini-XLR differently (Shure vs Sennheiser vary), always check your specific transmitter’s pinout before soldering a replacement.
XLR Female Connector Troubleshooting: 3 Common Problems
Even the best XLR Female Connector can fail over time. Here are a few common questions.
Problem 1 — Cable Won’t Release From the Microphone
Symptom: The XLR female connector’s latch is stuck in the microphone’s base and won’t release when you press the button.
Cause: When the latch mechanism corrodes or jams, the release button fails to disengage the locking pin.
Fix: Don’t yank the cable. Instead, locate the small release tab or screw on the connector, then gently press the locking mechanism with a small flathead screwdriver while pulling the connector free. If the latch is physically bent, the connector body needs replacement.
Problem 2 — Intermittent Audio / Crackling
Symptom: Audio cuts in and out or crackles, especially when the cable is flexed near the connector.
Cause: When a cold solder joint cracks or a conductor breaks inside the boot, the connection becomes intermittent.
Fix: Unscrew the boot and inspect each solder joint. If the Pin 2 or Pin 3 connection looks dull, grainy, or loose, reflow the solder. Because a proper joint is shiny and concave, any joint that looks otherwise should be re-soldered.
Problem 3 — Hum or Buzz
Symptom: A steady low-frequency hum or buzz regardless of source audio.
Cause: Either a ground loop, or a Pin 1 (shield) connection that has come loose.
Fix: First, confirm that Pin 1 (the shield) is firmly soldered — a loose ground is the most common cause. If the hum persists after checking Pin 1, inspect your cable routing: because audio cables running parallel to power cables pick up induced hum, separate them or cross them at 90° angles. When the problem is a true ground loop, add an inline isolator (Ebtech Hum X) or use a DI box with a ground-lift switch.
Frequently Asked Questions
Can I connect an XLR female connector to an unbalanced input?
Yes, but you’ll lose the noise-cancellation benefit of balanced audio. If you need to connect XLR to an unbalanced TS input, use an XLR-to-TS adapter that bridges Pin 3 (Cold) and Pin 1 (Ground) together, converting the balanced signal to unbalanced.
Because this defeats common-mode noise rejection, keep such runs short — ideally under 3 m (10 ft). For full conversion guidance, see our XLR to TRS cable guide.
What is a Mini XLR connector?
The Mini XLR (TA3F/TA4F) is a scaled-down version of the standard connector, commonly used in wireless bodypack transmitters and lavalier microphones. Although it shares the same pinout logic as standard XLR, its physically smaller body cannot be interchanged with standard XLR connectors. See the Mini XLR section above for compatibility details across Shure, Sennheiser, and Audio-Technica systems.
How do I clean an XLR female connector?
When contacts oxidize over time, they can cause intermittent connection or added noise. Apply a dedicated electrical contact cleaner (DeoxIT D5 or similar), then gently scrub inside each socket with a small interdental brush. Because abrasive tools can strip the contact plating, avoid metal picks or sandpaper.
What is the pinout of an XLR female connector?
The universal AES48 pinout: Pin 1 = Ground/Shield, Pin 2 = Hot/Positive (+), Pin 3 = Cold/Negative (−). Because the female connector mirrors the male, the socket layout appears reversed when viewed from the soldering side — always verify the numbers stamped into the plastic insert before wiring.
Is the XLR female connector input or output?
In the vast majority of cases, the female connector is the input. Mixers, audio interfaces, and powered speakers present female XLR sockets to receive signal. Because phantom power flows from the input device, the female design also protects the live +48V contacts. The rare exceptions are certain output devices wired with female connectors, but the standard rule — female = input, male = output — holds nearly universally.
Why does my XLR female connector have the pins reversed?
It’s not reversed — it’s mirrored. Because the female socket must physically mate with the male pins, its layout is a mirror image of the male connector. When you look at the back (soldering side), Pin 3 appears where you’d expect Pin 2 on a male connector. To avoid wiring mistakes, mate the two connectors in a vise while soldering so the orientation stays consistent.
Can phantom power damage an XLR female connector?
No — the connector itself is unaffected by +48V phantom power. Because phantom power is a standard part of XLR operation, quality connectors are rated to handle it indefinitely. However, when you connect a ribbon microphone, phantom power can damage the microphone’s ribbon element (not the connector). Always switch phantom power off before connecting ribbon mics unless they are specifically marked phantom-safe.
Choosing the Right XLR Female Connector
Because connector quality directly affects noise floor and durability, selecting the right XLR female connector matters as much as the cable itself. Evaluate any connector against these four criteria:
1. Contact Plating
- Gold — Best corrosion resistance for permanent installs and humid environments
- Silver — Highest conductivity; ideal for studios with frequent re-patching
- Nickel — Durable and economical for touring/road use
2. Housing Material
When connectors face stage abuse or impact, choose die-cast zinc alloy over plastic for both durability and EMI shielding.
3. Strain Relief Quality
Because failed strain relief is the #1 cause of cable failure, inspect the chuck and boot — they should grip the cable jacket firmly, never the bare conductors.
4. Connector Brand
- Premium tier: Neutrik and Switchcraft are the global studio/touring standards
- OEM/value tier: Verchil manufactures high-quality XLR female connectors and custom cable assemblies at significantly lower cost — ideal for bulk orders, rental companies, install integrators, and AV systems.
Whether you need a single replacement connector or a bulk OEM order, explore Verchil’s XLR connector range or contact our technical team for project-specific quotes.
Conclusion
Because the XLR female connector sits at the input of every balanced audio chain, mastering it solves the majority of noise and connection problems before they start. Remember three essentials: the universal pinout (Pin 1 = Ground, Pin 2 = Hot, Pin 3 = Cold), the safety logic behind female-as-input (recessed sockets protect live phantom power), and proper strain relief when soldering. Whether you’re building a home studio or wiring a touring rig, quality connectors and correct wiring deliver the clean, noise-free signal professional audio demands.
