When setting up a network connection outside the home or office, it often faces the problem of flooding. Whether you’re installing security cameras, extending Wi-Fi to backyard shacks, or setting up outdoor digital signage, moisture is the enemy of data transmission.
If there is no proper protection outdoors, rainwater will seep into the end of the cable. Corrosion, short circuiting, and intermittent signal interruptions follow. The sealed design of the waterproof RJ45 connector ensures that your outdoor network remains fast, stable and durable regardless of the weather. In this guide, we’ll explore why these connectors are critical, how to choose the right level of protection, and how to install them for maximum service life.
Waterproof RJ45 Connector Overview

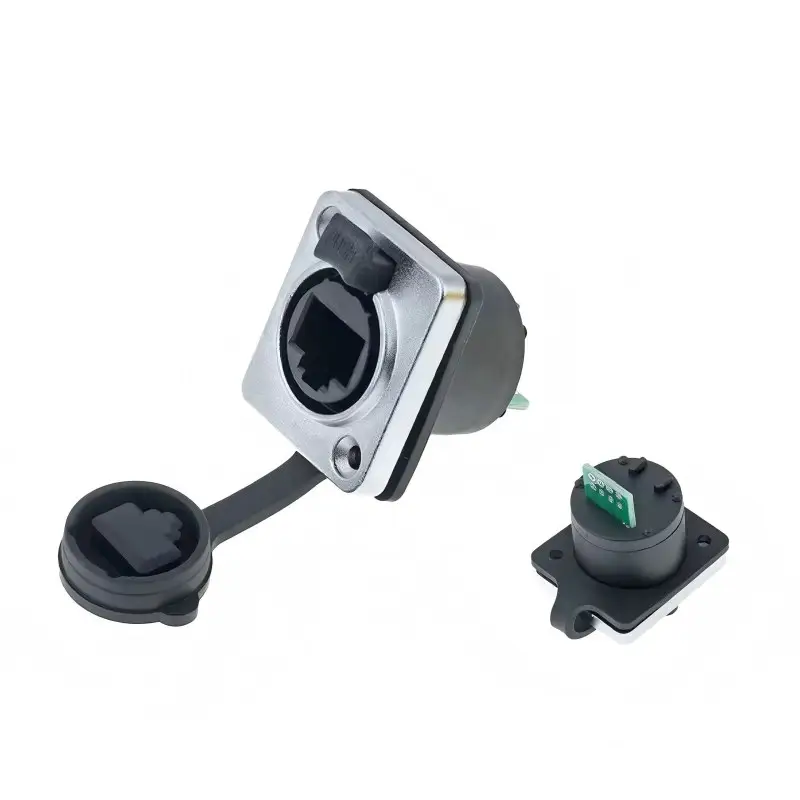

The waterproof RJ45 connector is a special Ethernet coupler or plug in the sealed housing. Unlike the common plastic snaps on the jumper, these connectors form an impermeable seal around the contact point with a washer, an O-ring, and a spiral locking mechanism.
From the user’s point of view, it’s important to understand its core functions: it connects two Ethernet cables (usually with a male socket terminal), and this design prevents water, dust and debris from entering at the same time. They are like shields, protecting the copper pins that transmit data.
Why Do You Need Waterproof RJ45 Connectors?
Many DIY enthusiasts believe that winding electrical tape at the connection is enough to cope with the outdoor environment. However, this is one of the main causes of network failure.
- Prevent electrochemical corrosion
The oxidation process is accelerated when moisture comes into contact with copper pins in Ethernet jacks that are transmitting power supplies (PoE) or data. This will lead to the emergence of ‘filth’ on the contact, increase the resistance, and ultimately completely destroy the connection. The waterproof RJ45 connector eliminates this risk by forming an airtight seal.
- Resistance to physical stresses
Outdoor cables are affected by wind, temperature fluctuations and physical movement. The hard waterproof shell plays a role in eliminating stress and preventing the cable from falling off from the jack in the case of strong wind or accidental pulling.
- Maintain data integrity
Water will lead to impedance imbalance in the twisted pair. If water penetrates the cable sheath, it will reduce the dielectric function of the insulating layer, resulting in packet loss and slow network speed.
Knowing the IP Protection Level of Waterproof RJ45 Connectors
When choosing the waterproof RJ45 connector, you will see an ‘IP’ level (entrance protection level). Getting this code is critical to choose the right product for your environment.
Reference article: RJ45 Waterproof Connector–The Ultimate Outdoor Protection Guide
For an in-depth insight of how these levels are tested, please refer to Wikipedia’s instructions on IP code.
Waterproof RJ45 Connector Detailed Installation and Selection Tutorial
The right installation is as important as the right purchase. If the rubber sealing ring is not in place correctly, no matter how good the waterproof effect will fail. Please follow the following steps to ensure that the connection is secure:
Step 1: Prepare the cable
Make sure you’re using an outdoor rated Ethernet cable (usually with a CMX or UV-resistant sheath). Standard indoor PVC cables will crack in the sun, eventually leading to connector failure.
Step 2: Disassemble the connector
Twist down the cap and separate the components. You usually see a main body, two sealing nuts and rubber O-rings.
Step 3: Through the cable
Before crimping the RJ45 crystal head, the ‘nut’ and ‘waterproof shell’ are slipped on the cable.
Note: If your cable is pre-terminated (with existing crystal heads), look for connectors specifically designed to override existing connectors, although remaking terminations is usually safer.
Step 4: Connect the plug
Insert your RJ45 male head into the internal coupler of the waterproof housing. Listen to clear’clicking’sounds to ensure a strong data connection.
Step 5: Seal and tighten
Slide the shell through the joint. Tighten the compression nuts at both ends. When you tighten, the internal rubber sealing ring is compressed on the cable sheath.
Professional tips: Don’t use tools to tighten too much; usually hand tightening is enough to form a seal, and will not crack the plastic.
Waterproof RJ45 Connector Vs. Waterproof RJ45 Junction Box
Just need a connector is enough, or need a complete junction box?
Waterproof RJ45 connector is most suitable for:
- Straight line connection (connecting two cables).
- Connect the tail line of the camera to the main line.
- Scenes with aesthetic requirements (their small size is cylindrical).
Waterproof junction box is most suitable for:
- Hide the redundant cable relaxation part.
- Accommodate non-waterproof equipment (such as PoE syringes).
- Multiple cables converge in a point scene.
- For simple cable extension, connectors are a more efficient and cost-effective option.
Signal Troubleshooting After Installation of RJ45 Panel
If you have installed a waterproof RJ45 connector but still encounter signal problems, check the following:
- Check the O-ring: Does the rubber O-ring slip out of position during tightening? This is the most common point of failure.
- Check the pin: If the joint has been exposed before adding the waterproof shell, the pin may have been corroded. Use a contact cleaner or re-press the crystal head.
- Cable Category: Ensure that Cat5e and Cat6 cables are not mixed over long distances, which may result in signal attenuation independent of the connector.
The strength of your outdoor network depends on its weakest link. Exposure of the connection to the atmosphere is a guarantee of future failures. By investing in high-quality waterproof RJ45 connectors ‘especially those with IP65 or IP68 ratings’ you can ensure that your security cameras, outdoor Wi-Fi, and data links remain unblocked in rain, snow, and wet environments.
Don’t regret until the rainstorm interrupts the signal. Upgrade your outdoor connection immediately to protect your digital infrastructure.
