A waterproof plug connector is a sealed, two-part connector — a male plug and a female socket — that mates to carry power or signal in wet, dusty conditions while staying disconnectable. Most are circular (aviation or M12), industrial pin-and-sleeve, or push-pull, rated IP67 or IP68, and lock by thread, bayonet, or push-pull. Crucially, the seal holds only when the connector is mated and locked.
Need a connection you can unplug for service — not a permanent splice — that still survives rain, dust, and washdown? Then you want a waterproof plug connector, where a male and a female half seal together. Because that seal lives at the mating face, the coupling type and IP rating decide reliability far more than the price. So this guide covers what these connectors are, the main types, how to read the IP rating, and how to match one to your job.
What Is a Waterproof Plug Connector?
A waterproof plug connector is a pluggable pair — plug plus socket — engineered to keep moisture and dust out of the contacts while remaining mate-and-unmate, unlike a permanent waterproof splice connector. It seals at three points: an O-ring or gasket at the mating face, a grommet or gland at the cable entry, and, on higher grades, individually sealed contact cavities.
The one rule every installer should know: as Amphenol LTW’s waterproof connector guidance notes, an IP rating is valid only when the connector is fully mated — an unmated half still exposes its contacts, so any unused port needs a sealing cap of equal rating. For the full family and IP background, our waterproof connector types and IP ratings guide is the pillar reference, and Verchil’s waterproof aviation connector range is the circular plug-and-socket form.
Types of Waterproof Plug Connectors
Match the type to current, pin count, and how often you’ll unplug it:
- Circular aviation (SP/SL, M-series) — threaded or bayonet shell with a molded O-ring, IP67/IP68, 2 to 26+ contacts. The all-rounder for outdoor power-and-signal; see our aviation connector ultimate guide and the popular 16mm aviation connector.
- M12 circular — the IEC-standardized industrial pluggable for sensors and fieldbus, with A/B/D/X coding to prevent cross-mating.
- Industrial pin-and-sleeve — IEC 60309 plug-and-socket sets at 16 A or 32 A, 110–500 V, for outdoor power distribution, sites, and EV/AGV charging.
- Push-pull — one-handed connect/release in a sealed shell, common on medical, broadcast, and portable gear.
- Rectangular / modular — a lever-locked housing mixing power and signal modules; the heavy-duty cousins are our heavy duty connectors. Data versions include sealed RJ45 plug connectors.
| Type | Coupling | Typical IP | Best for |
|---|---|---|---|
| Circular aviation (SP/SL) | Thread / bayonet | IP67/IP68 | Outdoor power & signal |
| M12 circular | Thread | IP67/IP68 | Sensors, fieldbus, IoT |
| Industrial pin-and-sleeve | Interlock | IP67 | Site power, EV/AGV |
| Push-pull | Spring push-pull | IP68 | Medical, broadcast, portable |
| Rectangular/modular | Lever | IP65–IP69K | Machinery, mixed power+signal |

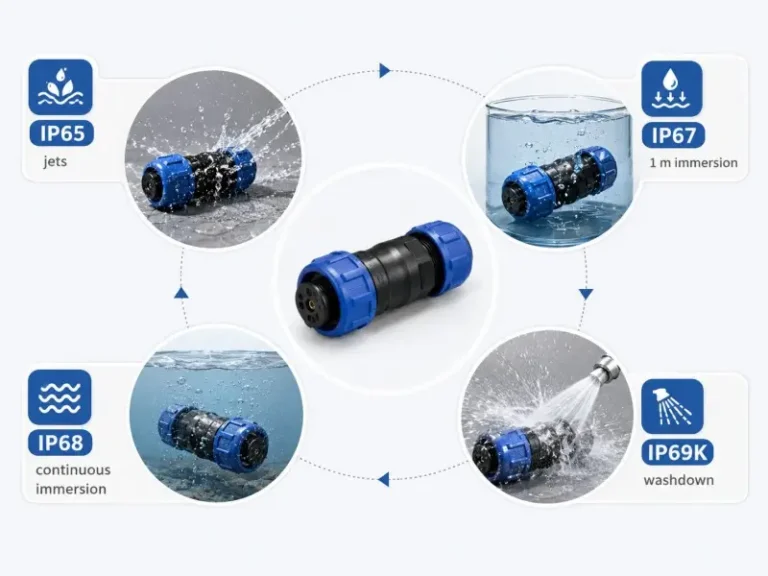

IP67 vs IP68: Choosing the Rating
The IP code comes from IEC 60529; for enclosure mating, NEMA 250 covers similar sealing in North America:
| Rating | Water protection | Typical use |
|---|---|---|
| IP65 | Jets from any direction | Sheltered outdoor, panels |
| IP67 | Immersion to 1 m for 30 min | Outdoor gear, handhelds, lighting |
| IP68 | Continuous immersion (maker-defined) | Marine, burial, submersible |
| IP69K | High-pressure, high-temp washdown | Food, pharma, vehicle wash |
So most outdoor work starts at IP67, stepping to IP68 for immersion or burial and IP69K for washdown. Because IP68 depth and time are manufacturer-defined, confirm the exact figures on the datasheet. Our cable gland IP rating guide breaks down each digit.
Key Specs That Decide a Waterproof Plug Connector
Beyond the IP grade, weigh five specs:
- Current and voltage — from a few amps on signal pins up to 200 A on industrial power contacts; derate ~20 % for hot or bundled use. For high-current circuits, see our aviation power connector guide.
- Contacts and plating — gold for signal and high-cycle pins, silver or tin for high-current power; keep contact resistance low.
- Coupling and locking — threaded for maximum vibration resistance, bayonet for fast mating, push-pull for one-handed use.
- Pin count and coding — count every power, ground, and signal line; keyed/coded shells stop a power lead entering a data port.
- Mating cycles and mounting — 500 cycles for fixed links, 5,000+ for service ports; choose panel-mount for a fixed chassis port or cable-mount for a flying lead.
Where Waterproof Plug Connectors Are Used
Because they unplug for service yet stay sealed, waterproof plug connectors appear across many fields:
- Outdoor and LED lighting — sealed plug-and-socket pairs join façade, signage, and landscape fixtures so a unit can be swapped without rewiring.
- Solar and EV/AGV charging — IP67/IP68 plugs link panels, combiners, and chargers through condensation, washdown, and freeze-thaw.
- Industrial automation — M12 and circular connectors carry sensor power and data on robots and lines amid coolant and vibration.
- Marine and outdoor IoT — stainless or sealed shells resist salt spray on boats, buoys, and smart-city nodes.
For the product families behind these links — MC4, Anderson, Deutsch and other sealed electrical types — see our waterproof electrical connectors guide.
For application-matched options across these uses, see Verchil’s industrial connectivity solutions and, for low-voltage DC runs, our waterproof low voltage cable connector guide.
How to Choose and Install One
Work through four decisions, then fit it carefully:
- Set the IP rating from the environment — IP67 outdoors, IP68 for immersion.
- Count contacts and reserve ~20 % spare pins.
- Pick the coupling for your vibration and mating frequency.
- Match the shell material — nylon for general outdoor, nickel-plated brass or stainless for marine and chemicals.
On install, measure the cable OD and match the gland insert — a mismatch is the top cause of leaks, so where a cable enters an enclosure, pair the connector with a sealed waterproof cable gland. Hand-tighten the coupling to compress the O-ring without crushing it, cap every unused port, and test continuity before sealing. For wider install and corrosion diagnosis, our waterproof cable connector install and fix guide goes deeper.
Conclusion
In short, a waterproof plug connector gives you a sealed connection you can still unplug — defined by three matched choices: the IP rating for your environment, the coupling type for your vibration and service needs, and the shell and contacts for your current and corrosion conditions. Circular aviation and M12 types cover most outdoor power-and-signal work, pin-and-sleeve handles site power, and push-pull suits quick-service gear. Match those, seat every seal, and cap unused ports, and the connection holds for years.
FAQ: Waterproof Plug Connectors
What is a waterproof plug connector?
It’s a sealed two-part connector — a male plug and a female socket — that mates to pass power or signal in wet or dusty environments while remaining disconnectable. Unlike a permanent splice, it can be unplugged for service, and it seals at the mating face and cable entry to an IP67 or IP68 rating.
Is a waterproof plug connector sealed when unplugged?
No. The IP rating applies only when the plug and socket are fully mated and locked, because the seal forms between the two halves. An unmated port exposes the contacts unless fitted with a sealing dust cap of equal rating — essential outdoors or in salt air.
What’s the difference between IP67 and IP68 plug connectors?
Both are dust-tight ratings under the IP code. IP67 is commonly associated with temporary immersion at 1 m for 30 minutes. IP68 means immersion protection beyond IP67 under manufacturer-specified conditions, so the water depth, duration, pressure condition, and whether the plug is tested mated, capped, or assembled must be confirmed from the datasheet.
Are different brands of waterproof plug connectors interchangeable?
Usually not. Even similar-looking circular, LED, and industrial plug connectors may use different thread forms, keying, shell dimensions, pin layouts, gasket geometry, and locking tolerances. Always pair the plug and socket from the same series, and confirm documented cross-compatibility before mixing brands.
Panel-mount or cable-mount — which do I need?
A panel-mount connector fixes to a chassis or enclosure wall to create a stationary sealed port; a cable-mount connector terminates a flexible lead. Every complete link needs one of each — a male and a female — so order both halves and confirm the panel cutout matches the connector’s thread size.
How many pins should a waterproof plug connector have?
Count every independent line — power, ground, and each signal — then add roughly 20 % spare contacts for future use. Two to four pins suit basic power and simple signals; six or more handle encoders, data, and multi-phase power. More pins mean a larger shell and tighter wiring, so don’t over-specify.
