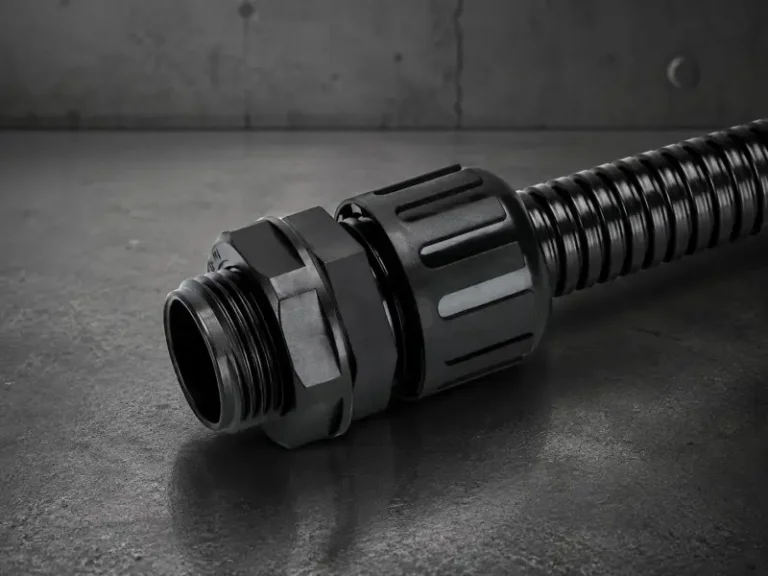

Corrugated Pipe Waterproof Cable Gland

Corrugated Pipe Waterproof Cable Gland

Thread:Metric, PG
Body Material:Nylon PA6 for A.C.E. parts
Sealing and sealing ring:EPDM rubber for B.D. parts
Protection level:IP68
Working temperature:Static: -40℃ to 100℃, up to 120℃ for a short time.
CertificateCE IP68 Rohs Reach

Watertight fitting gland component diagram
Waterproof Watertight Corrugated Pipe Gland
ModelAccommodated PipeThreadThread O.D L2(mm)Thread length L1(mm)
Pipe Size: AD10
M12-NC10AD10M12129
PG7-NC10AD10PG712.59
PG9-NC10AD10PG915.210
Pipe Size: AD13
M16-NC13AD13M161610 / 15
PG11-NC13AD13PG1118.610
Pipe Size: AD15.8
M16-NC15.8AD15.8M161615
M20-NC15.8AD15.8M202010 / 15
PG11-NC15.8AD15.8PG1118.610
PG13.5-NC15.8AD15.8PG13.520.410
PG16-NC15.8AD15.8PG1622.510.8
Pipe Size: AD18.5
M16-NC18.5AD18.5M161615
M20-NC18.5AD18.5M202010 / 15
PG11-NC18.5AD18.5PG1118.610
PG13.5-NC18.5AD18.5PG13.520.410
PG16-NC18.5AD18.5PG1622.510.8
Pipe Size: AD21.2
M20-NC21.2AD21.2M202015
M25-NC21.2AD21.2M252510 / 15
PG16-NC21.2AD21.2PG1622.510.8
PG21-NC21.2AD21.2PG2128.313
Pipe Size: AD25
M25-NC25AD25M252515
PG21-NC25AD25PG2128.313
Pipe Size: AD28.5
M25-NC28.5AD28.5M252515
PG21-NC28.5AD28.5PG2128.313
Pipe Size: AD34.5
M32-NC34.5AD34.5M323215
PG29-NC34.5AD34.5PG293713
Pipe Size: AD42.5
M40-NC42.5AD42.5M404015
M50-NC42.5AD42.5M505015
PG36-NC42.5AD42.5PG364715
Pipe Size: AD54.5
M50-NC54.5AD54.5M505025
M63-NC54.5AD54.5M636325
PG48-NC54.5AD54.5PG4859.326
