Waterproof Cable Gland Manufacturer

It mainly depends on the opening thread of your equipment. M series(metric) is the universal standard, pitch is 1.5mm ; pG series(German) are common in old equipment or some European equipment.
If it is a new opening, it is recommended to give priority to the M series.

Our IP68 certification means that in the case of locking the cable, it is possible to prevent dust from entering and to keep the water from entering under the specified water pressure.
A circular cable with a suitable wire diameter must be used to achieve this effect, and a flat wire needs a special inner core.

The selection of the model mainly depends on two points : one is the thread size of the mounting hole, and the other is the diameter of the cable(outer diameter).
Please select according to your cable thickness according to our 'clamping range' table.

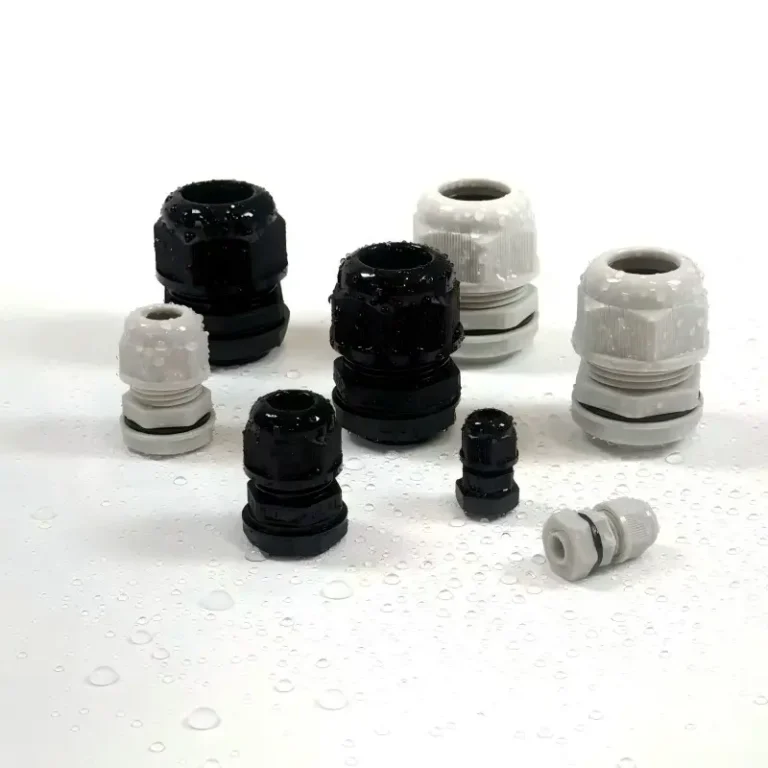

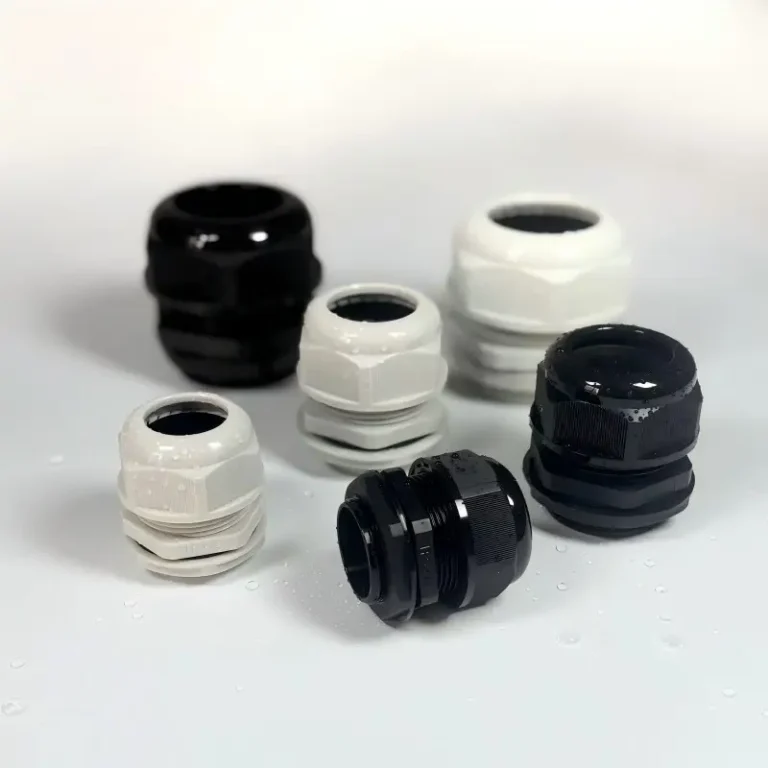

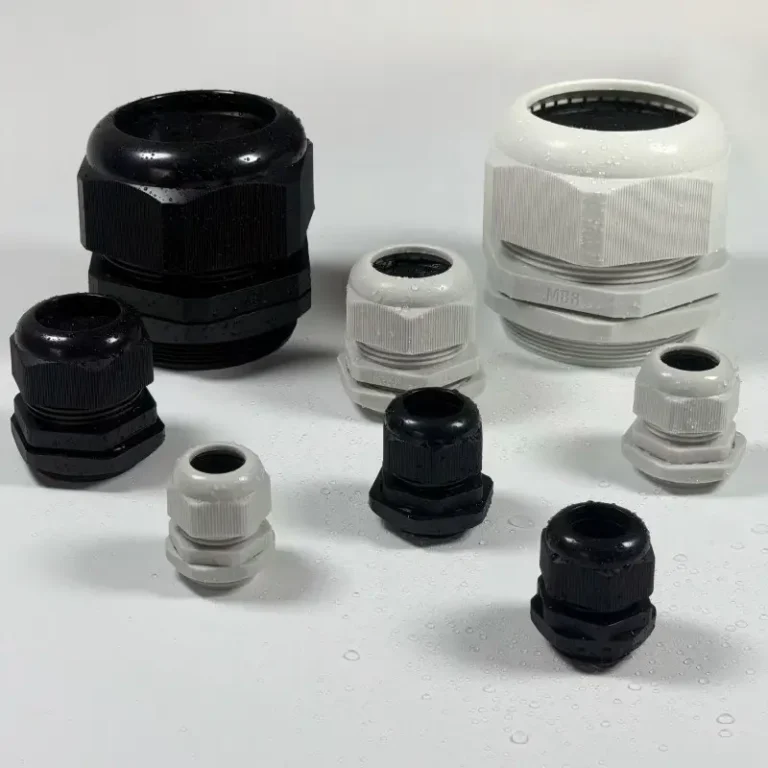

Nylon(plastic) is economical, corrosion-resistant, suitable for general indoor and outdoor use.

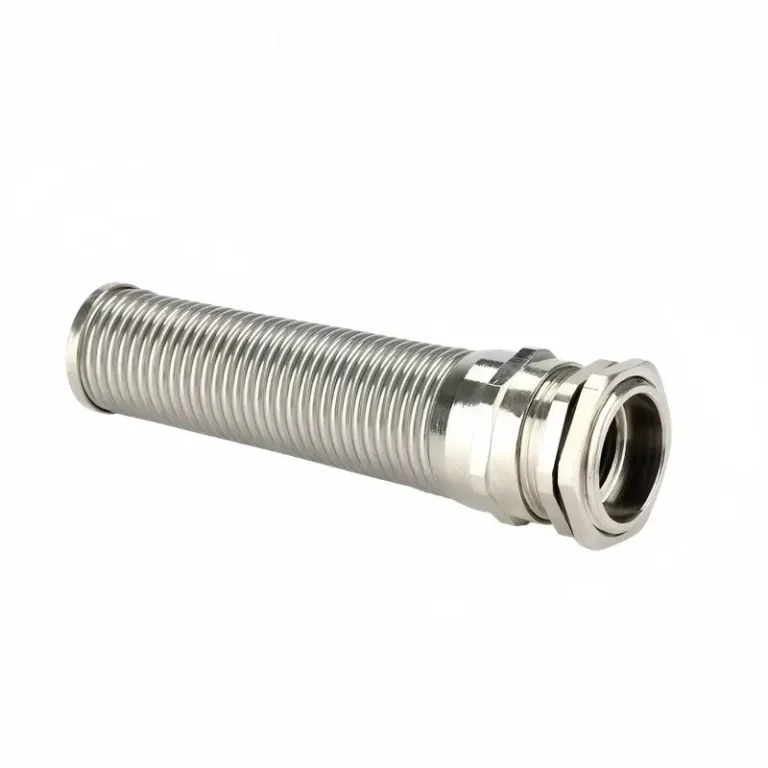

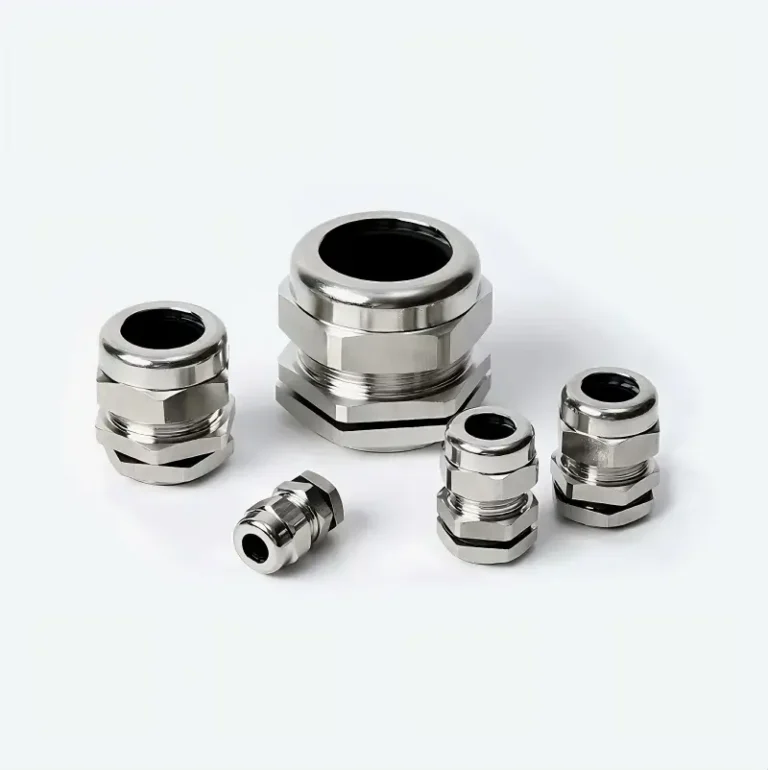

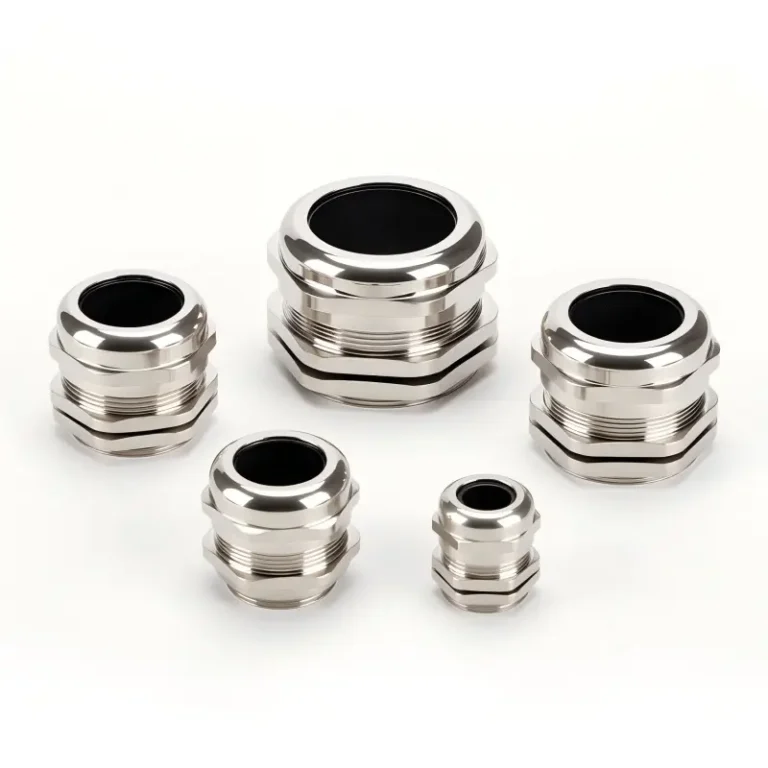

Nickel-plated brass and stainless steel(metal) have higher strength, impact resistance and higher appearance, which are suitable for heavy machinery.

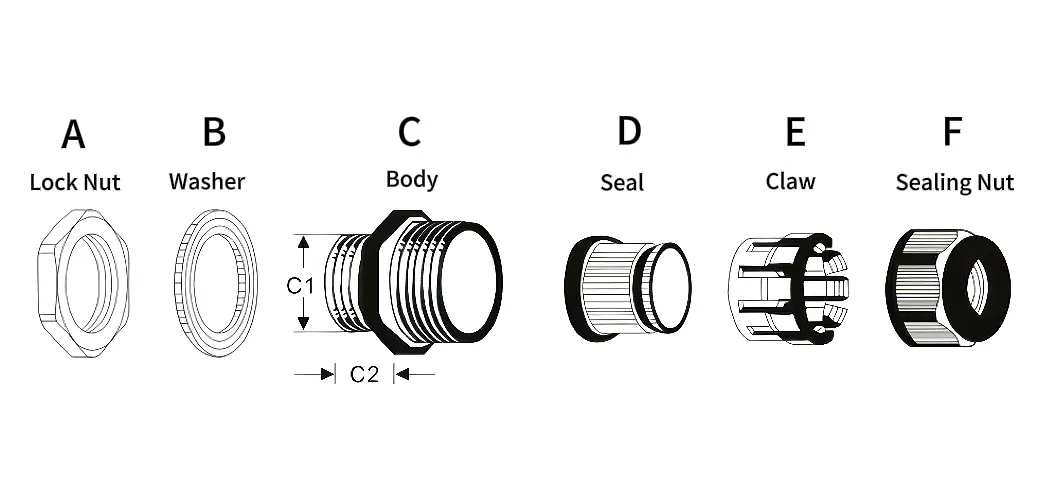

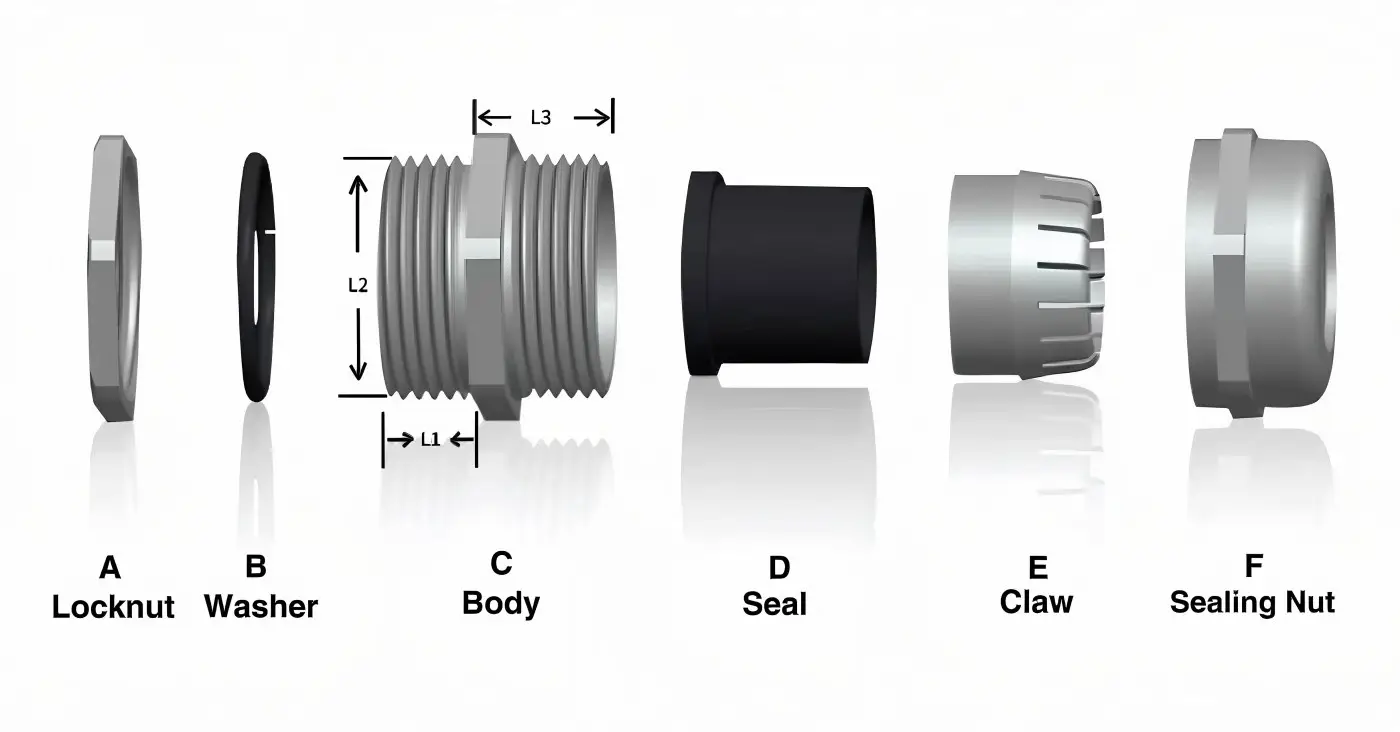

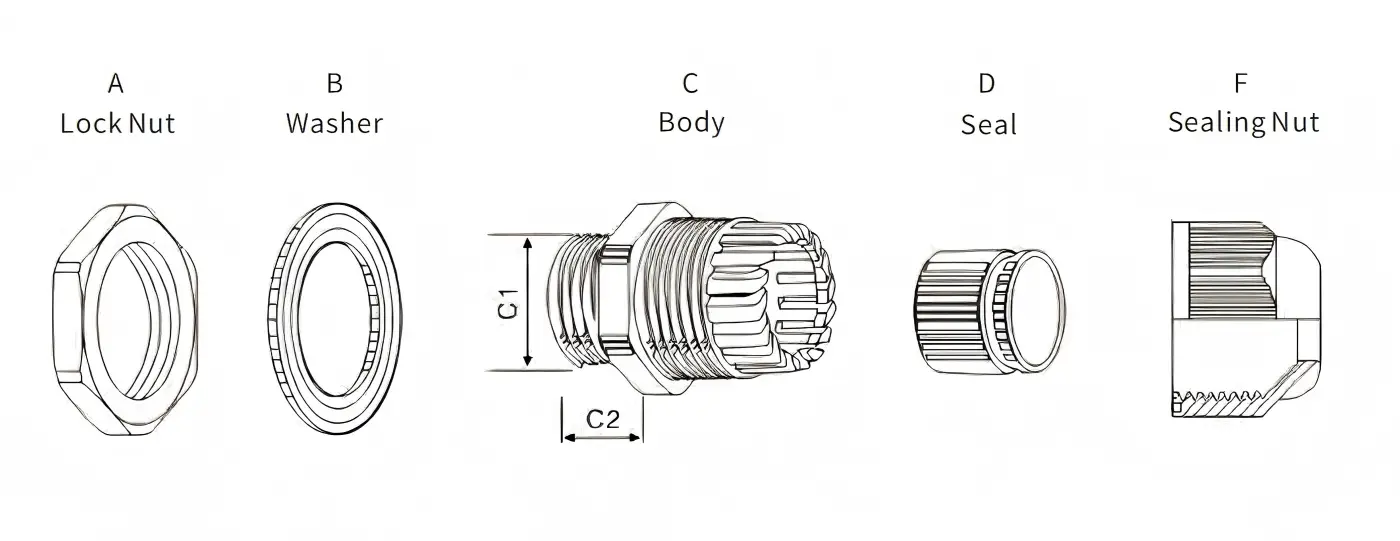

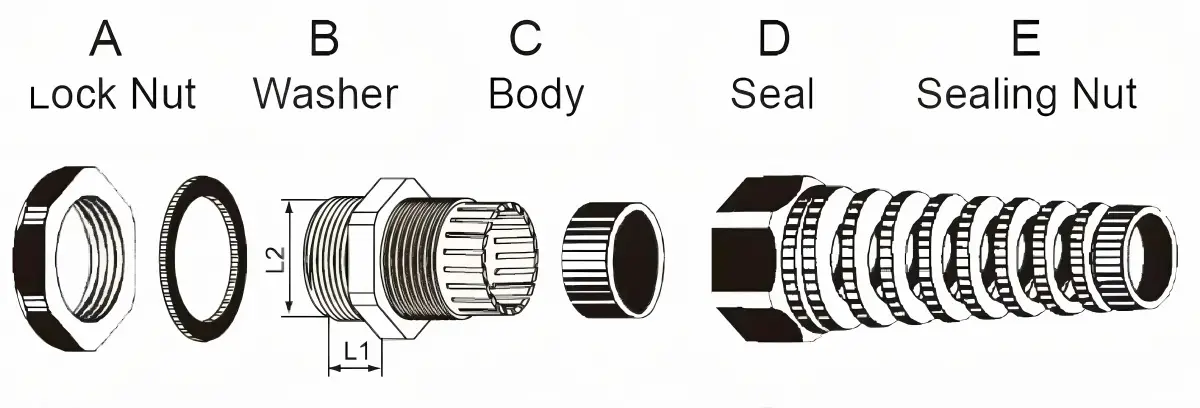

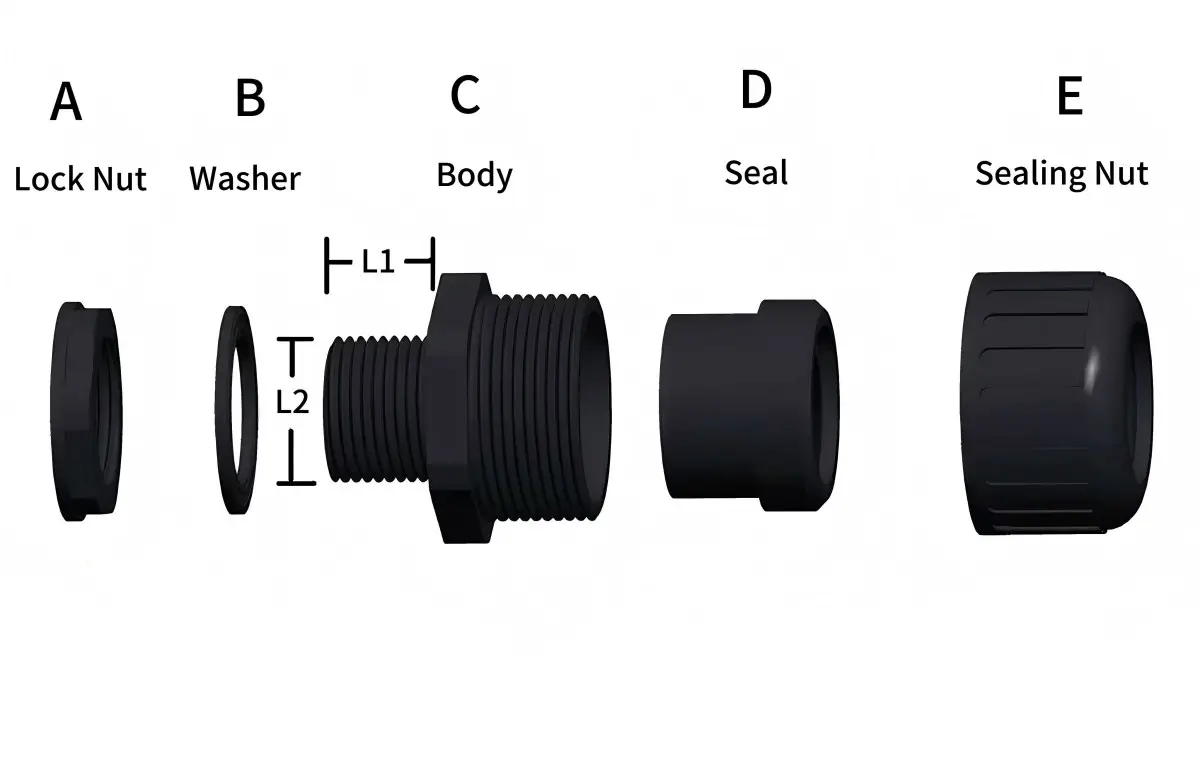

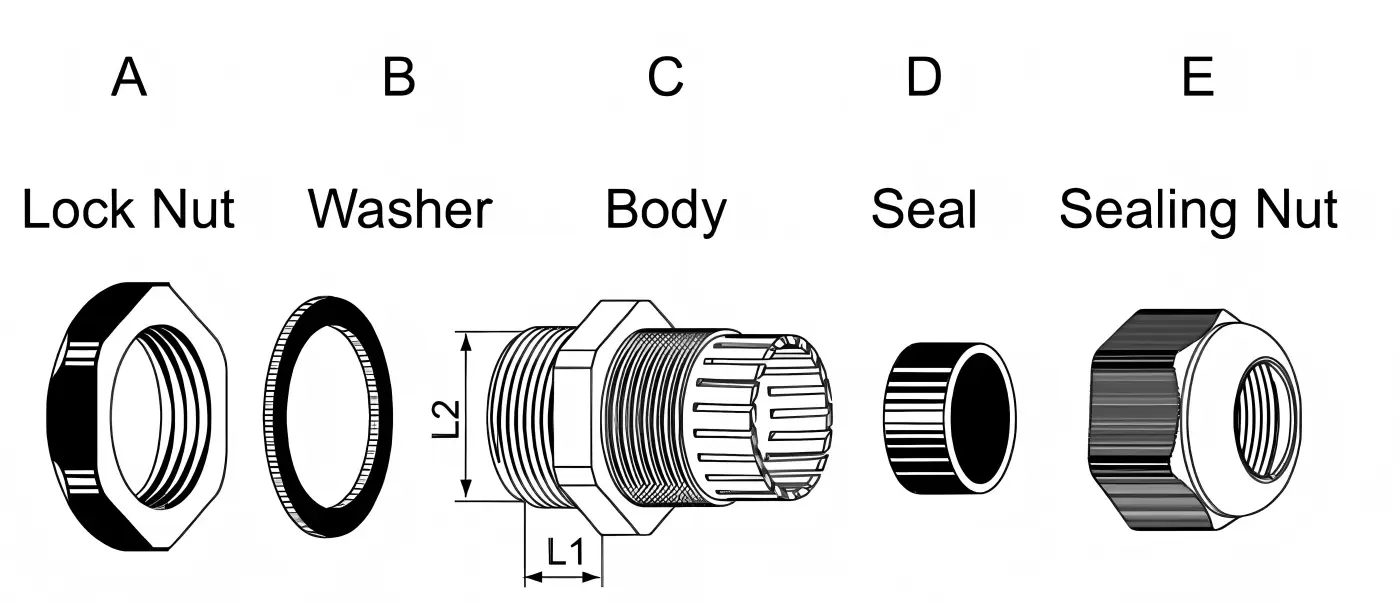

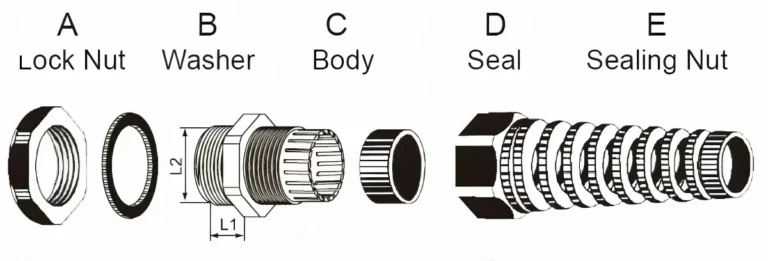

Yes, our standard packaging usually contains the main body, lock nut(Lock Nut) and rubber gasket(O-ring / gasket), which can be directly installed.

The standard joint is a hole through a line. If you have multiple flat or thin wires, we can customize the porous sealed rubber core to achieve a joint to wear multiple wires and keep waterproof.
