If you want one safe default, a circular M-series waterproof cable connector (M8/M12/M16) is the Best Overall pick for most outdoor and industrial jobs, because it balances sealing, current capacity, and global availability in one threaded format. That said, the best connector is the one matched to your environment, so this guide compares the four families you’ll actually meet and the specs that decide between them. These parts are governed by two standards worth knowing first: IEC 60529 defines the IP rating, and IEC 61076 covers the dominant M12 circular interface.
I remember replacing a whole run of corroded connectors on a coastal lighting job — the installer had used plain nylon parts in salt air, and the failure cost far more than the right connectors would have. Matching type and material to the site avoids exactly that.
The 4 Best Waterproof Cable Connector Types
How we compared them. Four waterproof cable connector families were assessed — circular M-series, rectangular/modular, push-pull, and cable-gland — across the same dimensions: mounting style, maximum IP rating, current capacity, locking method, relative cost, and best use. The basis is field experience plus the IEC 60529 and IEC 61076 standards; figures are typical and vary by manufacturer, so always confirm the data sheet.

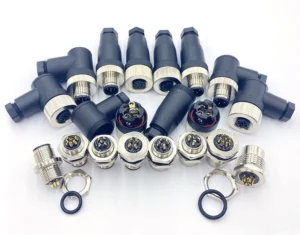

Circular M-Series (M8/M12/M16/M23) — Best Overall
Rating: ★★★★½ 4.7/5
The M-series is the industrial workhorse, and the M12 in particular is a global standard for sensors, fieldbus, and outdoor IoT.
- Mounting: panel or cable; Max IP: IP67/IP68; current: 4 A (M8) to 23 A (M23)
- Coding: M12 offers A/B/D/X keying for power, Ethernet, and DeviceNet
- Locking: threaded — strong vibration resistance
- The M12’s keyed coding prevents cross-mating, which is great because it stops a power lead being plugged into a data port.
- Authority basis: M12 standard IEC 61076-2-101. Verchil’s circular waterproof aviation connector range covers this format.
Rectangular / Modular — Best for High Pin Count
Rating: ★★★★ 4.5/5
When you need many circuits through one sealed entry, rectangular modular connectors pack high pin density into a lever-locked housing. Established examples include TE Connectivity’s HD and HTS heavy-duty series.
- Mounting: panel/bulkhead; Max IP: IP65–IP69K; current: up to ~200 A on power modules
- Locking: lever or screw; modular inserts mix power, signal, and data
- Best for: factory automation, robotics, machinery
- Authority basis: see our heavy duty connector range for this category.
Push-Pull — Best for Quick-Connect
Rating: ★★★★ 4.3/5
Where speed and one-handed mating matter, the push-pull lock connects and releases in a second. LEMO and ODU are the reference brands.
- Authority basis: sealing per IEC 60529 immersion grades
- Mounting: panel/cable; Max IP: IP68; current: signal to moderate power
- Locking: spring push-pull — fast, secure, no rotation
- Best for: medical, instrumentation, broadcast, and some XLR connector audio roles

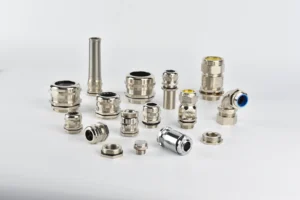

Cable Gland / Sealing Entry — Best for Panel Sealing
Rating: ★★★★ 4.4/5
Strictly a sealed cable pass-through rather than a two-part connector, the cable gland gives both strain relief and IP sealing where a cable enters an enclosure.
- Mounting: threaded into a panel; Max IP: IP68/IP69K; no contacts
- Locking: compression nut on the cable jacket
- Best for: junction boxes, enclosures, sensor housings
- Authority basis: construction per IEC 62444; see our waterproof cable gland page and the 5 best gland types roundup.
Comparison Table
| Type | Positioning | Max IP | Current | Locking | Best for |
|---|---|---|---|---|---|
| Circular M-series | Best Overall | IP67/IP68 | 4–23 A | Threaded | Sensors, fieldbus, outdoor IoT |
| Rectangular/modular | Best for high pin count | IP65–IP69K | up to ~200 A | Lever/screw | Automation, robotics, machinery |
| Push-pull | Best for quick-connect | IP68 | Signal–moderate | Push-pull | Medical, broadcast, portable |
| Cable gland | Best for panel sealing | IP68/IP69K | n/a | Compression | Enclosures, junction boxes |
Value Editorial & Buying Guide
How to Choose the Best Waterproof Cable Connector
Start from the environment, not the catalogue. First, set the IP rating: for most outdoor work IP67 is the practical minimum, while marine or submerged links need IP68 — our cable gland IP rating guide breaks down each digit. Next, match current to contact size and derate 20–25 % in hot environments. Then weigh mating cycles: industrial parts run 100–1,000 cycles, so high-reconnection jobs need a higher-rated contact and better plating. Finally, confirm the cable-entry diameter matches your cable and seal, because a size mismatch is the single most common cause of field leaks. For the full topic overview, our waterproof connector types and IP ratings guide is the pillar reference.
Key Materials and Sealing That Differentiate Them
Material decides whether a waterproof cable connector keeps its rating for years. Nylon (PA66) is light, cheap, and chemically decent for general outdoor use; PBT adds heat resistance and dimensional stability for automation; SS316L resists salt and chemicals for marine and food-grade work; and nickel-plated brass gives strength and conductivity for high-vibration sites. Sealing then does the real work: an O-ring seals the mating face, a flat washer suits vibration, per-wire seals isolate each conductor, and epoxy potting locks out water on IP68/IP69K parts. For contacts, gold plating (0.2–0.5 µm) protects low-current signals, tin suits frequently mated power lines, and silver serves RF.
Common Mistakes When Buying Waterproof Cable Connectors
Most waterproof cable connector failures trace to a few avoidable errors. First, treating an IP number as an unlimited depth rating — IP68 depth and time are manufacturer-defined, so confirm the figures. Second, ignoring cable-seal compatibility: the rating only holds with the correct cable diameter and seal ring. Third, mixing brands in a mated pair — not all M12 connectors interchange perfectly, so test insertion force and sealing with the actual assembly. I remember a smart-farm install where mismatched M12 halves passed a bench test but wept in the field within a month. Fourth, skipping strain relief, since a constantly flexed cable will eventually loosen even a perfect seal.
Who Should Buy Which Type
Filter by application rather than by price. Marine and yacht wiring should use SS316L circular or sealed connectors at IP68, following ABYC and IEC 60092 marine practice. EV charging needs connectors rated for high voltage and IP67 under IEC 62196. Factory automation leans on M12/M8 with PROFIBUS, EtherNet/IP, or IO-Link support. High-pressure agricultural washdown calls for IP69K (Deutsch DT/DTM are common). And for outdoor security and IoT, a compact IP-rated entry like our IP65 RJ45 waterproof connector protects PoE camera nodes. For low-pin power runs, our 4 pin waterproof connector guide and 6 pin waterproof connector guide go deeper.
Conclusion
For a single all-round recommendation, the circular M-series wins as Best Overall: it seals to IP68, carries 4–23 A, locks tight against vibration, and is available worldwide. Two runners-up specialize — the cable gland is the Best pick for sealing a plain cable entry, and rectangular modular connectors win when you need many circuits or high current through one housing. As the buying guide stressed, set the IP rating from your environment, match current and cable diameter, and pick the material your site demands; do that and any of these waterproof cable connectors will hold up for years.
FAQ: Choosing Waterproof Cable Connectors
What is the difference between IP67 and IP68?
IP67 covers immersion to 1 m for 30 minutes, while IP68 allows continuous immersion at a depth and time the manufacturer defines. Both are fully dust-tight. Choose IP67 for general outdoor and occasional immersion, and IP68 for underwater, buried, or constantly wet environments.
Can IP65 connectors be used outdoors?
Yes, for splash and rain-exposed spots IP65 is adequate. However, if the connector could sit in standing water or be briefly submerged — even from pooling — step up to at least IP67. The right rating depends on the wettest condition the connector will actually face.
Can waterproof cable connectors be reused?
Most can, within their rated mating cycles (commonly 100–1,000). Avoid excessive connect/disconnect, and inspect the O-ring for compression set or damage at each service. A flattened or nicked seal no longer meets the original IP rating and should be replaced.
What are M12 connectors used for?
M12 connectors dominate industrial sensors, actuators, industrial Ethernet, and power distribution in automation systems. Their A/B/D/X coding under IEC 61076-2-101 separates power, signal, and data so cables can’t be cross-mated, which is why they’re standard on factory and outdoor IoT equipment.
Which waterproof cable connector is best for marine use?
SS316L stainless circular connectors at IP68 are best for marine and salt exposure, since stainless resists corrosion the longest. Pair them with tinned-copper conductors and gold- or tin-plated contacts, and follow ABYC and IEC 60092 marine wiring practice for safety and longevity.
Do I need a shielded waterproof cable connector?
Use a shielded, metal-shell connector near motors, drives, or power cables, where electromagnetic interference would corrupt signals; ground the shield correctly for it to work. In clean, low-noise environments an unshielded housing is fine and cheaper. Match the shielding to the cable you’re using.
