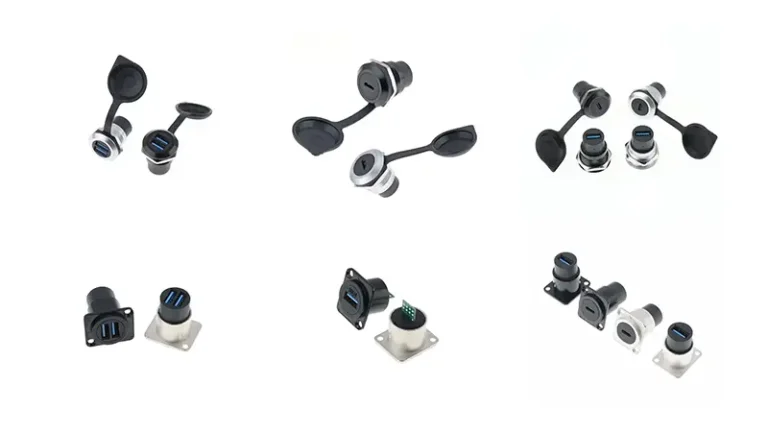

USB Panel Mount Manufacturer
We are well aware of the necessity of seamless digital connectivity and provide efficient solutions to achieve the best performance of USB Panel Mount.
We fully consider the stability of data transmission, experience the USB panel installation interface carefully created by Verchil, and enjoy a fast and reliable data interaction experience.
Dual Ports USB 3.0 Panel Mount
Dual Ports USB 3.0 Panel Screw Mounted Socket Female to Female Coupler Circular USB3.0 Connector

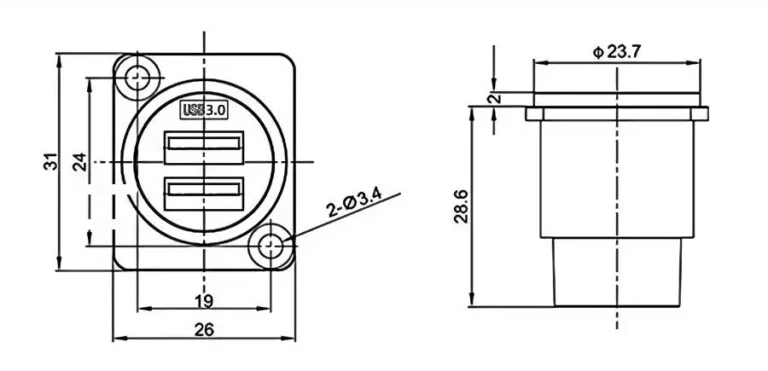

Dual Ports USB 3.0 Panel Screw Mounted Socket Female to Female Coupler D Type USB3.0 Square Connector
| Interface | Dual USB 3.0 |
| Color | Black, Silver |
| Material | Metal Flange |
| for Shell Material | Zinc Diecast |
| Contact Material | Bronze Au plated |
| Mount | Screw, panel mount |
| Insulator | PBTP |
| Insulation resistance | >500 MΩ |
| Waterproof | IP65 |
| Durability | >500 cycles |
| Temp. range | -40~+85°C |
Type C Panel Mount

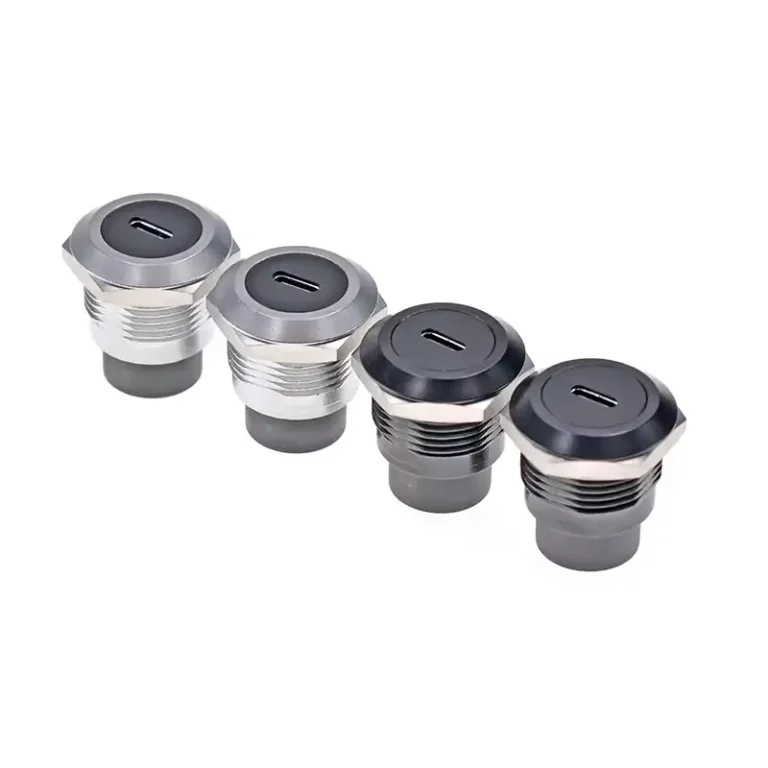

Type C Fixed Panel Mount Coupler Socket Circular Female to Female Bulkhead Extension Adapter

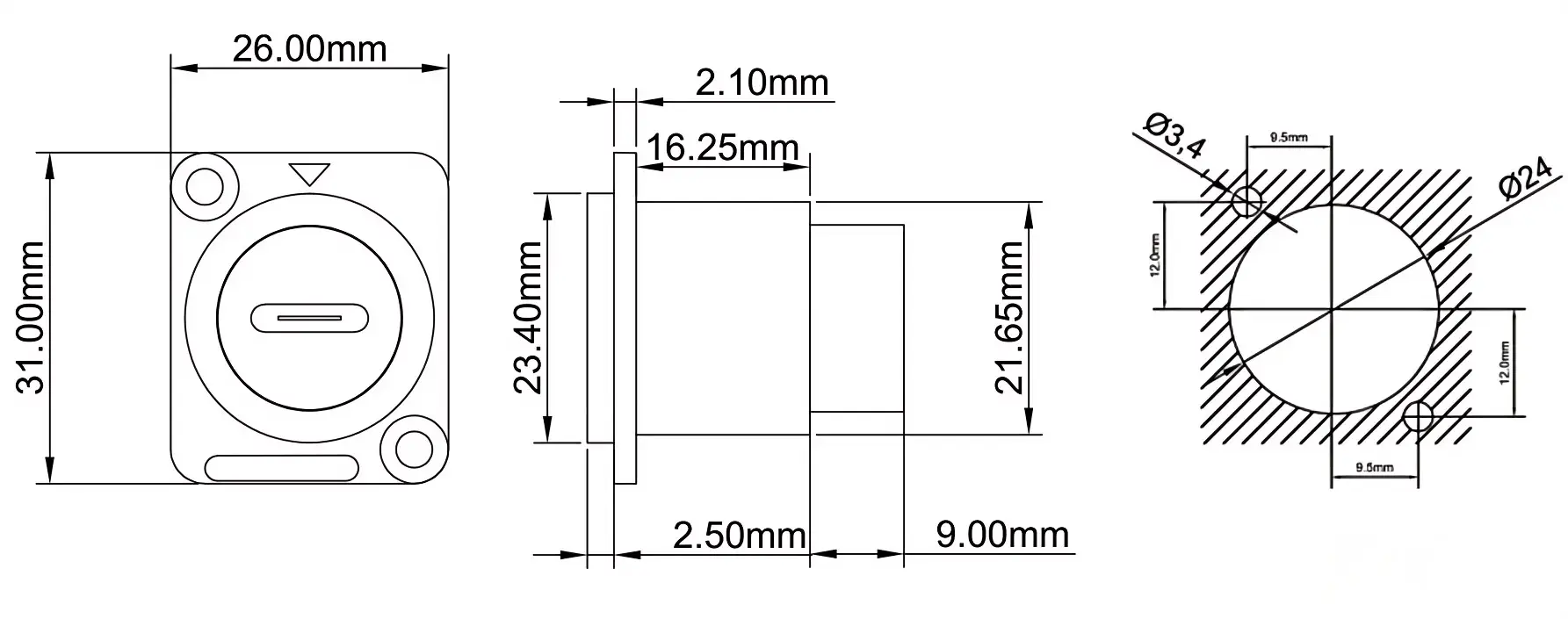

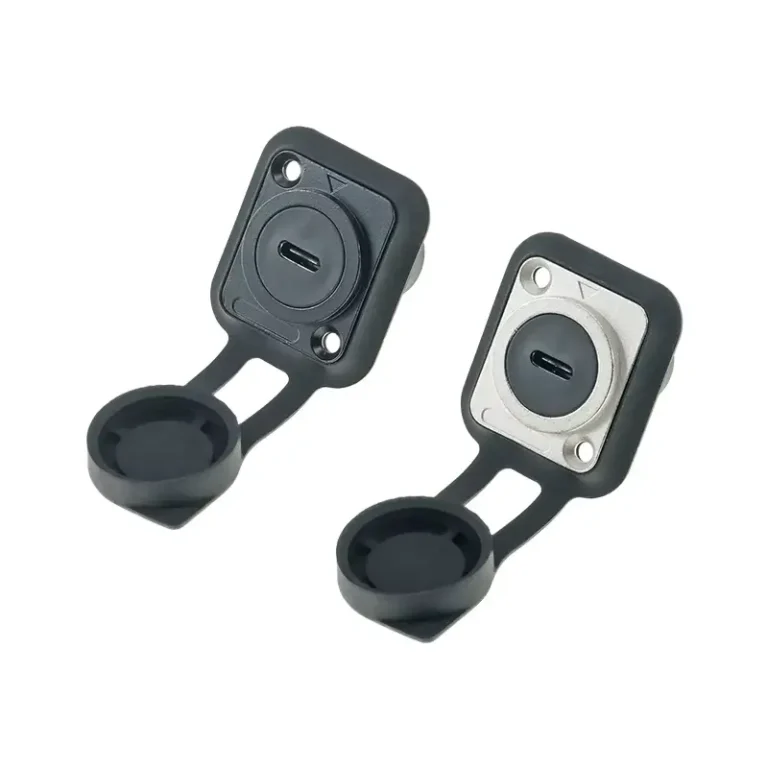

Type C Fixed Panel Mount Coupler Square Socket D type Female to Female Bulkhead Extension Adapter
| Interface | Type C |
| Color | Black, Silver |
| Material | Metal Flange |
| for Shell Material | Zinc Diecast |
| Contact Material | Bronze Au plated |
| Mount | Screw, panel mount |
| Insulator | PBTP |
| Insulation resistance | >500 MΩ |
| Waterproof | IP65 |
| Durability | >500 cycles |
| Temp. range | -40~+85°C |
Type C to USB 3.0 Socket Panel Mount
Type C to USB 3.0 Socket Fixed Panel Mount Coupler Circular Female to Female Chassis Converter Docking
Type C to USB 3.0 Socket Fixed Panel Mount Coupler D type Female to Female Chassis Converter Docking
| Interface | Type C to USB 3.0 |
| Color | Black, Silver |
| Material | Metal Flange |
| for Shell Material | Zinc Diecast |
| Contact Material | Bronze Au plated |
| Mount | Screw, panel mount |
| Insulator | PBTP |
| Insulation resistance | >500 MΩ |
| Waterproof | IP65 |
| Durability | >500 cycles |
| Temp. range | -40~+85°C |
USB 3.0 Socket Panel Mount

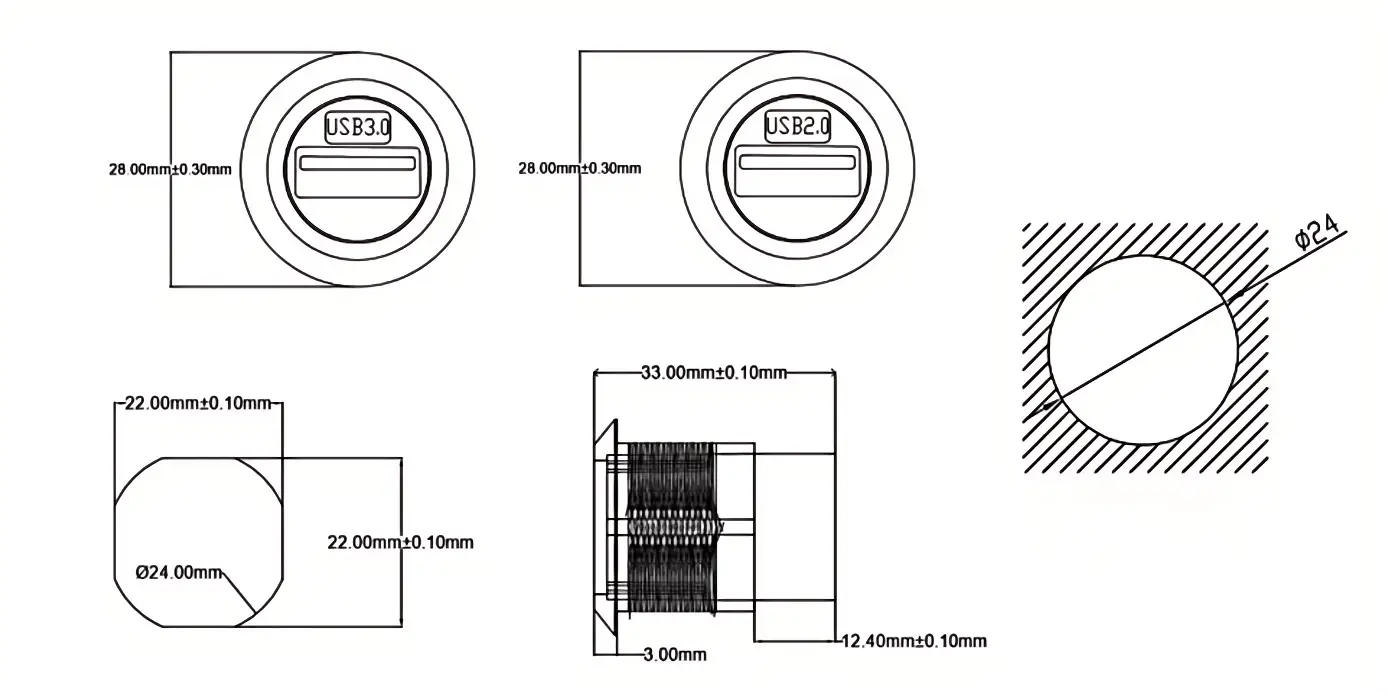

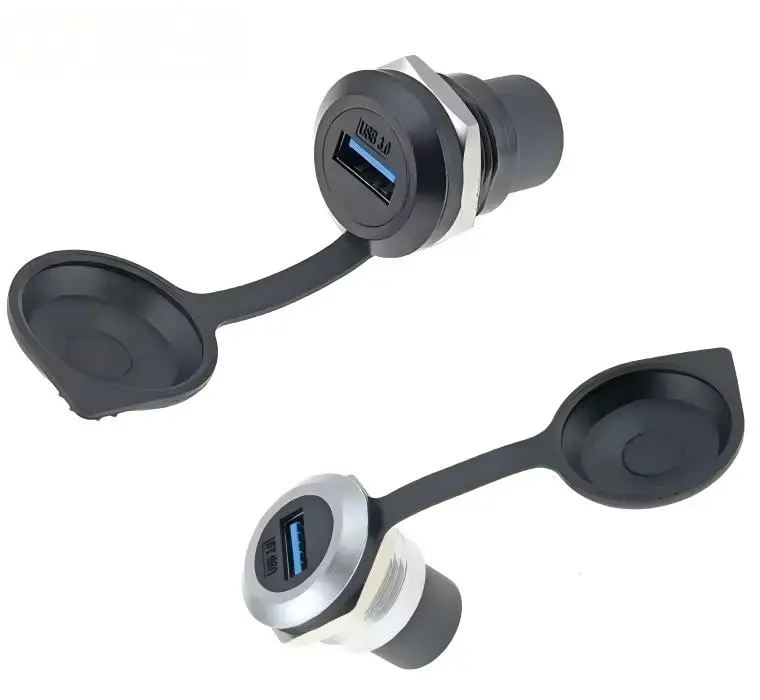

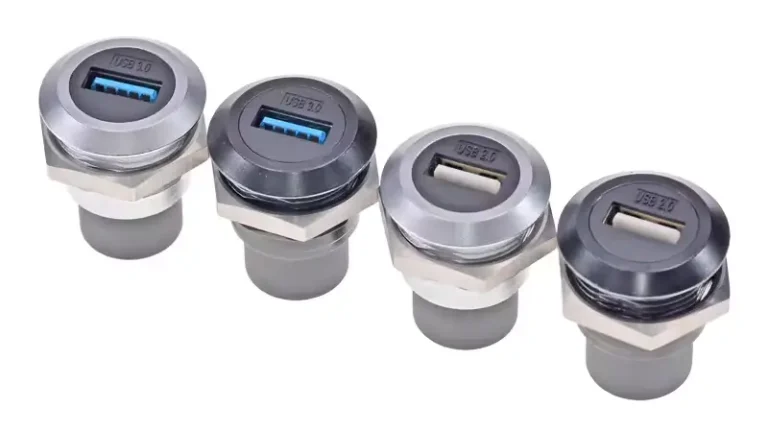

USB3.0 Socket Circular Fixed Flush Mount Adapter High Speed Data Transfer Compatible with USB Devices

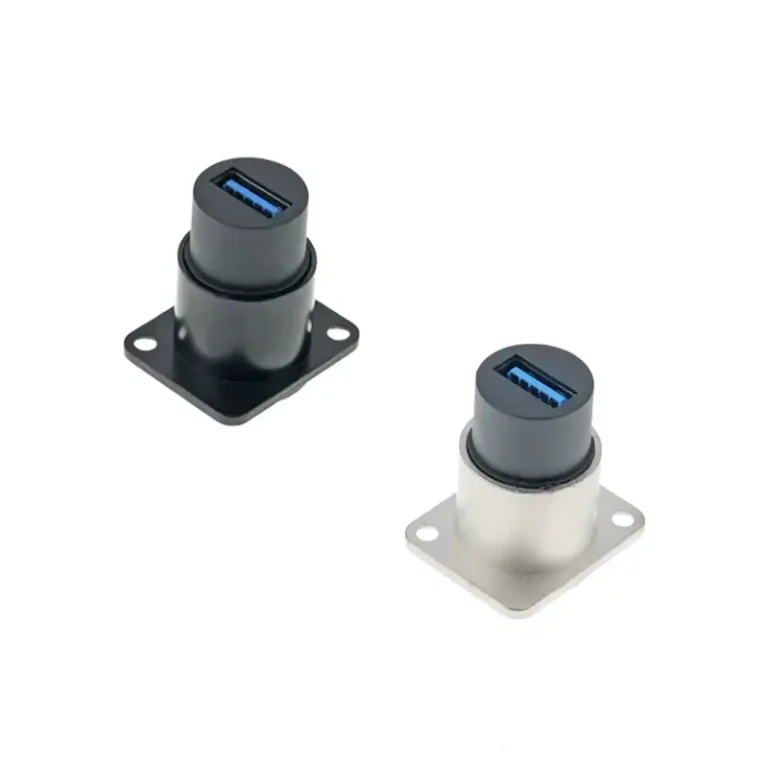

USB3.0 Socket D Type Fixed Flush Mount Adapter High Speed Data Transfer Compatible with USB Devices
| Interface | USB 3.0 |
| Color | Black, Silver |
| Material | Metal Flange |
| for Shell Material | Zinc Diecast |
| Contact Material | Bronze Au plated |
| Mount | Screw, panel mount |
| Insulator | PBTP |
| Insulation resistance | >500 MΩ |
| Waterproof | IP65 |
| Durability | >500 cycles |
| Temp. range | -40~+85°C |
USB3.0 to PCB Board Socket Panel Mount

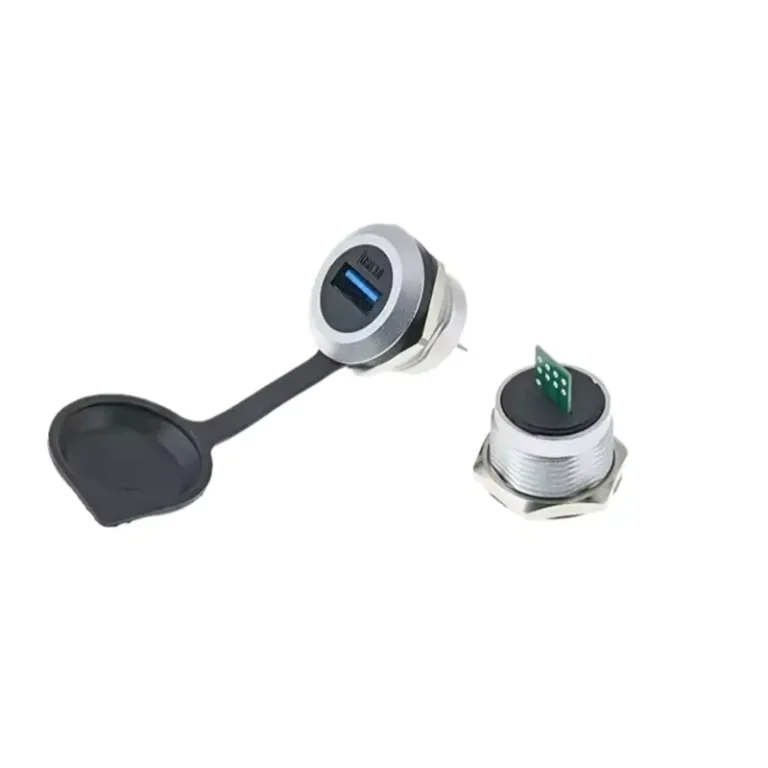

USB3.0 to PCB Board Socket Fixed Panel Mount Coupler Circular Converter Docking

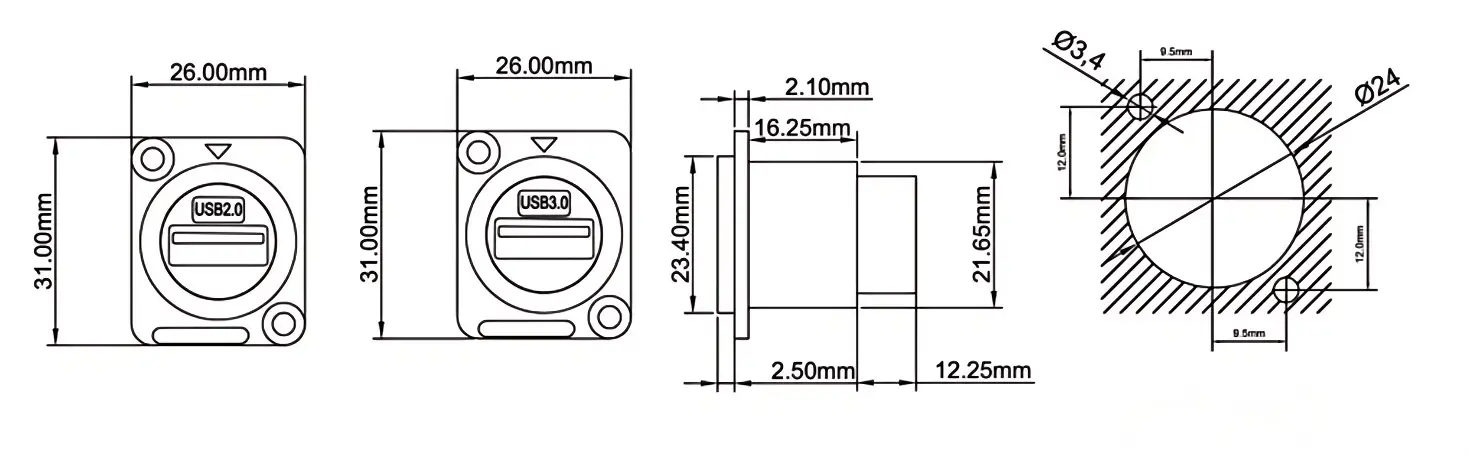

USB3.0 to PCB Board Socket Fixed Panel Mount Coupler D type Converter Docking
| Interface | USB 3.0 to PCB Borad |
| Color | Black, Silver |
| Material | Metal Flange |
| for Shell Material | Zinc Diecast |
| Contact Material | Bronze Au plated |
| Mount | Screw, panel mount |
| Insulator | PBTP |
| Insulation resistance | >500 MΩ |
| Waterproof | IP65 |
| Durability | >500 cycles |
| Temp. range | -40~+85°C |
USB 3.0 to Type C Socket Panel Mount
USB 3.0 to Type C Socket Fixed Panel Mount Coupler Circular Female to Female Chassis Converter Docking
USB 3.0 to Type C Socket Fixed Panel Mount Coupler D type Female to Female Chassis Converter Docking
| Interface | USB 3.0 to Type C |
| Color | Black, Silver |
| Material | Metal Flange |
| for Shell Material | Zinc Diecast |
| Contact Material | Bronze Au plated |
| Mount | Screw, panel mount |
| Insulator | PBTP |
| Insulation resistance | >500 MΩ |
| Waterproof | IP65 |
| Durability | >500 cycles |
| Temp. range | -40~+85°C |
Verchil Supply Best USB Panel Mount
Verchil USB Panel Mount Advantages
Precision manufacturing: Each USB Panel Mount is carefully fabricated with corrosion-resistant gold-plated contacts and precision insulating materials to ensure low-latency high-speed transmission and excellent durability.
Rigorous testing: Each USB Panel Mount is subjected to rigorous data integrity and plug-in life testing to eliminate connection errors and ensure consistent performance of the final product.
Your Trusted USB Panel Mount Factory In China
When you choose Verchil as the supplier of USB Panel Mount, you are working with a company dedicated to providing excellent products and services.
Reasonable price, strong manufacturing capacity, reliable quality and fast delivery time make us a trusted partner for global enterprises.
USB Panel Mount FAQ
Want to know more about us and HDMI panel mount products? No worries, here are some answers for you.
Can it be used for charging?
Yes. It supports standard data transmission and power transmission. If high-power fast charging is required, please confirm the specifications of the cable and power adapter.
Are the two ends of the interface interchangeable?
We have multiple configurations. The most common is the straight head of the USB A bus to the USB A bus. We also have USB A to USB B, or USB Type-C panel mounting interface.
Are the waterproof covers connected?
Yes, the waterproof cover is usually fixed on the base through a rubber chain to prevent the cover from being lost, which is very convenient to use.
Can it be used in vibration environment(such as vehicles and ships)?
Yes. Our connector has a compact internal structure and good seismic performance, which is very suitable for vibration environments such as modified vehicles and ship dashboards.
What is its installation size?
We mainly provide a standard D-Shape flange mounting size, which is a standard size for the industry and can perfectly match most existing audio/video panel openings.
