To solder an XLR connector: strip 25–30 mm of cable jacket, pre-tin the three conductors, slide on the boot and strain relief, then solder Pin 1 (Ground), Pin 3 (Cold), and Pin 2 (Hot) at 350–370 °C. Each joint should be bright and smooth. Finally, test continuity with a multimeter before use.
Ever been plagued by hum in a microphone cable right before a show? Because the culprit is almost always a cold solder joint or a broken connection inside the plug, learning to solder XLR connectors yourself is one of the most worthwhile skills any audio professional can build. When you can solder, you save costs, control quality, and repair a fault on the spot — rather than cancelling a performance over one faulty cable.
Whether you’re an experienced sound engineer, a home-studio producer, or a first-time DIY enthusiast, this guide walks you through every step — from choosing tools to testing the finished cable — in clear, practical language.
What Is an XLR Connector? Quick Refresher
The XLR connector is a rugged, locking electrical connector that’s the industry standard across professional audio, broadcast, and stage lighting. The 3-pin version is the most common, carrying balanced audio — two signal conductors of opposite polarity plus a grounded shield.
Because the balanced design cancels electromagnetic interference (EMI) picked up along the cable, XLR far outperforms unbalanced connectors (like RCA or TS plugs) on long runs and in electrically noisy environments. Originally developed by Cannon Electric and popularized by the ITT Cannon brand, it remains the professional benchmark. For the full fundamentals, see our XLR connector guide.
XLR Connector Pinout: The Role of Each Pin
Each of the three pins has a specific function — because a wrong connection causes no signal, phase reversal, or a short circuit, verify the pinout before soldering:
| Pin Number | Function | Standard Wire Color | Explanation |
|---|---|---|---|
| Pin 1 | Ground / Shield | Bare copper or green | Connect braid or foil shield to prevent EMI |
| Pin 2 | Hot / Positive | Red | Carries the non-inverted audio signal |
| Pin 3 | Cold / Negative | Black or white | Carries the inverted signal (common-mode noise rejection) |
For complete pin-by-pin diagrams across 3/4/5-pin variants, see our XLR connector pinout guide.
💡 Pro tip: Because some older or non-standard equipment reverses Pin 2 and Pin 3, always check the device’s wiring diagram before soldering. The modern standard is Pin 2 Hot (AES14-1992).
Why learn to solder XLR connectors?
Affordable pre-made cables are everywhere — so why solder your own? Here’s why professionals and serious enthusiasts insist on building their own:
- Cost savings — An XLR connector costs under $3, while a 10-foot finished cable of the same quality often runs $20–40. When you build in volume, the difference adds up fast.
- Custom length — Because you cut the cable to the exact length needed, you eliminate messy excess coil — which is not only untidy but can slightly affect signal through inductive effects.
- On-site repair — If you find a faulty cable before rehearsal, a soldering iron fixes it in 10 minutes. Without the skill, you cancel the show.
- Full quality control — Cable brand, connector brand, conductor gauge — because you choose each link in the chain, nothing is left to compromise.

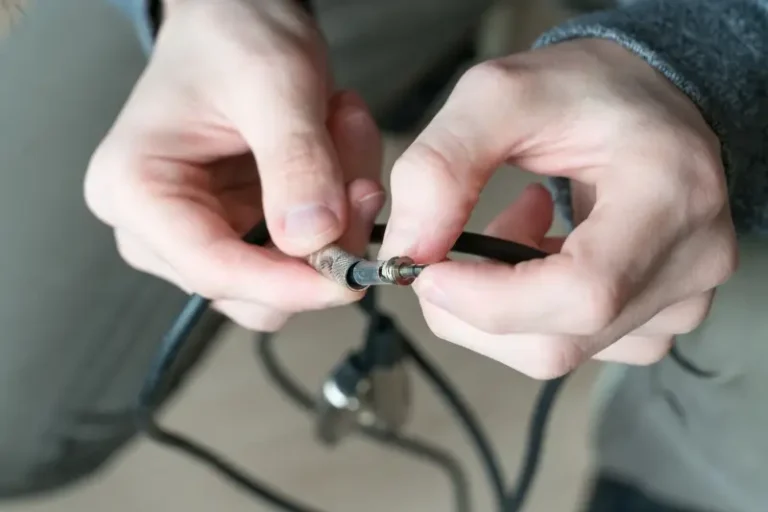

Tools and materials required
Adequate preparation is the key to making audio connector soldering cleaner, more efficient, and less frustrating. Before you begin, please have the following items ready.
Necessary tools
Soldering Iron – 25-40W, temperature adjustable type. Avoid using cheap fixed power soldering iron.
Solder – 60/40 rosin core solder, wire diameter 0.8mm. This alloy has good fluidity at moderate temperature and is a standard choice for audio engineering.
Wire Strippers – to match the cable diameter, usually 22-24 AWG inner conductor.
Helping Hands Tool – Because a shaky connector causes cold solder joints, a helping-hands jig holds it steady while you solder — and protects your hands from burns.
Hot air gun or lighter – for Heat-Shrink Tubing.
Multimeter – Each finished cable must pass the Continuity Test. Using a dedicated cable tester is more efficient.
Soldering-iron tip cleaner — a brass-wire ball or damp sponge keeps the tip clean.
Materials
XLR connectors – NC3MXX (male) and NC3FXX (female) are professional standards. Amphenol is as good as Switchcraft and is widely used in professional installation projects.
Balanced Microphone Cable – Mogami W2534, Canare L-4E6S (star four-core) or Belden 1192A are recommended for studio quality.
Heat – Shrink Tubing-size needs to be able to be inserted into the solder joint area.
How to Solder XLR Connectors: 5 Simple Steps
Each time strictly in accordance with the following five steps, you will continue to produce professional, high reliability balanced audio cable.
Step 1
Prepare the Cable
Cut the cable to length, then:
- Strip 25–30 mm (about 1 inch) of outer jacket with wire strippers, taking care not to nick the inner conductors.
- Twist the braided shield into a single strand. If the cable uses foil shielding, fold back the foil and gather the drain wire.
- Strip 5–7 mm of insulation from each inner conductor to expose bare copper.
- Pre-tin the three conductors — touch the iron to the wire, then feed a little solder. Because pre-tinning improves flow, this step significantly raises final joint quality.
Key reminder
Before soldering, slide the heat-shrink tubing onto the cable. Once the connector is assembled, you can’t add it.
Step 2
Disassemble and Check the Connector
Disassemble the XLR connector. A typical Neutrik model has three parts: a backshell, a strain-relief clamp, and the connector body with solder cups.
Check the pin numbers molded into the connector body. Confirm the standard pinout: Pin 1 = Ground, Pin 2 = Hot (positive), Pin 3 = Cold (negative). Because oxidation prevents good solder flow, verify each solder cup is clean and bright — free of impurities or oxidation — before you start.
Step 3
Slide the Cable Into the Shell
Because beginners most often skip this step — and then have to desolder every joint when they realize — do it now. Before soldering any wire, slide the cable through the backshell and strain-relief clamp first. Position it so each conductor reaches its solder cup with a few millimeters of margin: enough room to work, but not so long that wires touch adjacent pins.
Step 4
Solder Each Wire to Its Pin
This is the core of the process. Heat the soldering iron to 350–370 °C (660–700 °F).
Recommended soldering sequence:
- Pin 1 (Ground/Shield) — Because the shield conductor is thicker and needs more heat, solder it first.
- Pin 3 (Cold/Negative) — the thinner inner conductor, second.
- Pin 2 (Hot/Positive) — the signal’s positive phase, last.
For each pin:
Remove the iron and keep the wire completely still for 2–3 seconds while the joint cools and solidifies.
Insert the pre-tinned wire into the solder cup.
Because heating the joint (not just the wire) makes solder flow properly, touch the iron tip to the solder cup itself.
After 1–2 seconds, feed solder into the joint — it should flow smoothly and fill the cup.
Good joint vs cold joint
A good solder joint is bright and smooth with a slight concave shape. Because a cold solder joint looks dark, rough, or grainy — and fails in use — reheat and reflow it immediately if you spot one.
Step 5
Reassemble and Test
Once all three joints have cooled (about 10–15 seconds):
- Slide the heat-shrink tubing over the joints and shrink it with a hot-air gun.
- Fasten the strain-relief clamp to the cable jacket — because this transfers any pulling force to the jacket, it protects the solder joints from tension.
- Reassemble and close the connector housing.
Then test with a multimeter (continuity mode):
- Same pin, both ends → continuity (beep)
- Different pins → no continuity (no short)
Because a cable that looks perfect can still have a hidden fault, never skip this test. For the female-specific assembly view, see our XLR female connector guide; for the male side, see our XLR male connector guide.
Common XLR Soldering Errors (and How to Fix Them)
Even experienced technicians will inevitably make these mistakes. Identifying in advance can save a lot of time and energy.
| Error | Consequence | Solution |
|---|---|---|
| Cold solder joint | Intermittent noise, signal dropouts | Reheat and add fresh solder |
| Solder bridge | Short circuit, no signal | Remove excess with desoldering wick |
| Forgetting to slide on the backshell first | Must fully disassemble and redo | Always slide the shell on before soldering — no exceptions |
| Pin 2 / Pin 3 reversed | Phase reversal, lost stereo width | Check the pinout before every job |
| Stripping too much insulation | Exposed conductor risks shorting | Strip only 5–7 mm per conductor |
| Feeding solder to the iron, not the joint | Cold joint, poor adhesion | Heat the solder cup first, then feed solder to the joint |
Frequently Asked Questions
What is the most suitable solder for welding XLR connectors?
It is recommended to use 60/40 rosin core solder with a wire diameter of 0.8 mm. The alloy has a moderate melting point and can flow smoothly into the welding cup to generate a reliable bright solder joint. Lead-free solder is also available, but requires a higher temperature (about 400°C), which is more difficult for beginners to control. Never use acid solder – it will corrode the audio connector.
Does soldering an XLR connector require expensive soldering irons?
Not necessarily, but Temperature-Controlled Iron can make the welding process much more stable. The cheap fixed-power soldering iron is prone to overheating, causing the cable sheath or connector housing to deform. If you’re planning to build more than a few cables, it’s worth investing in a mid-range soldering station – better finished product quality and longer service life will make it worth it.
How to judge whether the solder joint is qualified?
Qualified solder joints should be bright, smooth, complete filling of the welding cup, and not overflow to the adjacent pins. Gently pull the wire – there should be no displacement. Then it is verified by the multimeter on-off mode. Even if the cable ‘looks OK’, don’t skip the multimeter test – many virtual welds seem normal during visual inspection, but expose the problem after physical force.
What is the difference between male and female XLR connectors?
Male XLR Connector is usually used at the output end of a cable, such as a plug on a microphone. The Female XLR Connector is used at the input end, such as access to one side of the Mixer, Preamp or Interface. The welding method of the two is exactly the same as the definition of the pin.
Which XLR connector brands are professional?
Neutrik (Switzerland) is the industry’s recognized gold standard, widely used in touring, broadcasting and recording studios. Verchil, Amphenol and Switchcraft are also recognized and widely used in professional installation projects. Please avoid using unbranded connectors with unknown sources – in professional occasions, the cost savings are often far from sufficient to compensate for reliability risks.
Can I use standard XLR connectors with star quad cable?
Yes. Because star quad cable (like Canare L-4E6S) arranges four conductors in a star pattern, it offers far better noise rejection than ordinary two-conductor cable — ideal for ultra-long runs or noisy environments. Wire it like this: connect the two “hot” conductors in parallel to Pin 2, the two “cold” conductors in parallel to Pin 3, and the shield to Pin 1.
What soldering iron temperature is best for XLR connectors?
350–370 °C (660–700 °F) is the sweet spot for soldering XLR connectors with 60/40 rosin-core solder. Because too low a temperature causes cold joints while too high can melt the connector insert or cable jacket, a temperature-controlled iron makes the job far more reliable. When pre-tinning thicker shield conductors, you can briefly go slightly higher, but return to the 350–370 °C range for the signal pins.
Pro Tips for Better Results Every Time
Before and after each soldering job to prevent oxidation and maintain efficient heat conduction.
The soldering iron head is cleaned regularly during the operation, and the use of brass wire cleaning ball-soiled soldering iron head will significantly reduce the quality of solder joints.
Operate in a well-ventilated environment. Rosin flux smoke inhalation for a long time will produce stimulation. Occasionally, use a small fan to blow the smoke away from the face; if frequent welding is required, it is recommended to have a special smoke extractor (Fume Extractor).
Label each cable at both ends, indicating the line number and length. A small piece of tape plus a marker pen can save hours of wiring investigation in the future.
If you are a novice in welding, first practice on scrap cable and then on the real connector. A 5-minute warm-up exercise can greatly improve the quality of the first solder joint.
Establish a line record, record the production and testing of each cable-especially in the rental, tour or installation engineering environment is very practical.
Summary: Master the Core Skill of Soldering XLR Connectors
Because learning to solder XLR connectors takes minimal time yet pays off for years, it’s one of the highest-return skills in audio. With a suitable soldering iron, quality connectors, a clear grasp of the XLR pinout, and the five-step process above, you can consistently produce professional-grade balanced cables that outperform most pre-made ones.
Because the gap between amateur and professional audio often comes down to these details — stable connections, well-made cables, the ability to repair on the spot — start with your first cable, test carefully, and build skill step by step.
For quality connectors to practice and build with, browse Verchil’s XLR connector range and TRS connector range, or explore our companion guides: XLR connector pinout, XLR male connector guide, and mini XLR connector tips. For bulk or custom cable assemblies, contact our technical team.
