PowerCon Manufacturer
We gain an in-depth understanding of the power transmission standards and provide robust solutions to achieve the best performance of PowerCON.
We fully consider the safety details of the product, experience the PowerCON connector carefully created by Verchil, and enjoy a safe and uninterrupted power connection experience.
High Quality 16A PowerCon

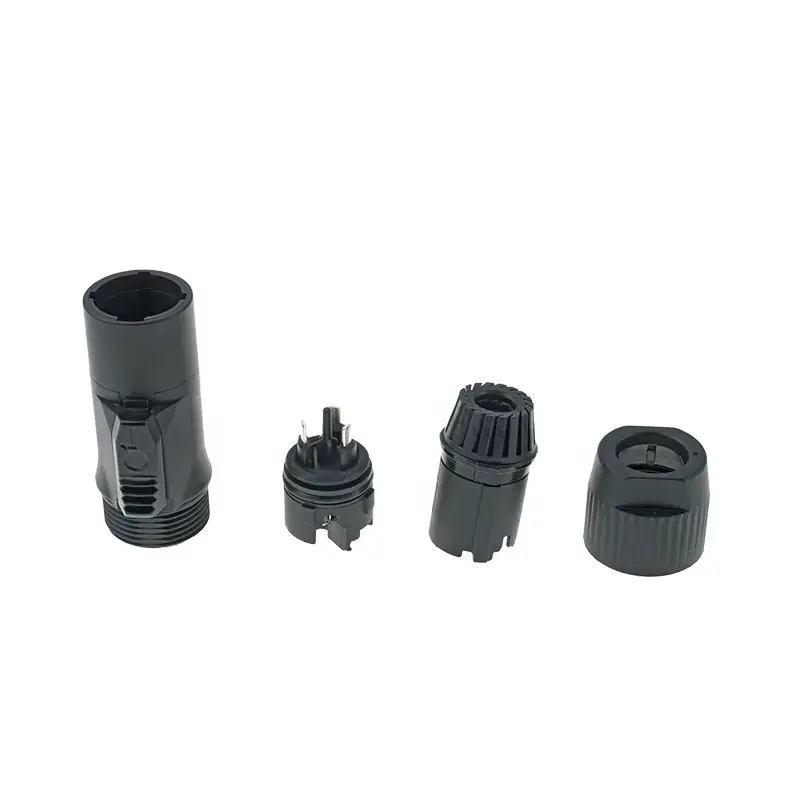

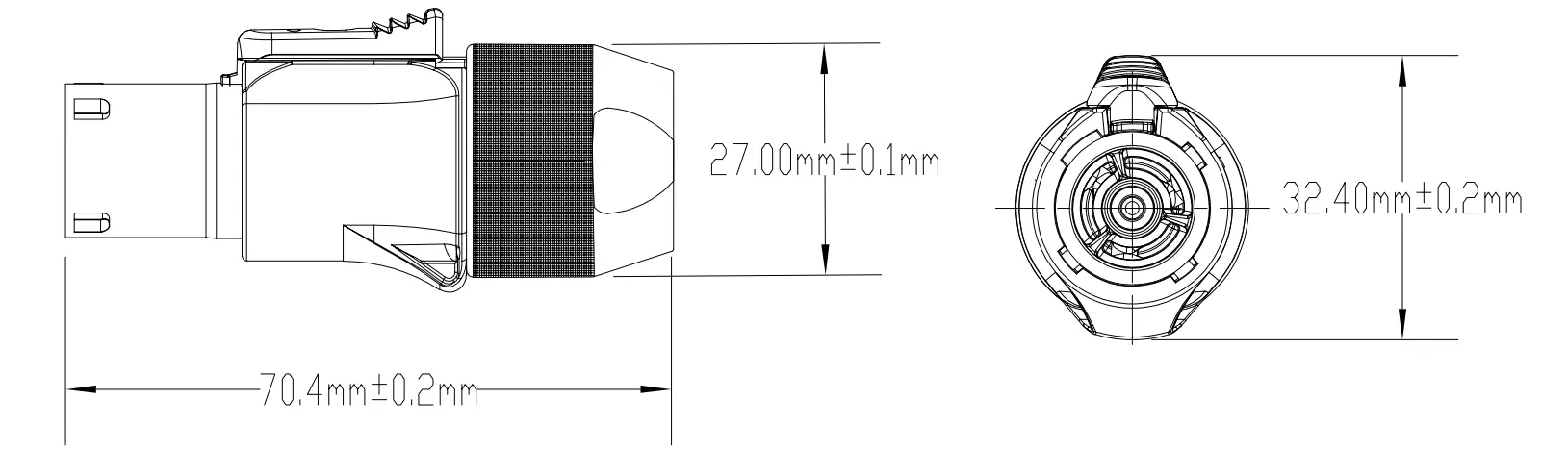

PowerCon Waterproof 3 Cores Female Plug Power Connector NAC3FX-W

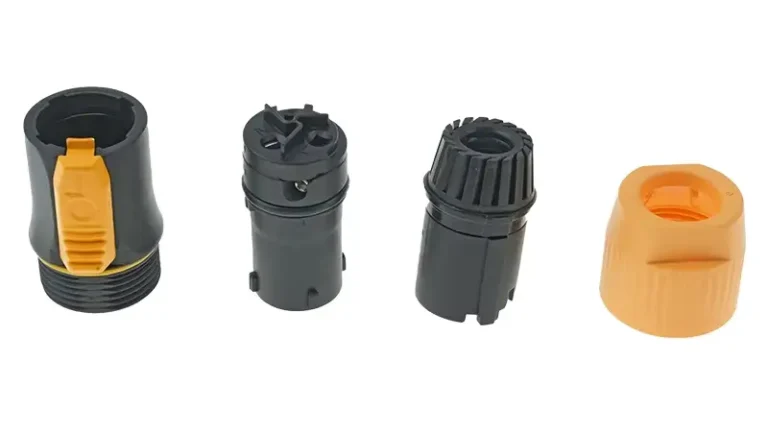

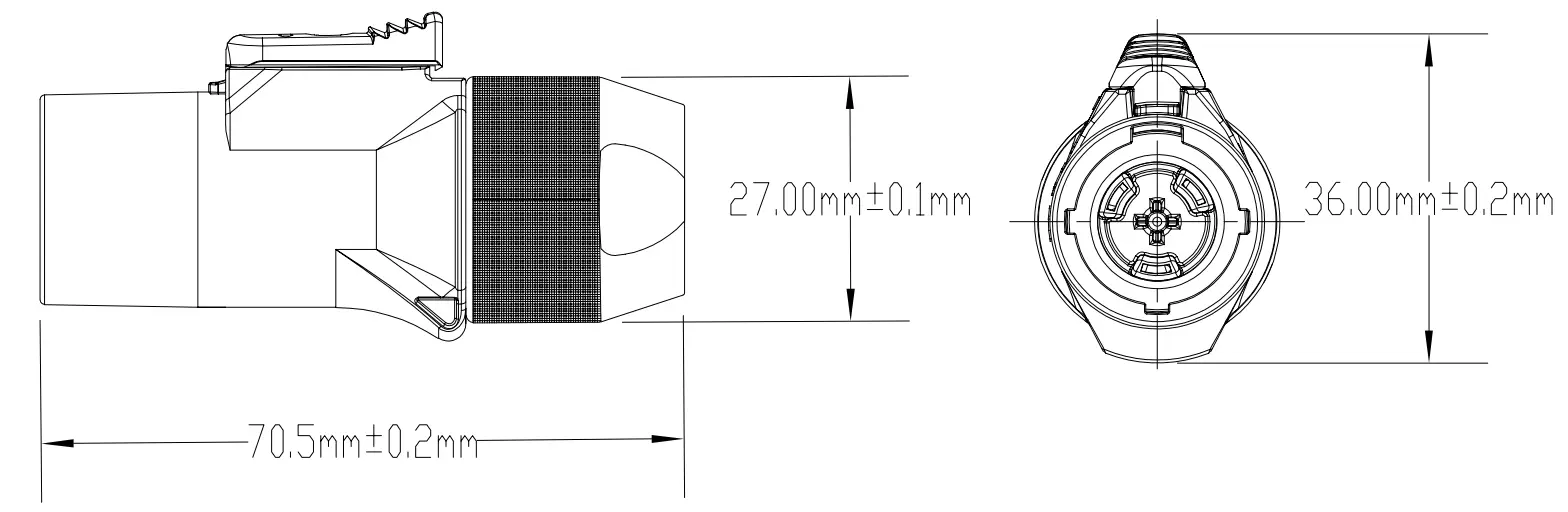

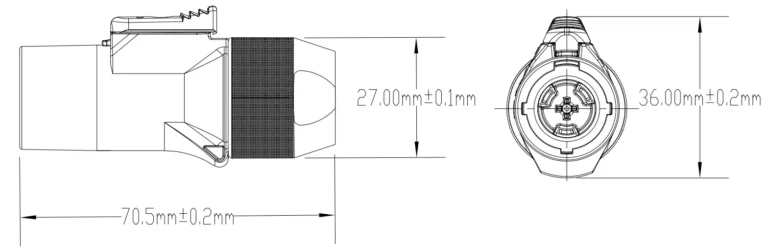

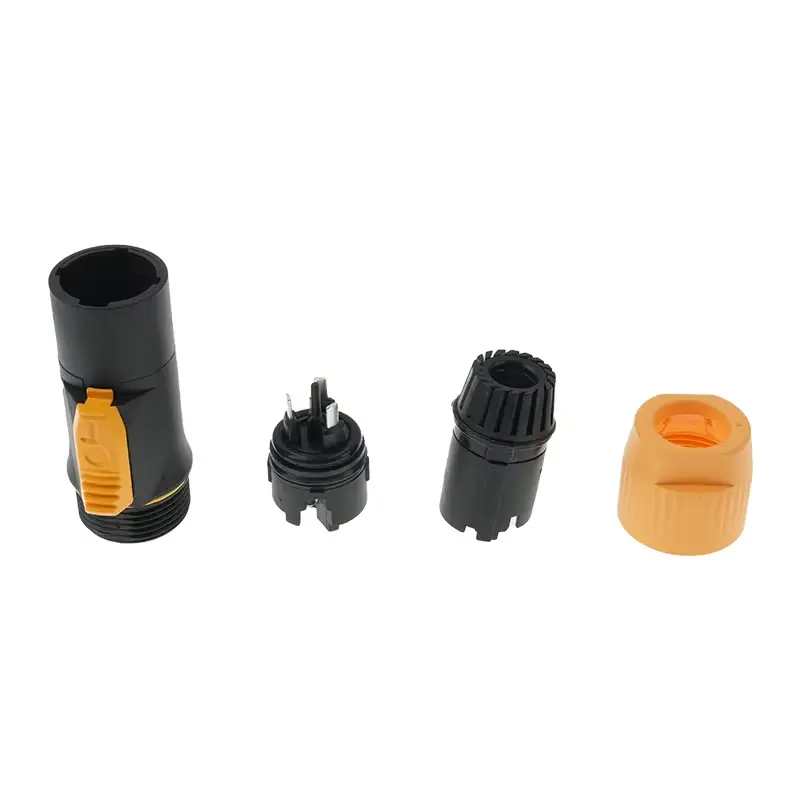

PowerCon Waterproof 3 Pins Male Plug Power Connector NAC3MX-W
| Electrical | |
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 0.1 GΩ (after damp heat test) |
| Number of electrical contacts | 2 + PE |
| Rated current | 16 A rms (USA: 20 A) |
| Rated voltage | 250 V AC |
| Mechanical | |
| Lifetime | > 1000 mating cycles |
| Wiresize | 1.0-2.5 mm² |
| Cable O.D. | 6 – 12 mm |
| Wiresize | 12 AWG |
| Material | |
| Contact plating | 2 µm Ag |
| Housing Material | ABS |
| Shell | Polyamide (PA 66) |
| Contacts | Copper |
| Environmental | |
| Flammability | UL 94 V-0 |
| Protection class | IP 65 (mated) |
| Temperature range | – 30 °C – +80 °C |
16A PowerCon Chassis

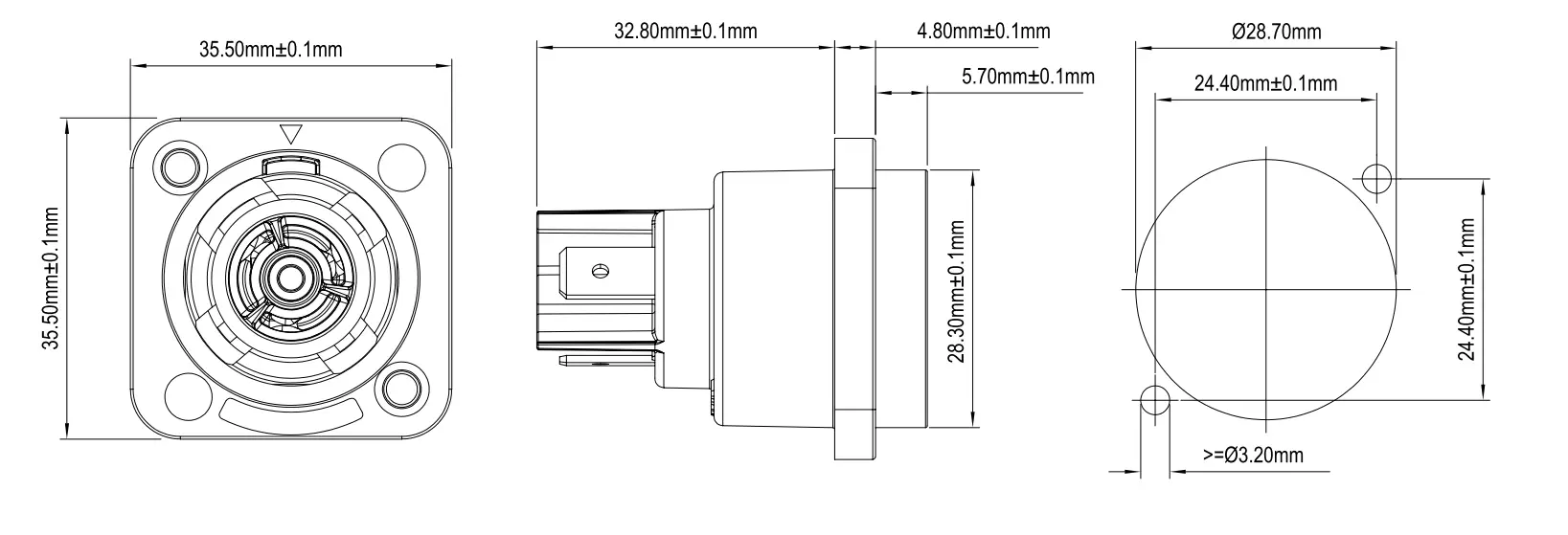

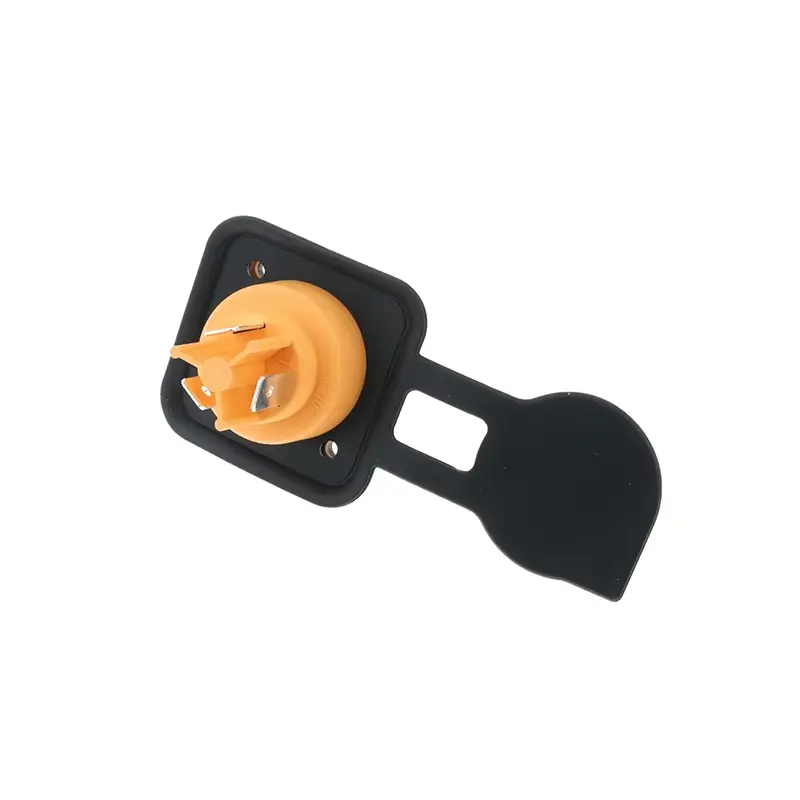

PowerCon Chassis Waterproof 3 Cores Female Socket Power Connector NAC3FPX

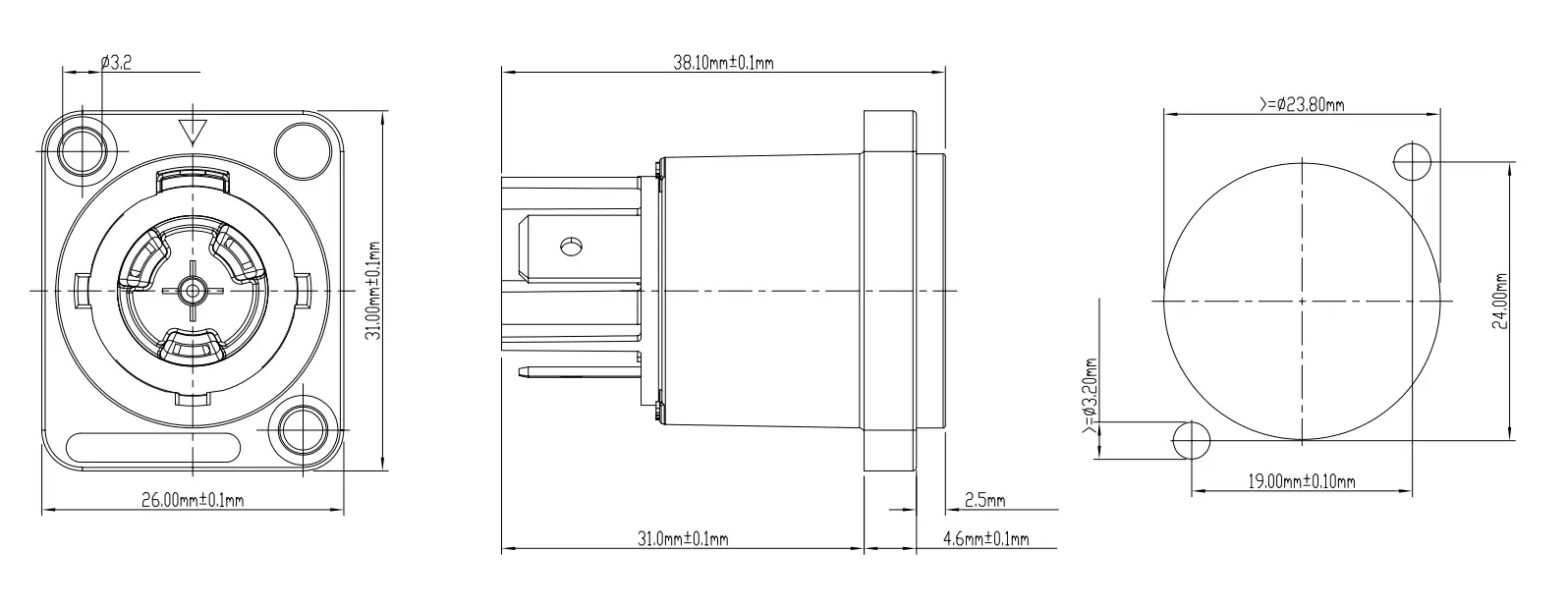

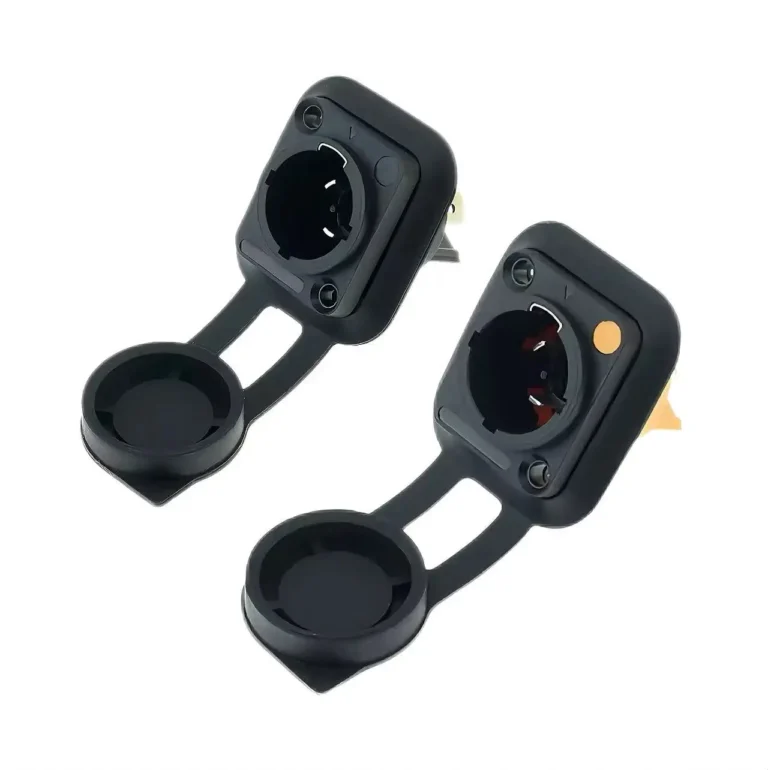

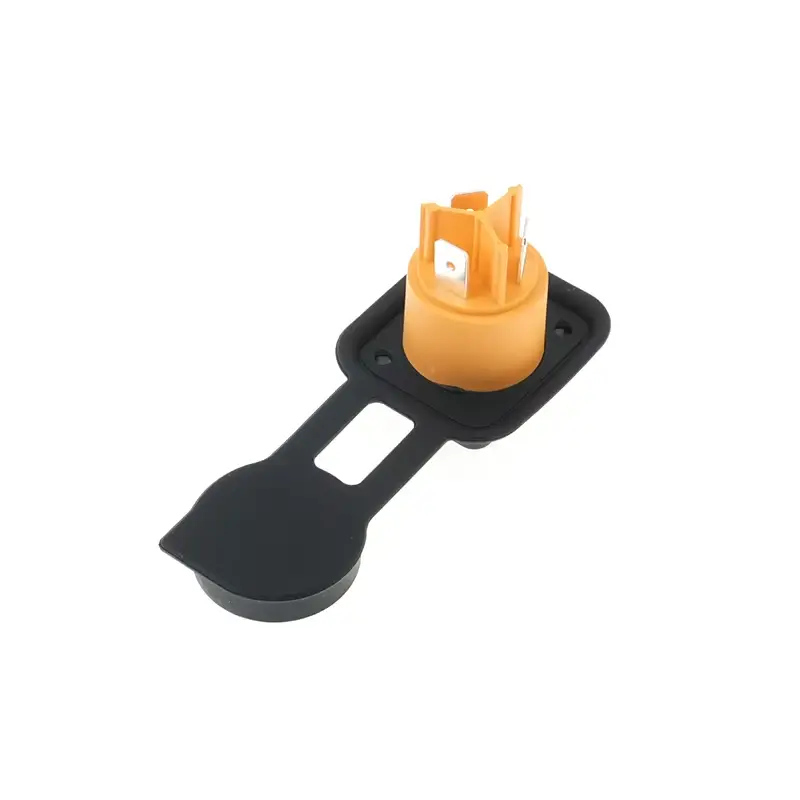

PowerCon Chassis Waterproof 3 Pins Male Socket Power Connector NAC3MPX

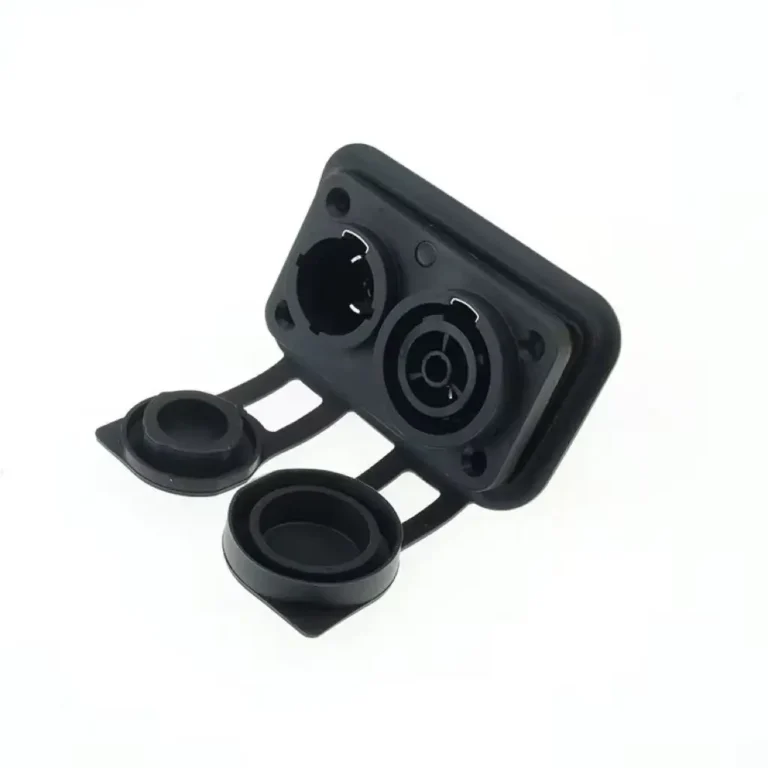

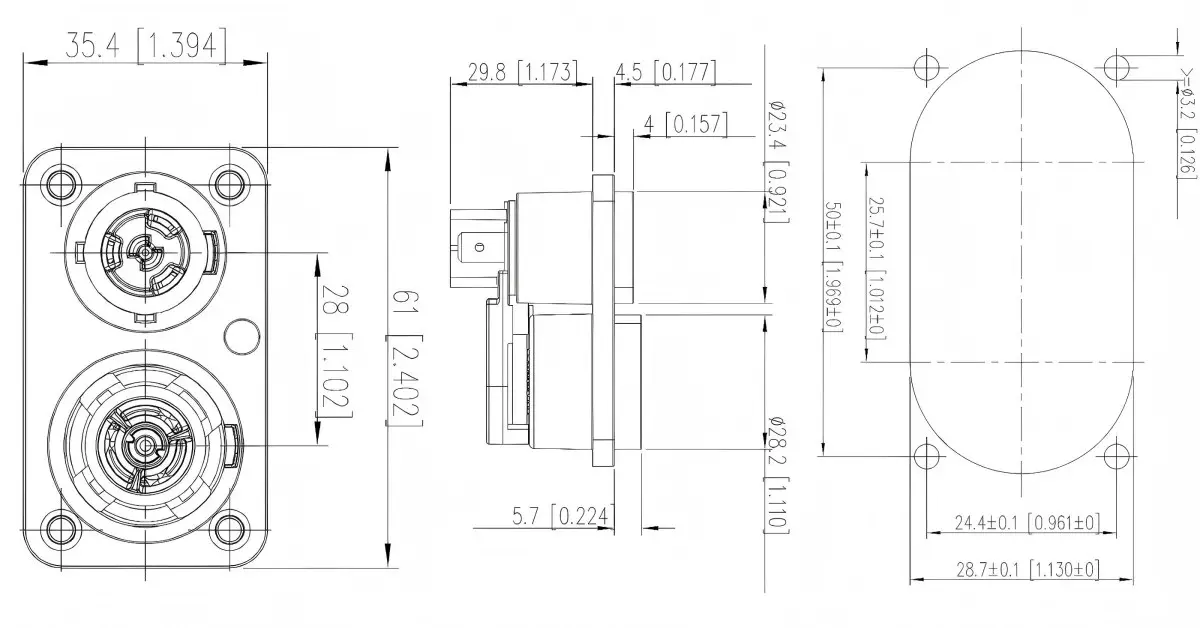

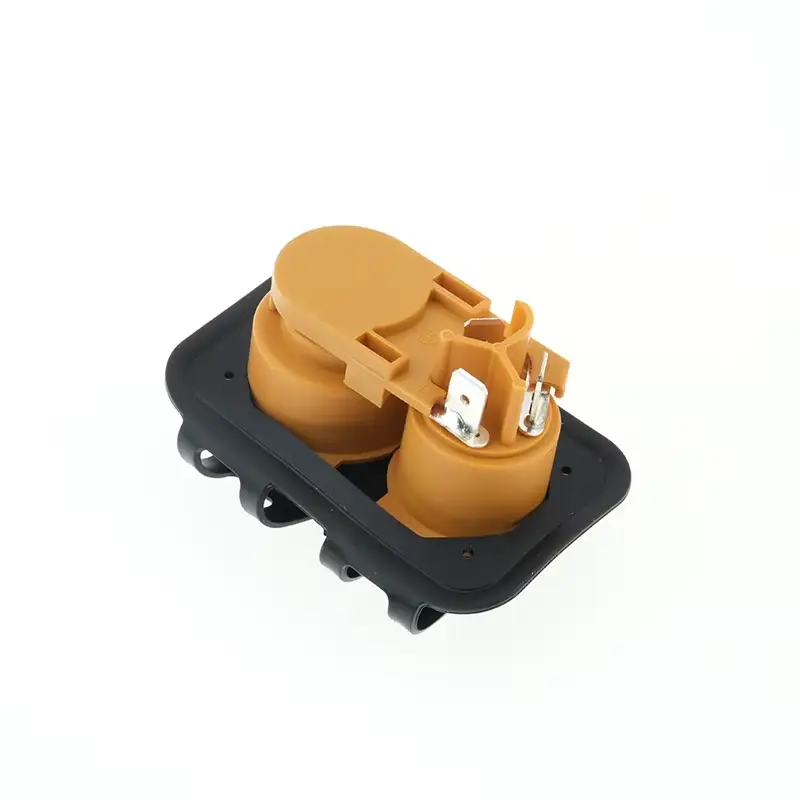

PowerCon TRUE1 Chassis Waterproof 3 Pins 3 Cores Female Male Socket Power Connector NAC3PX
| Electrical | |
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 0.1 GΩ (after damp heat test) |
| Number of electrical contacts | 2 + PE |
| Rated current | 16 A rms (USA: 20 A) |
| Rated voltage | 250 V AC |
| Mechanical | |
| Lifetime | > 1000 mating cycles |
| Wiresize | 1.0-2.5 mm² |
| Wiresize | 12 AWG |
| Material | |
| Contact plating | 2 µm Ag |
| Housing Material | ABS |
| Locking element | Stainless steel |
| Shell | Polyamide (PA 66) |
| Contacts | Copper |
| Environmental | |
| Flammability | UL 94 V-0 |
| Protection class | IP 65 (mated) |
| Temperature range | – 30 °C – +80 °C |
High Quality 20A PowerCon

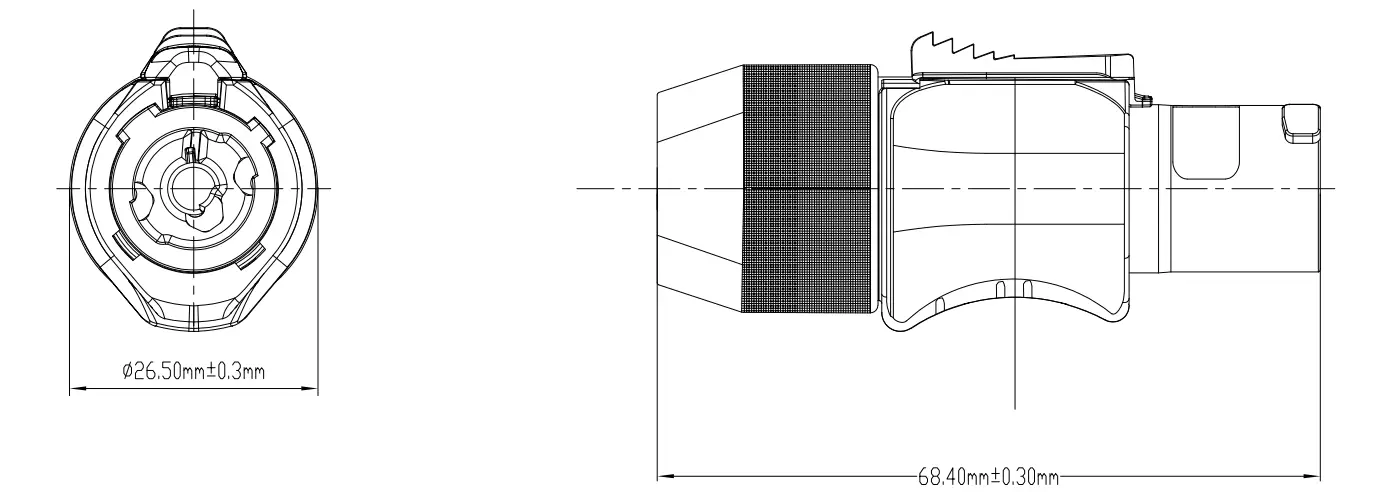

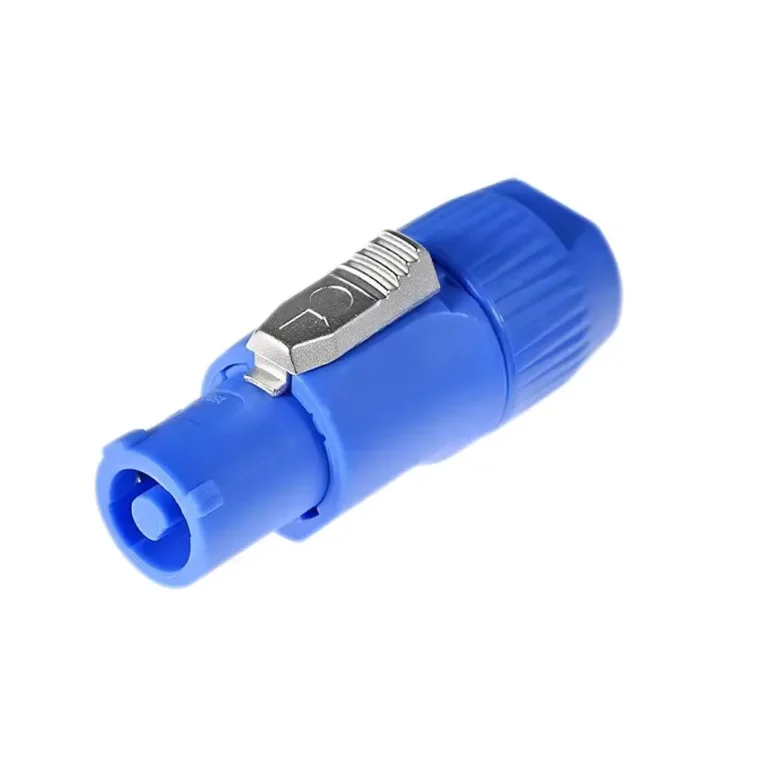

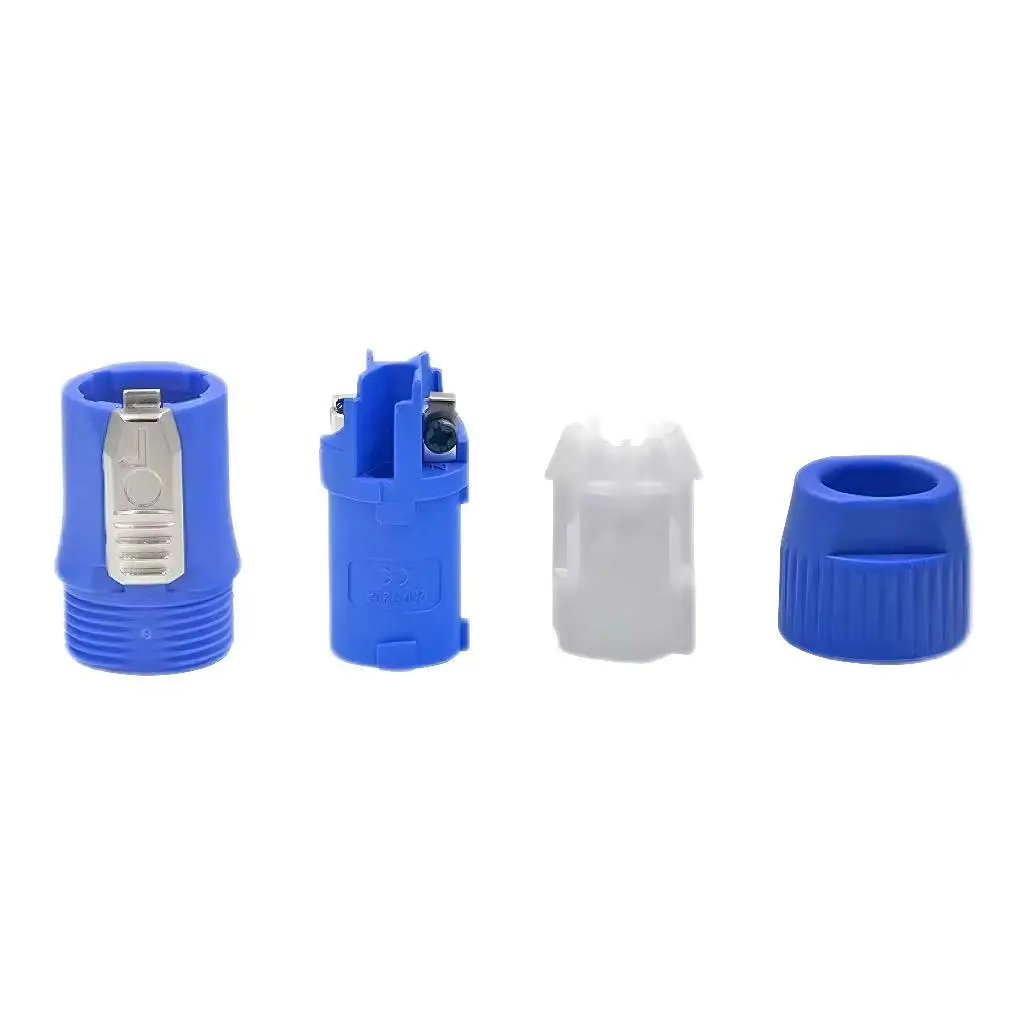

PowerCon Waterproof 3 Pins Female Plug Power Connector Bule NAC3FCA

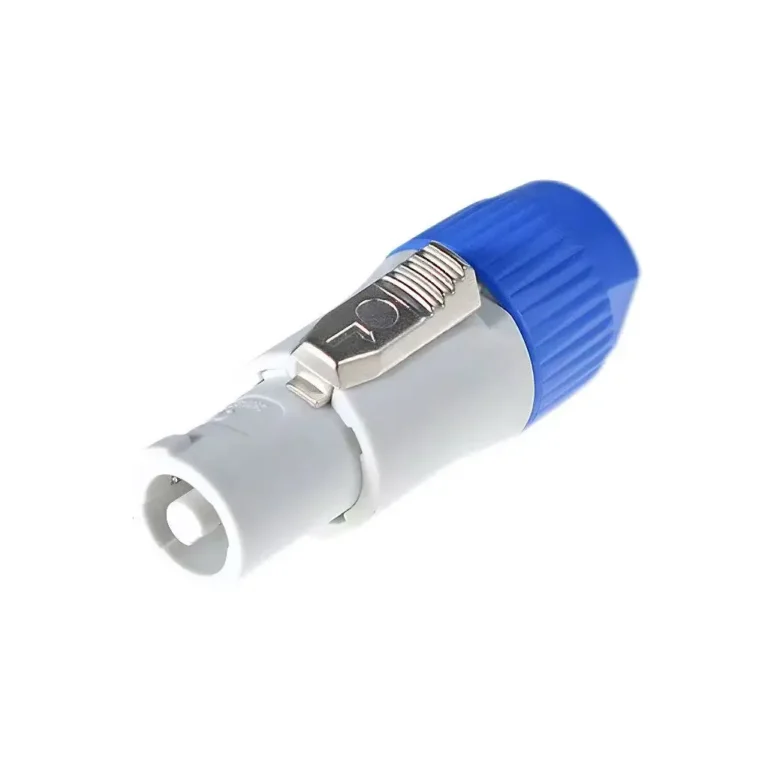

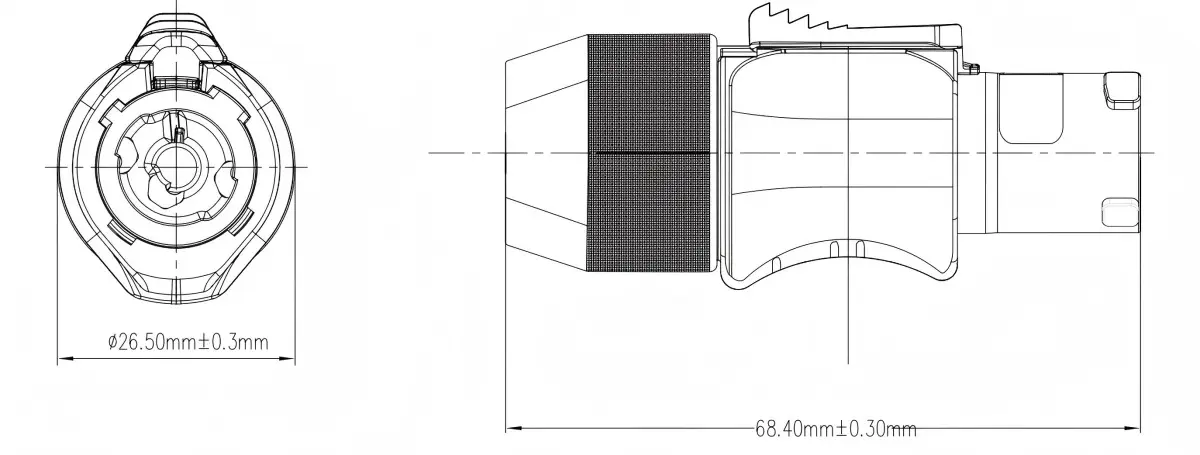

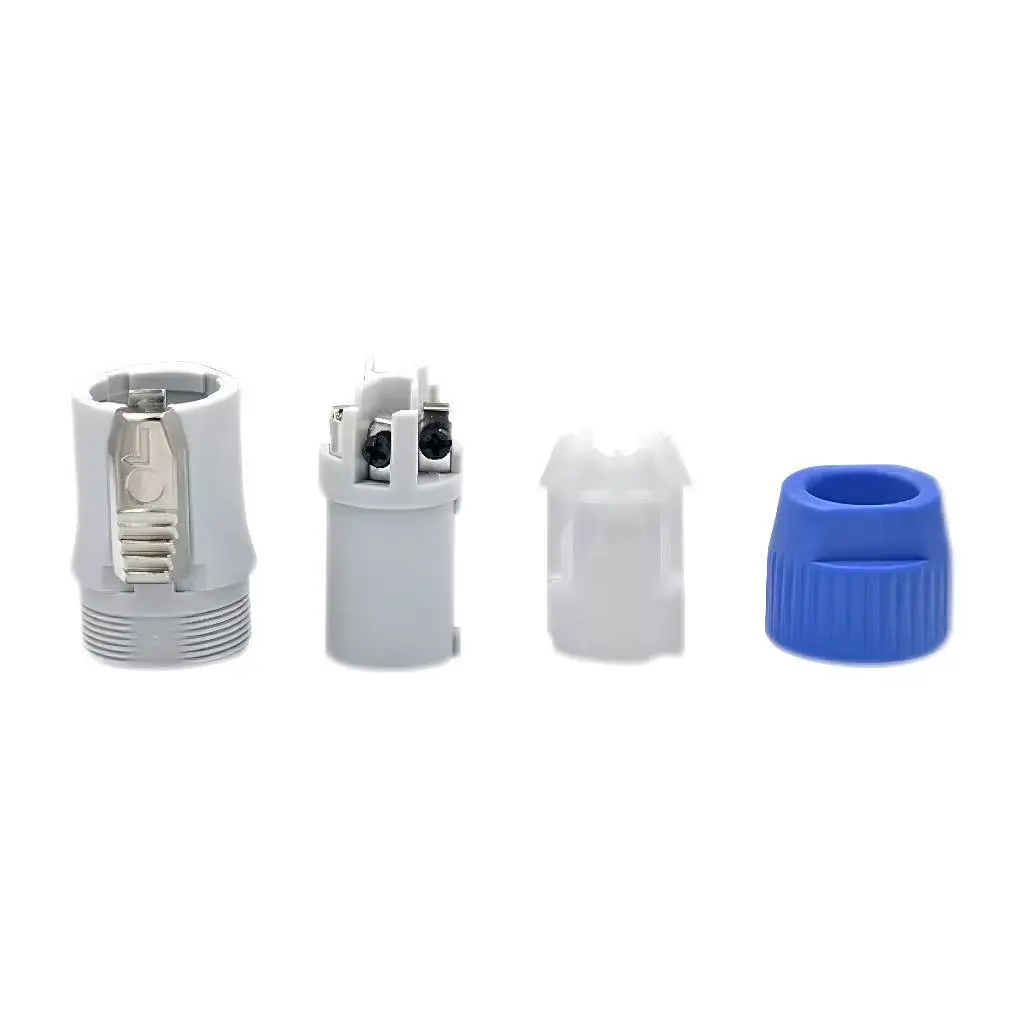

PowerCon Waterproof 3 Pins Female Plug Power Connector White NAC3FCB
| Electrical | |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 0.1 GΩ (after damp heat test) |
| Number of electrical contacts | 2 + PE |
| Rating Europe | EN 61984:20 A 250 V AC |
| Rating USA | UL 1977:20 A 250 V AC |
| Mechanical | |
| Lifetime | > 1000 mating cycles |
| Wiresize | 1.0-2.5 mm² |
| Wiresize | 12 AWG |
| Cable diameter | 6-12mm |
| Locking device | Quick Lock |
| Material | |
| Contact plating | 4 µm Ag |
| Housing Material | ABS |
| Locking element | Zinc diecast |
| Shell | Polyamide (PA 66) |
| Contacts | Copper |
| Environmental | |
| Flammability | UL 94 HB |
| Temperature range | – 30 °C – +80 °C |
20A PowerCon Chassis

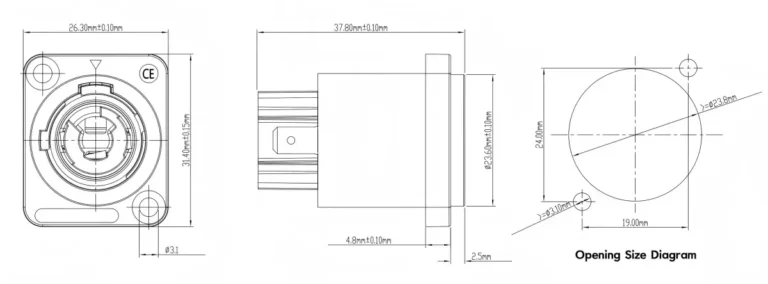

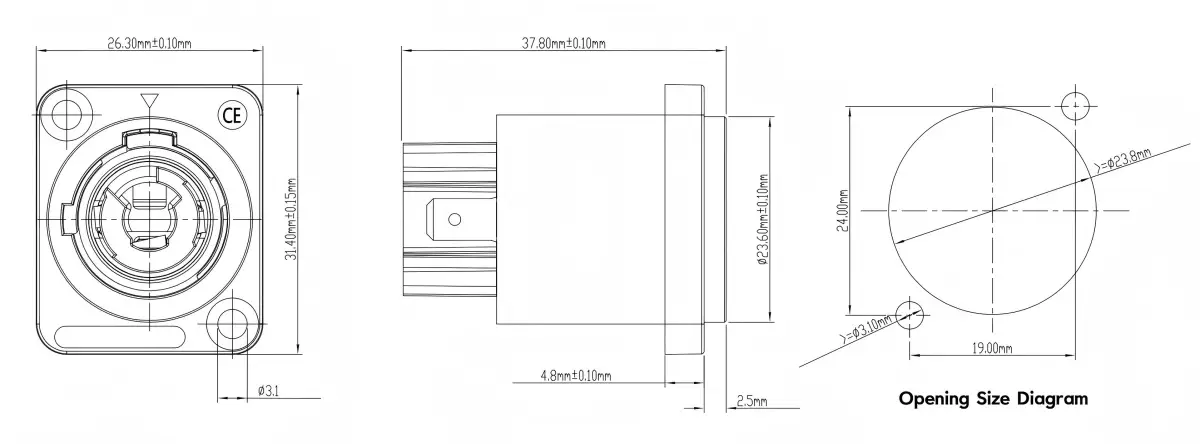

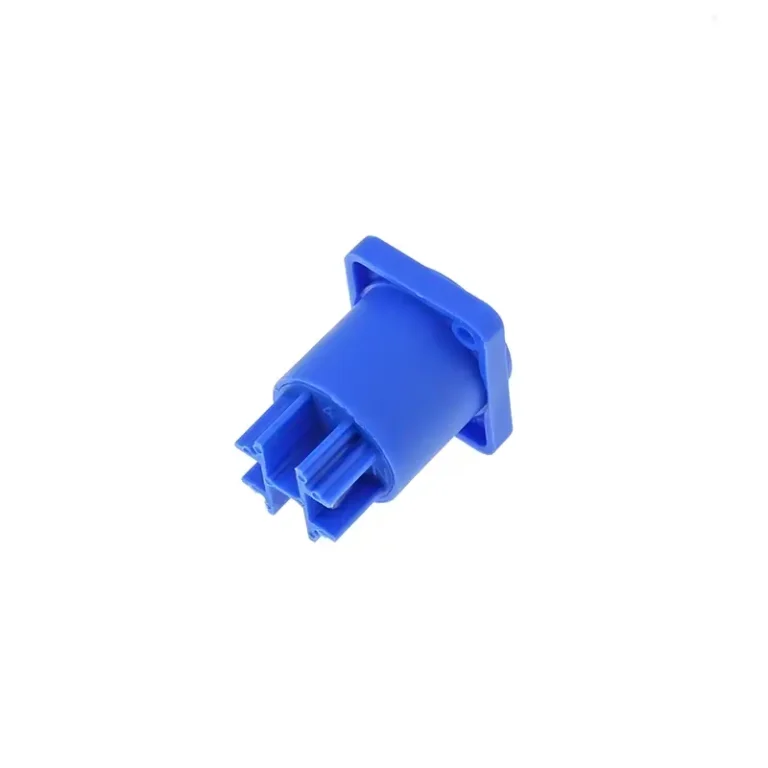

PowerCon Chassis Waterproof 3 Pins Male Socket Power Connector Bule NAC3MPA

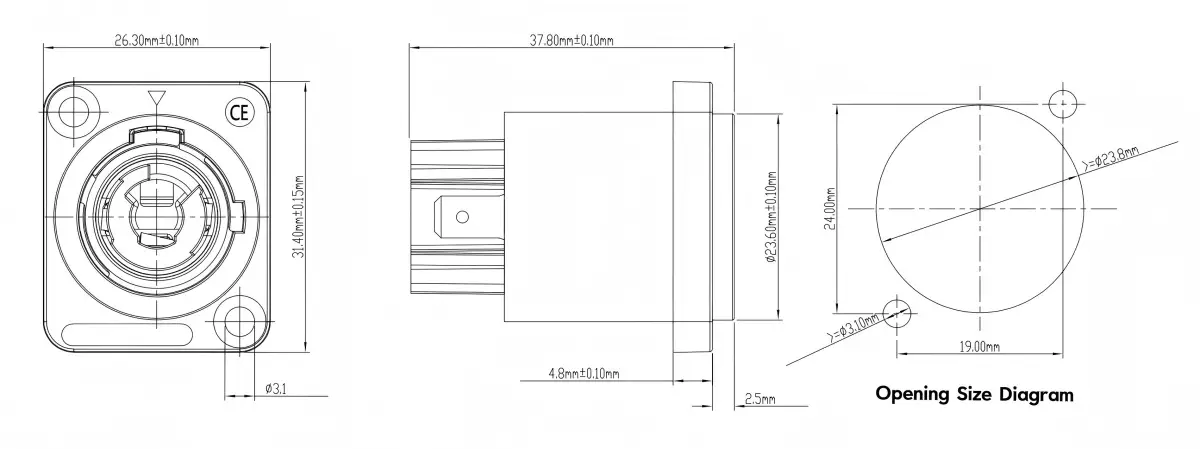

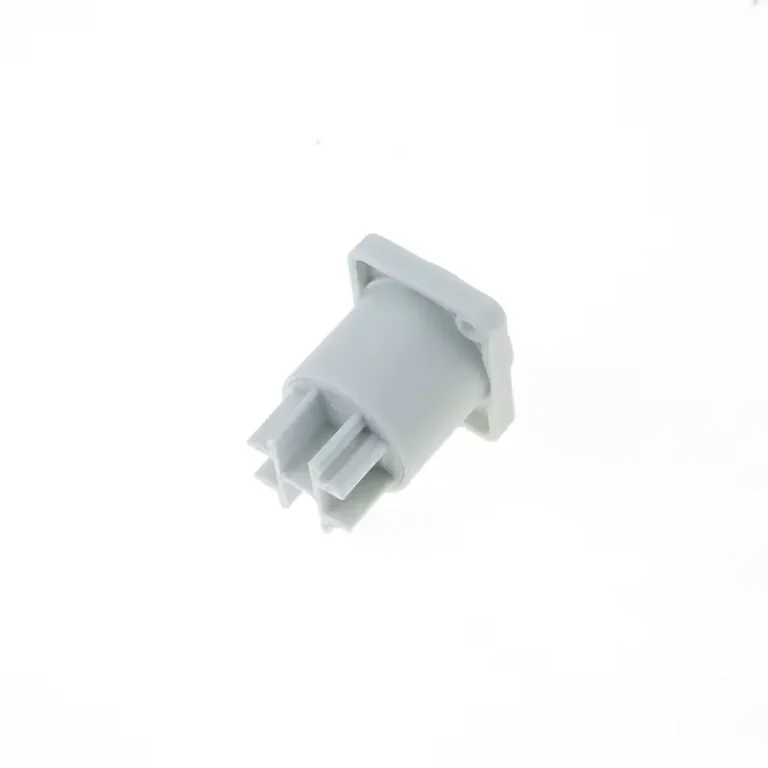

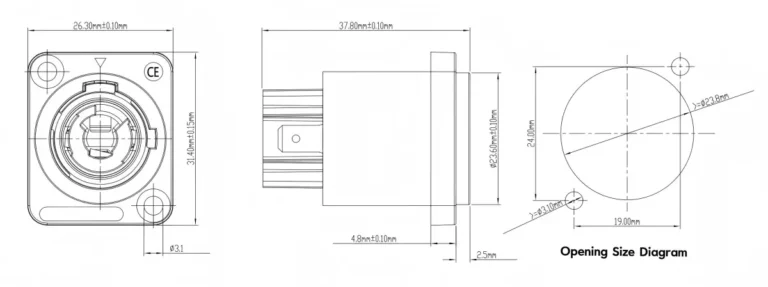

PowerCon Chassis Waterproof 3 Pins Male Socket Power Connector Bule NAC3MPB
| Electrical | |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 0.1 GΩ (after damp heat test) |
| Number of electrical contacts | 2 + PE |
| Rating Europe | EN 61984:20 A 250 V AC |
| Rating USA | UL 1977:20 A 250 V AC |
| Mechanical | |
| Lifetime | > 1000 mating cycles |
| Wiresize | 1.0-2.5 mm² |
| Wiresize | 12 AWG |
| Cable diameter | 6-12mm |
| Connecting mode | latching lock |
| Material | |
| Contact plating | 2 µm Ag |
| Housing Material | ABS |
| Locking element | Steel |
| Shell | Polyamide (PA 66) |
| Contacts | Copper |
| Environmental | |
| Flammability | UL 94 V-0 |
| Temperature range | – 30 °C – +80 °C |
Verchil Supply Best PowerCon
Verchil PowerCon Advantages
Fine manufacturing: Each PowerCON connector is meticulously fabricated with high impact resistance, flame retardant materials, and precision locking mechanisms to ensure that it is still robust and reliable in harsh environments.
Rigorous testing: Each PowerCON connector has undergone rigorous electrical safety and mechanical load testing to eliminate hidden dangers and ensure that the final product has consistent high-load power transmission performance.
Your Trusted PowerCon Factory In China
When you choose Verchil as the supplier of PowerCon, you are working with a company dedicated to providing excellent products and services.
Reasonable price, strong manufacturing capacity, reliable quality and fast delivery time make us a trusted partner for global enterprises.
PowerCon FAQ
Want to know more about us and HDMI panel mount products? No worries, here are some answers for you.
What is the rated current and voltage?
Our PowerCon connectors are typically rated at 16A20A/250V AC, fully meeting the power supply requirements of most stage lighting and sound equipment.
Does this plug have a lock?
With a lock. It uses a reliable rotary locking system(Twist Lock), which can be locked by rotation after insertion to prevent the power supply from falling off due to vibration during the performance.
Can it be plugged?
Please note that the standard PowerCon blue or gray does not have the ability to interrupt the current, please do not carry out hot swap with load.
If it is True1 series, it supports hot swap.
Does the cable wiring need to be welded?
No need. The screw pressing line design is adopted in the interior, and you only need a screwdriver to complete the wiring, which is very suitable for rapid assembly on site.
