HDMI Panel Mount Socket Manufacturer
We understand the materials and provide quality solutions to achieve the best HDMI Panel Mount performance.
We fully consider the details of the product, experience the HDMI Panel Mount Socket carefully created by Verchil, and enjoy reliable product performance.
High Quality HDMI Panel Mount Socket

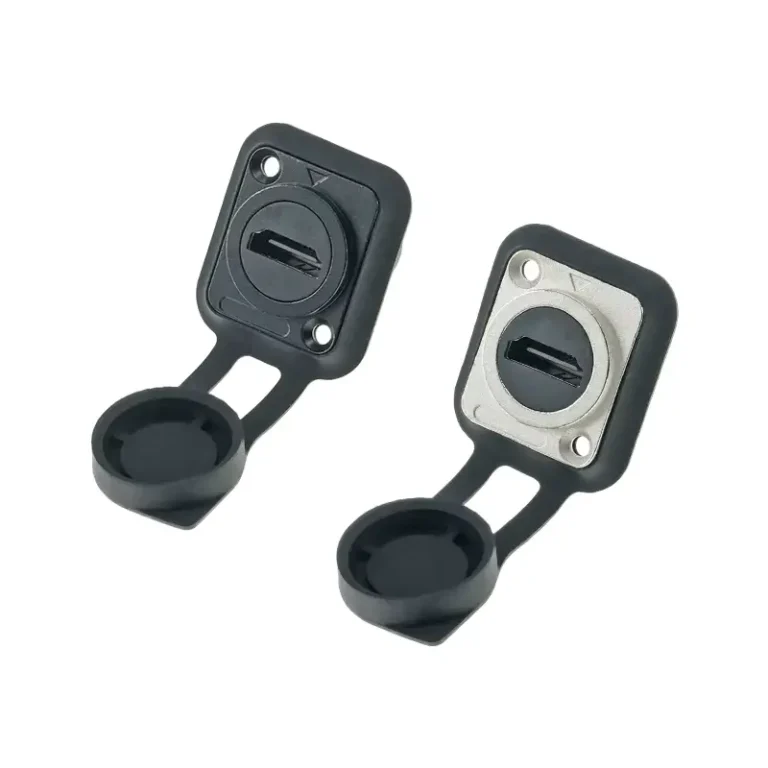

4K HDMI 2.0 Panel Mount Socket D-Type Connector HDMI to HDMI Female Wall Faceplate Connector

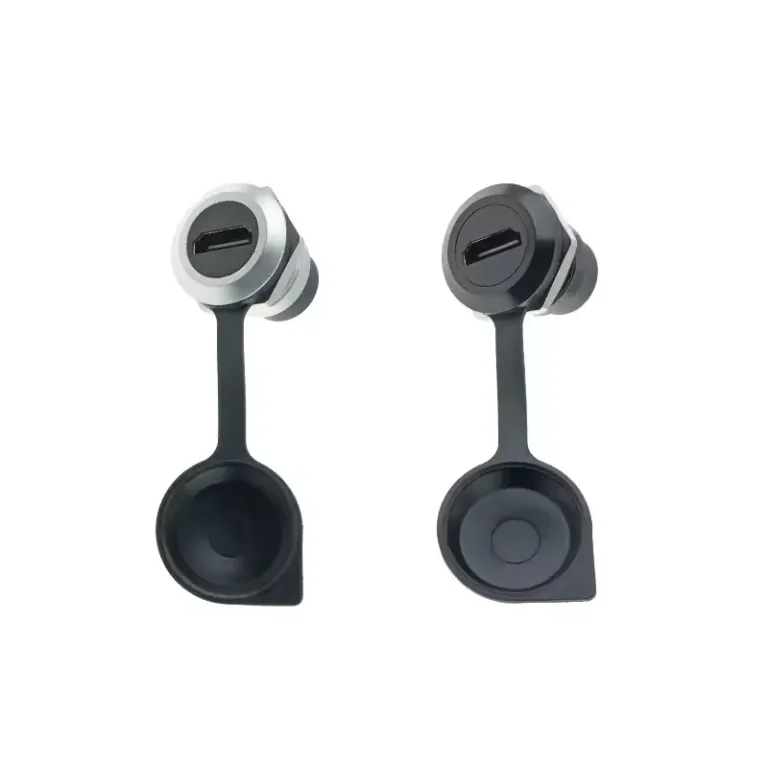

4K HDMI 2.0 Panel Mount Socket Circular Connector HDMI to HDMI Female Wall Faceplate Connector
HDMI Panel Mount Socket Specifications
The following are the detailed technical specifications of HDMI Panel Mount Socket, including interface, color, material, durability and waterproof grade. The connector is suitable for industrial panel installation, providing high insulation resistance and wide temperature range to ensure reliable performance.
| Specifications | Detailed information |
|---|---|
| Interface | HDMI 2.0 |
| Color | Black, Silver |
| Material | Metal Flange |
| for Shell Material | Zinc Diecast |
| Contact Material | Bronze Au plated |
| Mount | Screw, panel mount |
| Insulator | PBTP |
| Insulation resistance | >500 MΩ |
| Waterproof | IP54 |
| Durability | >500 cycles |
| Temp. range | -40~+85°C |

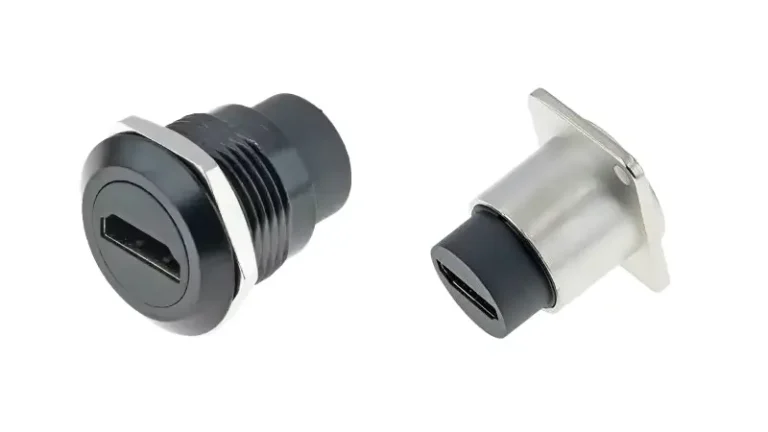

Verchil Supply Best HDMI Panel Mount Socket
Verchil HDMI Panel Mount Socket Advantages
Fine manufacturing: Each HDMI Panel Mount Socket is carefully crafted with reliable materials and stable manufacturing technology to ensure unparalleled durability and durability.
Rigorous testing: Each HDMI Panel Mount Socket has undergone rigorous product quality testing to eliminate defects and ensure consistent performance of the final product.
Your Trusted HDMI Panel Mount Factory In China
When you choose Verchil as the supplier of HDMI Panel Mount, you are working with a company dedicated to providing excellent products and services.
Reasonable price, strong manufacturing capacity, reliable quality and fast delivery time make us a trusted partner for global enterprises.
HDMI Panel Mount FAQ
Want to know more about us and HDMI panel mount products? No worries, here are some answers for you.
Is this female-to-female interface?
Yes, most of the panel mounts are straight-through design, that is, both ends are HDMI ports.
You only need to insert the existing HDMI line into the back without welding.
Is it waterproof when installed on an outdoor display?
We provide a model with a waterproof cover, which can reach the IP65 protection level when closing the cover, effectively preventing rainwater and dust from entering the interface.

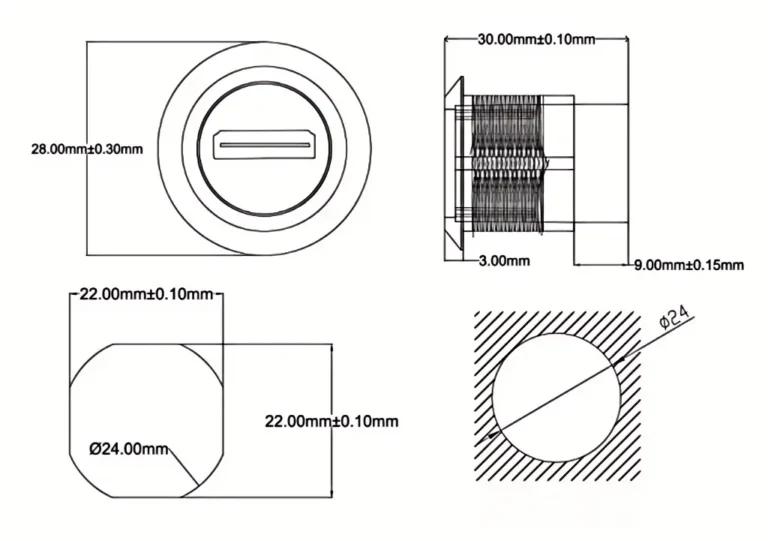

What is its installation size?
We mainly provide a standard D-Shape flange mounting size, which is a standard size for the industry and can perfectly match most existing audio / video panel openings.
If the cable is too heavy, will the interface be loose?
No. Our HDMI panel socket is equipped with a solid locking screw hole design, which can withstand a certain cable tension and ensure that the connection is stable.
