An audio connector is the terminating part of a cable or chassis that passes audio signals between devices through a mating jack. The main analog types are XLR, TRS, TS, RCA, and 3.5 mm; the main digital types are TOSLINK (optical) and AES3 (carried over XLR). Each one suits a different signal level, mounting style, and operating environment.
Are you wiring a home hi-fi rack, or speccing connectors for a stage, an outdoor LED wall, or a factory floor? The answer changes everything. An audio connector that is flawless inside a climate-controlled studio can corrode within a season once it lives outdoors.
This guide walks through every common audio connector type — from professional audio connectors like XLR and Speakon to consumer RCA and 3.5 mm — explains what each one actually carries, and gives you a simple four-step method for choosing the right one, including the mounting and sealing factors that most consumer guides skip entirely.
What an Audio Connector Actually Is
At its simplest, an audio connector is the part at the end of a cable, or built into a chassis, that links one device to another and lets an audio signal pass between them. The plug (male) inserts into a jack or socket (female), and most jacks only mate with one specific plug type — which is why an XLR plug will never seat into a TRS jack.
The single most important distinction is balanced versus unbalanced. A balanced connector carries the signal on two conductors plus a shield, which lets the receiving device cancel out interference picked up along the run. That noise rejection is what makes balanced connections reliable over long cable runs and in electrically noisy spaces such as a stage rig or a plant floor. An unbalanced connector uses a single conductor plus a shield — perfectly fine for short consumer runs, but increasingly prone to hum as the cable gets longer. Internationally, audio connectors are governed by standards such as IEC 60130, with individual families specified in their own documents.
From years of supplying sealed connectors into outdoor installations, the costliest specification errors we see are rarely about sound quality. They are almost always about choosing an unbalanced part for a run that needed a balanced one, or assuming a connector was protected when it never was. If you are still narrowing down a product family, start at our audio connector category page.

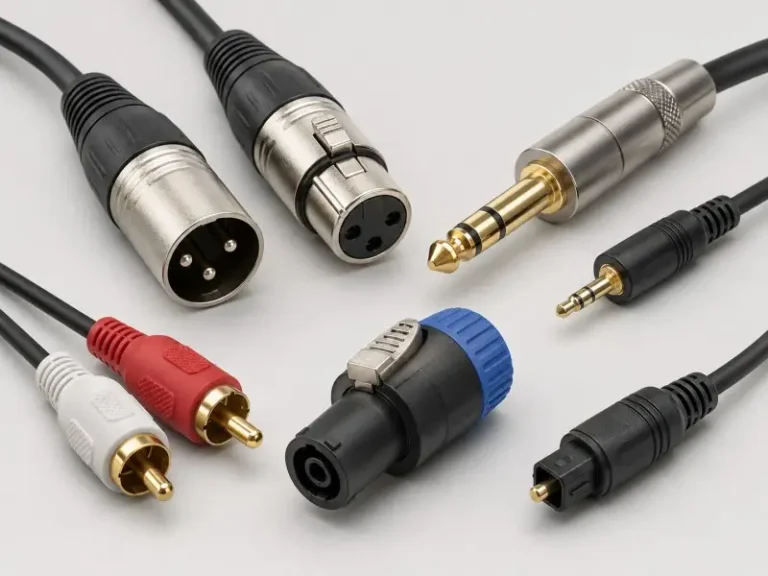

The Main Analog Audio Connector Types
Most of the connectors you will meet are analog. Here are the five that matter.
XLR. The three-pin XLR is the professional standard for microphone and balanced line-level signals, and it locks into place so it cannot pull out mid-performance. Its dimensions are standardized under IEC 61076-2-103, and beyond analog audio the same body also carries AES3 digital audio and, in its five-pin form, DMX512 lighting control. Full pin definitions and variants are documented on the XLR connector reference. For balanced microphone and line work — and for sealed outdoor versions — see our XLR connector page.
TRS (Tip-Ring-Sleeve). Found as a 6.35 mm (1/4 inch) or 3.5 mm jack, TRS is unusually flexible: the same connector can carry a balanced mono line-level signal (tip = hot, ring = cold, sleeve = ground) or an unbalanced stereo signal (tip = left, ring = right, sleeve = ground). Studio monitors, balanced interface outputs, and headphone outputs all rely on it. Details of the wider phone-connector family are covered in the phone connector reference. For panel-mount and balanced applications, see our TRS connector page.
TS (Tip-Sleeve). A two-section, unbalanced version of the 1/4-inch jack. It is the standard for electric guitars and basses, instrument-to-amp cables, and pedal patch leads, where runs are short and the signal is unbalanced by design.
RCA (phono). An unbalanced coaxial connector, usually colour-coded red and white for right and left channels. It remains common for consumer line-level interconnects, turntable-to-phono-stage links, and home-theatre subwoofers. Because it is unbalanced and unlatched, it is best kept to short runs.
3.5 mm minijack. The familiar headphone and auxiliary connector. In its TRS form it carries unbalanced stereo; in TRRS form it adds a microphone channel. It dominates portable and consumer gear and shows up frequently in communications equipment.
A note on “audio jack connectors”
When people say an audio jack connector, they almost always mean the phone-jack family — the TS, TRS and TRRS plugs and sockets made in 2.5 mm, 3.5 mm, 4.4 mm and 6.35 mm (1/4 inch) sizes. Strictly, “jack” is the female socket and “plug” the male, but in everyday use the whole family gets called an audio jack. Because this family has its own selection details — pole counts, sizes, wiring and the CTIA/OMTP headset standards — we cover it in depth separately: start with our TRS connector guide, then see TRS vs TRRS, connector sizes, pinout & wiring, the 3.5 mm TRS guide and real-world TRS jack uses. For panel-mount and balanced builds, the TRS connector product page has the hardware.
Locking and Digital Audio Connectors
Two further families deserve their own mention, because they solve problems the analog jacks above do not.
Speakon. This is a locking, high-current connector built for the amplifier-to-loudspeaker link. It is designed to carry far more current than XLR or TRS and to shield contacts that can hold dangerous amplifier voltages — which is exactly why touring and install rigs moved to it for passive speaker runs. Some variants add sealing gaskets for outdoor use.
TOSLINK and AES3 (digital). TOSLINK is an optical connector that carries an S/PDIF digital signal as light rather than electricity — the standard link from a TV to a soundbar. AES3 is the professional digital-audio format, and it travels over the same XLR-type connector described above, which keeps studios on familiar hardware.
What Makes an Audio Connector “Professional” vs Consumer
When buyers search for professional audio connectors, they usually mean the parts built for stage, studio, broadcast, and install work — where a dropped signal or a plug pulled mid-show is not an option. What separates pro audio connectors from consumer ones is not the brand on the shell; it is four physical traits. Call it the four-mark test — Balance, Lock, Shield, Shell.
- Balance. A professional connector carries a balanced signal — XLR and balanced TRS run the signal on two conductors plus a shield, so the receiver cancels noise over long or electrically hostile runs. Consumer RCA and 3.5 mm are unbalanced and drift toward hum as the cable lengthens.
- Lock. Pro parts latch or twist-lock — XLR latches, Speakon twist-locks — so they survive handling, foot traffic, and vibration. RCA and 3.5 mm hold by friction alone and pull out under strain.
- Shield. A professional shell is metal and bonds the cable shield end to end, which keeps EMI off the signal. A plastic consumer body breaks that shield path.
- Shell. Die-cast or metal housings and plated contacts are rated for thousands of mating cycles, where consumer parts are built for occasional, gentle use.
Run any connector through those four marks and the line sorts itself: the professional audio connectors are XLR, balanced TRS, and Speakon — plus their sealed outdoor variants — while RCA and 3.5 mm sit on the consumer side. Both the balanced-signal and the shielding rules trace back to the same standards cited above (IEC 60130 and IEC 61076-2-103 for XLR; IEC 60529 for any sealed version), so “professional” here is a measurable spec, not a marketing label. If you are sourcing pro-grade, panel-mount, or bulk OEM parts rather than a one-off consumer lead, start at the audio connector category — Verchil builds the XLR, TRS, and sealed variants to order.
How to Choose the Right Audio Connector
Rather than memorize every type, work through four questions in order. We call it the Signal → Balance → Mounting → Environment method.
- Signal. What are you actually carrying — microphone, line level, instrument, loudspeaker, or digital? This alone rules most types in or out.
- Balance. How long is the run, and how noisy is the space? Long or electrically hostile runs want a balanced connector (XLR or balanced TRS); short consumer runs are fine unbalanced (TS, RCA).
- Mounting. Is this a cable-end connector, or a panel/chassis-mount part going into a wall plate, rack, or enclosure? Panel-mount changes which versions you can even buy.
- Environment. Indoor and dry, or exposed to weather, washdown, dust, or vibration? Outdoor, stage, and industrial installs should be matched to a sealed connector with an IP rating under IEC 60529 (IP65/67/68).
Watch out for the IP-rating trap
Here is the mistake that quietly causes the most field failures: assuming a connector labelled “outdoor” is sealed on its own. In almost every sealed product line, the IP rating is only achieved when the connector is correctly mated with its matching part. An unmated chassis socket, or a sealed plug paired with the wrong mate, is not protected — the rating exists on the datasheet, not on your wall. Always confirm the IP class applies in the mated condition, and that you are pairing the parts the manufacturer specifies.
Quick comparison table
| Connector | Typically carries | Balanced? | Locking | Panel-mount | Sealed (IP-rated) versions | Best-fit environment |
|---|---|---|---|---|---|---|
| XLR | Mic, balanced line, AES3, DMX | Yes (3-pin) | Yes (latch) | Yes | Yes (IP65/67) | Pro audio, stage, outdoor, broadcast |
| TRS (1/4″ / 3.5 mm) | Balanced line or stereo | Either | No (friction) | Yes | Limited | Studio, interfaces, monitors |
| TS (1/4″) | Instrument, unbalanced | No | No | Yes | Rare | Guitars, pedals, patch leads |
| RCA | Consumer line level | No | No | Yes | Rare | Home hi-fi, turntables, AV |
| 3.5 mm | Headphone, aux, comms | Stereo (unbal.) | No | Yes | Limited | Portable, consumer, communications |
| Speakon | Loudspeaker, high current | n/a (power) | Yes | Yes | Some (gasketed) | Amp-to-speaker, touring, outdoor |
| TOSLINK | Optical digital (S/PDIF) | n/a (optical) | No | Yes | No | TV/soundbar, consumer digital |
For weatherproof stage and lighting builds, see our stage lighting connector solutions; for outdoor and communications equipment, see communication and outdoor equipment solutions.
Conclusion
Choosing an audio connector comes down to four things in sequence: the signal you carry, whether you need balanced noise rejection, how it mounts, and what environment it lives in. For a quick consumer aux cable, almost any standard part will do. But once you are specifying panel-mount, sealed, or bulk OEM connectors for professional, outdoor, or industrial use — where an IP rating has to hold in the mated condition and parts have to survive years of plugging and weather — that is where a manufacturer-direct, properly tested connector earns its place.
Need connectors matched to your application? Send us your specs for a quote or message our engineering team directly on WhatsApp, and we will confirm the right signal, mounting, and IP class for your build.
FAQ
Does XLR sound better than RCA?
Not inherently — on a short, quiet run the audible difference is usually negligible. XLR’s balanced design wins where it counts: long cable runs and electrically noisy environments, where it rejects the hum and interference an unbalanced RCA link would pick up.
Do I actually need a balanced connector?
It depends on run length and noise. Short consumer interconnects are fine unbalanced. Once a run stretches past a few metres, or sits near motors, dimmers, or lighting, a balanced XLR or TRS connection is the reliable choice.
Are audio connectors interchangeable?
No. Each jack accepts one specific plug type by design, so you cannot, for example, seat an XLR plug into a TRS jack. Adapters can bridge some mismatches, but they do not change the underlying signal type.
Which audio connector should I use outdoors?
A sealed, IP-rated version — commonly a weatherproof XLR or a gasketed Speakon. Confirm the IP class applies when the connector is mated with its matching part, and that the cable side is rated too.
Why do I keep getting hum or noise?
The usual causes are an unbalanced run that is too long, a grounding issue, or simply the wrong connector for the job. Switching a problem run to a balanced connection often resolves it.
Is an audio jack connector the same as an audio connector?
Not quite — an audio jack connector is a subset. It refers specifically to the phone-jack family (TS, TRS and TRRS in 2.5/3.5/4.4/6.35 mm), whereas an audio connector also covers XLR, RCA, Speakon and digital types like TOSLINK. If you’re working with a 3.5 mm or 1/4-inch jack, see our TRS connector guide for the wiring and size details.
What counts as a professional audio connector?
Generally one built for stage, studio, broadcast, or install use — meaning it is balanced (XLR or balanced TRS), or locking and high-current (Speakon), with a shielded metal shell and contacts rated for repeated mating. Consumer types like RCA and 3.5 mm are unbalanced, unlatched, and built for short indoor runs.
