A 6 pin waterproof connector is a sealed, multi-contact connector that carries power, ground, and up to four signal or data lines through one IP-rated interface. The common formats are the M12 (industrial, IP67/IP68), M16/M23 (higher current), GX16/GX20 aviation, and rectangular automotive types. Because there is no universal civil pinout, always confirm the contact assignment against the datasheet before wiring.
Routing an RGB+W LED head, a robot tool-changer, a marine sensor, or a CAN-bus node — and unsure which 6 pin waterproof connector fits? Because six contacts open up power-plus-data layouts that four can’t, the format is versatile, but the type, IP grade, and pinout all have to match the job. So this guide walks through wiring, IP ratings, types, specs, and selection.
6 Pin Wiring Configurations and Pinout
Six contacts let one sealed interface carry power plus several signals, which is why the 6 pin waterproof connector sits at the sweet spot between a simple 4-pin and a bulkier 8- or 12-pin part. Typical electrical layouts include:
- Power + ground + 4 signals — sensor arrays, PTZ cameras, fieldbus
- Three-phase (L1/L2/L3 + PE + 2 control) — compact motor drives
- Dual power rail + 4 data — robot end-effectors
- RGB + white + power + ground — addressable LED lighting
| Application | Pin 1 | Pin 2 | Pin 3 | Pin 4 | Pin 5 | Pin 6 |
|---|---|---|---|---|---|---|
| RGB LED control | Red | Green | Blue | Power (+) | Ground (−) | Dimmer/PWM |
| Industrial sensor (IO-Link) | Power (+24V) | Ground | IO-Link data | Shield/PE | Aux A | Aux B |
| 3-phase motor (compact) | L1 | L2 | L3 | PE | Control A | Control B |
| CAN bus + power | V+ | GND | CAN-H | CAN-L | Analog in | Digital out |
| PTZ camera | Power+ | Power− | Video+ | Video− | RS485 A | RS485 B |
| Servo / robotics | Motor A | Motor B | Encoder A | Encoder B | 5V | GND |
Since pin roles differ by manufacturer, label and verify every conductor before crimping. For the simpler low-pin format, see our 4 pin waterproof connector guide.
IP Ratings for a 6 Pin Waterproof Connector
The IP code, defined by IEC 60529, is the single most important spec when selecting a 6 pin waterproof connector:
| IP rating | Water protection | Recommended use |
|---|---|---|
| IP65 | Low-pressure jets, any direction | Outdoor lighting, enclosures, panels |
| IP67 | Immersion to 1 m for 30 min | Marine electronics, automotive, handhelds |
| IP68 | Continuous submersion beyond 1 m | ROVs, deep-sea sensors, submersible pumps |
| IP69K | High-pressure, high-temp washdown | Agriculture, food processing |
Remember the rating only holds when the connector is mated and locked. For the full grade-by-grade breakdown, our cable gland IP rating guide explains each digit, and our waterproof connector types and IP ratings guide is the pillar reference.
Types of 6 Pin Waterproof Connectors
Match the type to current, environment, and how often you’ll mate it:

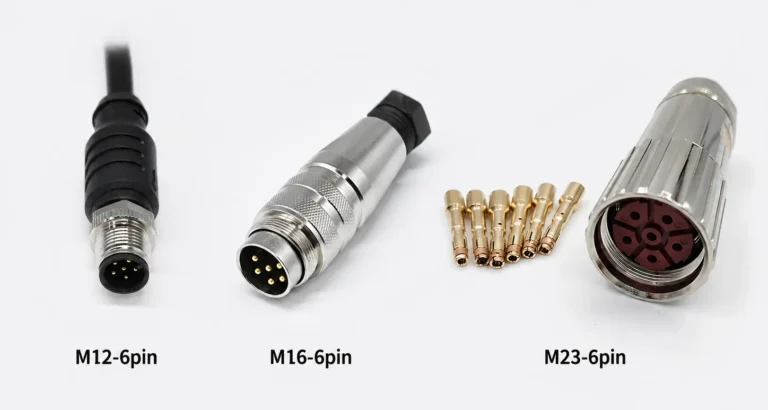

- M12 6-pin (industrial standard) — threaded, IP67/IP68, up to ~4 A/pin, usually A- or B-coded. Coding physically prevents mismating, as the M12 standard IEC 61076-2-101 explained by Amphenol LTW details. Best for sensors, PLCs, IO-Link, and outdoor cameras.
- M16 / M23 6-pin (higher current) — threaded or bayonet, up to 10 A (M16) or 16 A (M23) per contact. Best for servo motors, actuators, and outdoor LED power.

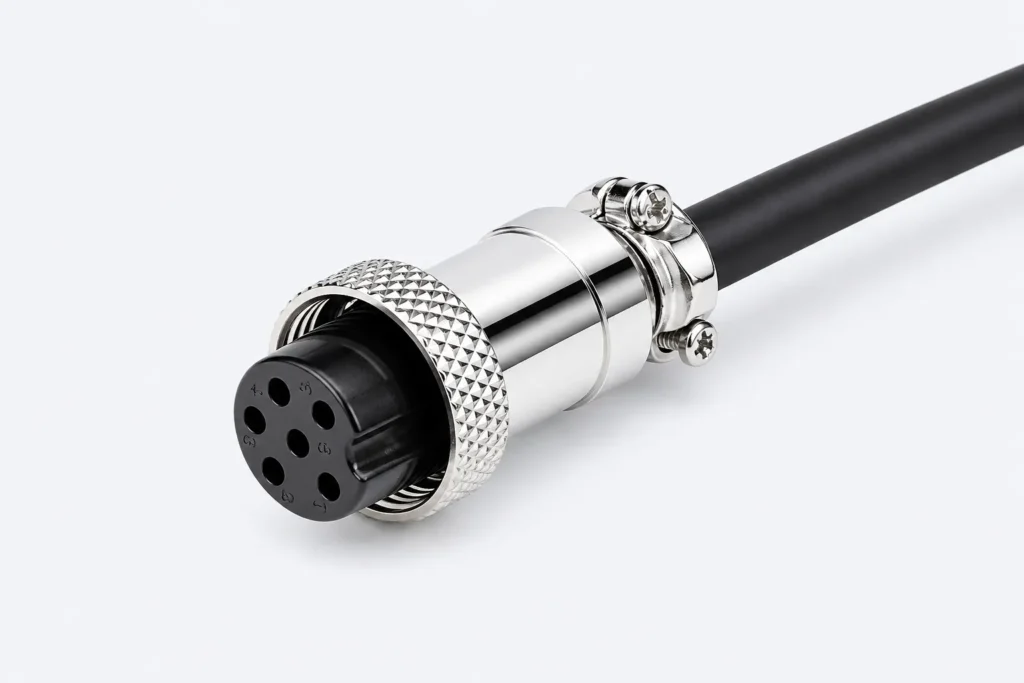

- GX16 / GX20 aviation 6-pin — bayonet, IP65–IP67, zinc/aluminum shell. Best for pro A/V, stage, scientific, and radio gear; see our 16mm aviation connector guide.

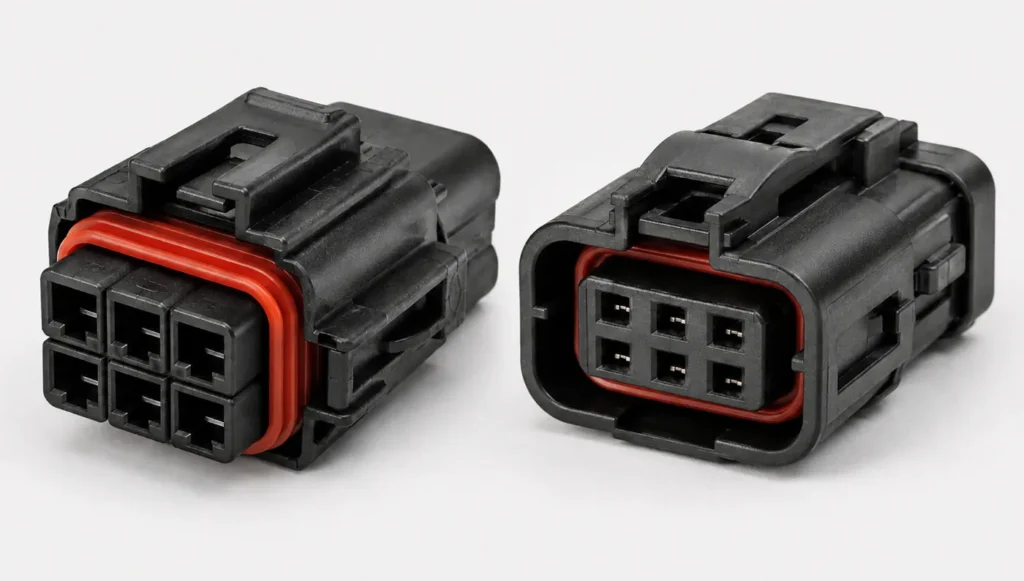

- Rectangular sealed 6-pin — push-lock or lever, IP67, up to ~20 A. Common in automotive harnesses; the modular cousins are our heavy duty connectors.
- Mini-Fit / Micro-Fit sealed 6-pin — snap latch, IP67, compact and low-cost for LED drivers and small outdoor electronics.
| Type | Locking | IP rating | Current/pin | Primary market |
|---|---|---|---|---|
| M12 circular | Thread | IP67–IP68 | up to 4 A | Industrial automation |
| M16 / M23 circular | Thread / bayonet | IP67–IP68 | up to 16 A | Robotics, servo drives |
| GX16 / GX20 aviation | Bayonet | IP65–IP67 | up to 5 A | A/V, stage, scientific |
| Rectangular sealed | Push-lock / lever | IP67 | up to 20 A | Automotive, trailers |
| Mini-Fit sealed | Snap latch | IP67 | up to 9 A | LED, compact electronics |
Electrical Specs and Materials to Verify
An IP grade alone doesn’t guarantee reliability, so check these before buying:
| Parameter | Typical range | Why it matters |
|---|---|---|
| Rated voltage | 30 V DC – 630 V AC | Sets insulation clearance; keep ≥20 % margin |
| Current/pin | 3–20 A | Derate 20–30 % above 70 °C ambient |
| Contact resistance | <5 mΩ (new) | Higher resistance means heat and voltage drop |
| Insulation resistance | >100 MΩ at 500 V DC | Critical for signal integrity in humidity |
| Dielectric withstand | 1,000 V AC for 1 min | Validates insulation under surge |
| Operating temp | −40 °C to +105 °C | Automotive underhood, arctic outdoor |
| Wire gauge | AWG 28 – AWG 12 | Grommet ID must match cable OD for the seal |
| Mating cycles | 500 – 5,000+ | Higher for maintenance-access ports |

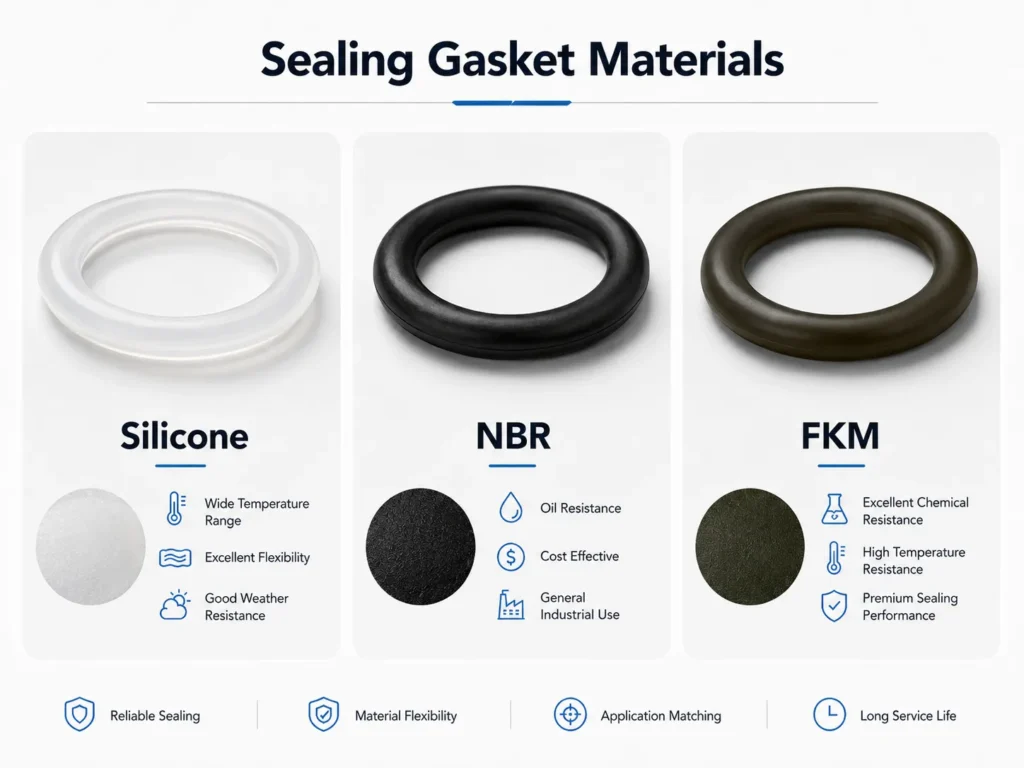

A key caution: when all six pins are fully loaded at once in a bundled cable, the per-pin current usually drops to 60–70 % of the single-pin rating because of cumulative heat. On materials, choose UV-stabilized PA66 or PBT for general outdoor use, zinc/aluminum for EMI-shielded aviation shells, and 316L stainless for marine and chemical sites; pair them with silicone seals (−60 °C to +200 °C) outdoors, NBR for fuels and oils, and FKM for aggressive chemicals. Where a cable simply passes a wall, add a sealed waterproof cable gland for strain relief.
Where 6 Pin Waterproof Connectors Are Used
Because six contacts cover power plus multi-signal cleanly, the 6 pin waterproof connector spans many fields:
- Industrial automation and robots — M12 6-pin links motor drive, encoder feedback, and gripper sensors on tool-changers amid coolant mist and vibration.
- Marine and offshore — IP68 316L versions with gold contacts serve nav lights, bilge pumps, fish-finders, and underwater LED arrays.
- Stage and architectural lighting — RGB+W plus a control line runs on one cable; IP65 indoors, IP67 outdoors, IP68 if buried.
- Automotive and EV — BMS monitoring, LiDAR/radar interfaces, and trailer harnesses use sealed 6-pin parts.
- Agriculture and food — IP69K 6-pin connectors survive high-pressure steam washdown.
- Security and IoT — PTZ camera nodes combine power, video, and RS-485; our IP65 RJ45 waterproof connector handles the Ethernet side.
Installation Best Practices
Even a top-rated 6 pin waterproof connector fails if fitted poorly:
- Strip precisely — over-stripping leaves bare copper outside the seal, inviting water in regardless of IP rating.
- Apply dielectric grease sparingly to contacts in marine/corrosive settings — never on crimp barrels.
- Torque the coupling to spec (M12 ≈ 0.6–0.8 N·m); too little under-compresses the O-ring, too much cracks the shell.
- Add strain relief with a clamp within 10 cm of the body, since cable-entry stress is the top seal-failure cause.
- Label and record all six pin assignments — mis-positioning is far more common than on 2- or 4-pin parts.
- Test before sealing — verify continuity and >100 MΩ insulation, then a brief spray test. Browse compatible sealed parts in our waterproof connector range.
Conclusion
In short, a reliable 6 pin waterproof connector comes down to five matched choices: the type (M12, M16/M23, GX, rectangular, or Mini-Fit), the IP rating for your environment, the per-pin current after derating, the shell and seal material, and a careful install. Confirm the pinout against the datasheet, torque the coupling correctly, and add strain relief, and the connector will carry power and data reliably through vibration, immersion, and years of service.
FAQ: 6 Pin Waterproof Connectors
Can a 6 pin waterproof connector carry three-phase power?
Yes. M16 or M23 6-pin circular connectors route compact three-phase plus PE and two control lines for servo and spindle motors. Always confirm the per-pin current and overall temperature rating suit the load; high-current three-phase setups often need an M23 shell with a ≥6 A per-contact rating.
What wire gauge fits an M12 6-pin connector?
A standard M12 6-pin connector typically accepts a cable of 4.0–8.0 mm outer diameter and conductors from 0.14 mm² (AWG 26) to 0.75 mm² (AWG 20) per pin. The higher-current M16 variant accepts conductors up to about 2.5 mm² (AWG 14). Match the grommet to the cable OD for the seal to work.
How do I verify the seal is intact after installation?
For critical installs, run a low-pressure air test: plug one end, apply 0.1–0.2 bar inside, and immerse for 30 seconds — no bubbles means the seal holds. Without compressed air, spray the assembly with a garden hose for 30 seconds from about 30 cm as a basic field check.
Can a 6 pin waterproof connector carry Ethernet?
It can carry slower data such as RS-485, CAN, or 100 Mbps signals on dedicated pins, but for gigabit or 10 Gbps Ethernet use a purpose-coded connector (for example a D- or X-coded M12). A generic 6-pin layout isn’t impedance-controlled for high-speed Ethernet.
What is the difference between IP67 and IP68 on a 6-pin connector?
Both are fully dust-tight; IP67 covers immersion to 1 m for 30 minutes, while IP68 covers continuous submersion at a manufacturer-defined depth. Choose IP67 for marine, automotive, and outdoor gear, and IP68 for ROVs, buried, or permanently submerged installations.
When should I move from a 6-pin to an 8- or 12-pin connector?
Stay with 6 pins when power plus up to four signals fits the job, since it’s smaller and cheaper. Move up to 8- or 12-pin when you need more independent signal lines, redundant grounds, or separate shielded pairs that won’t fit cleanly across six contacts.
